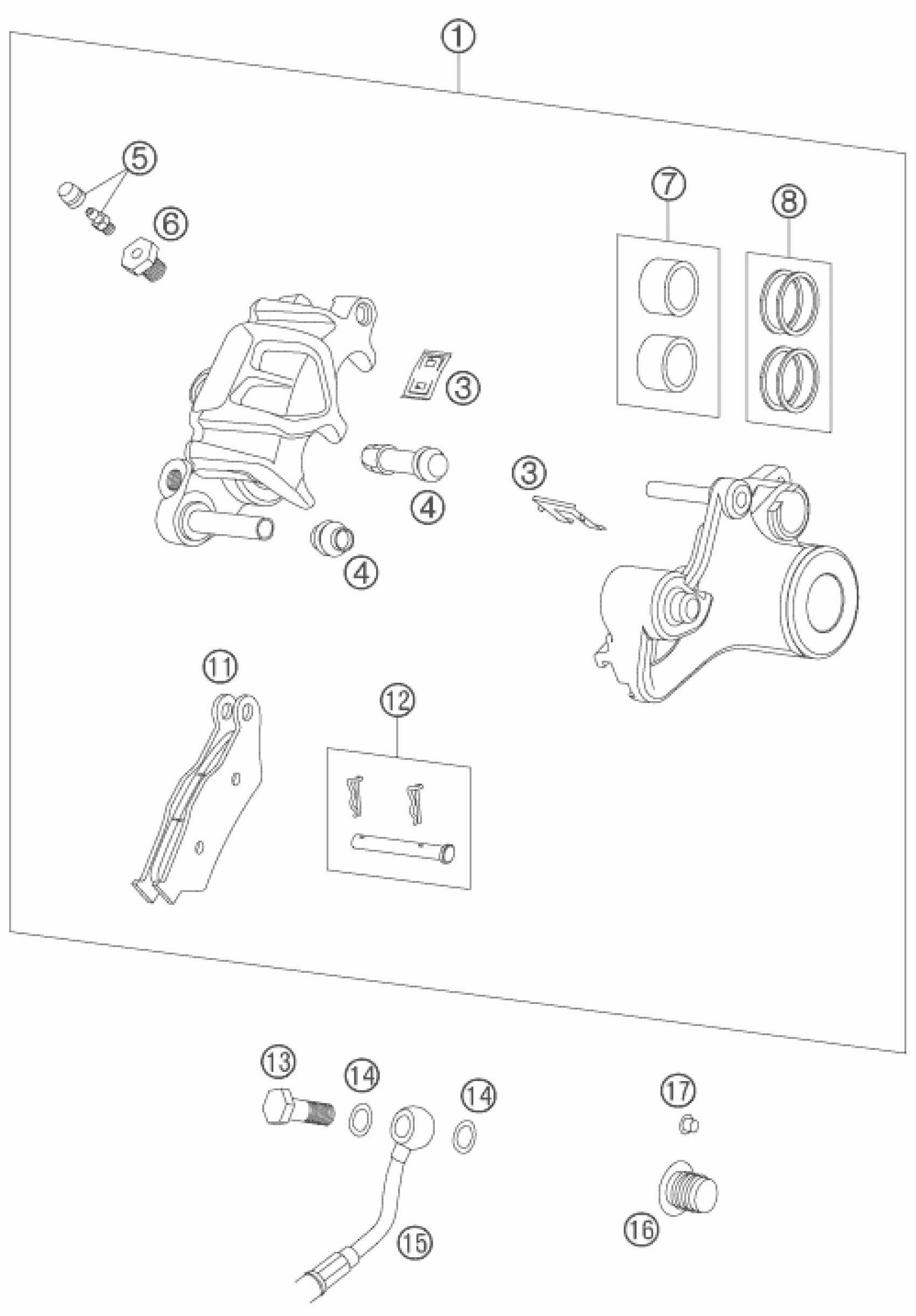

KTM 950 SUPERENDURO R 2007 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER REAR ''ID450FF06

60113080100

$265.87

3

RETAINING PLATE SET REAR 03

60013018100

$16.35

4

CUP SET SHORT

54613218000

$23.55

5

BLEEDER SCREW WITH CAP M6

60013020200

$7.00

6

ADAPTER SCREW

60013020100

$9.53

7

BRAKE PISTONS 05

60013083200

$64.13

8

REP.KIT SEALING RINGS

60013081000

$18.13

11

BRAKE PAD SET FERODO ID450FF

54613209244

$35.52

12

BOLT SET

60013017200

$25.98

13

HOLLOW SCREW M10X1X19

50213025000

$6.54

14

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

BRAKE HOSE REAR 03

60013072000

$117.71

16

PLUG SFL 22X1,8-3,5

61003089000

$2.05

17

PLUG ZK 8/5 06

60103088000

$1.49
