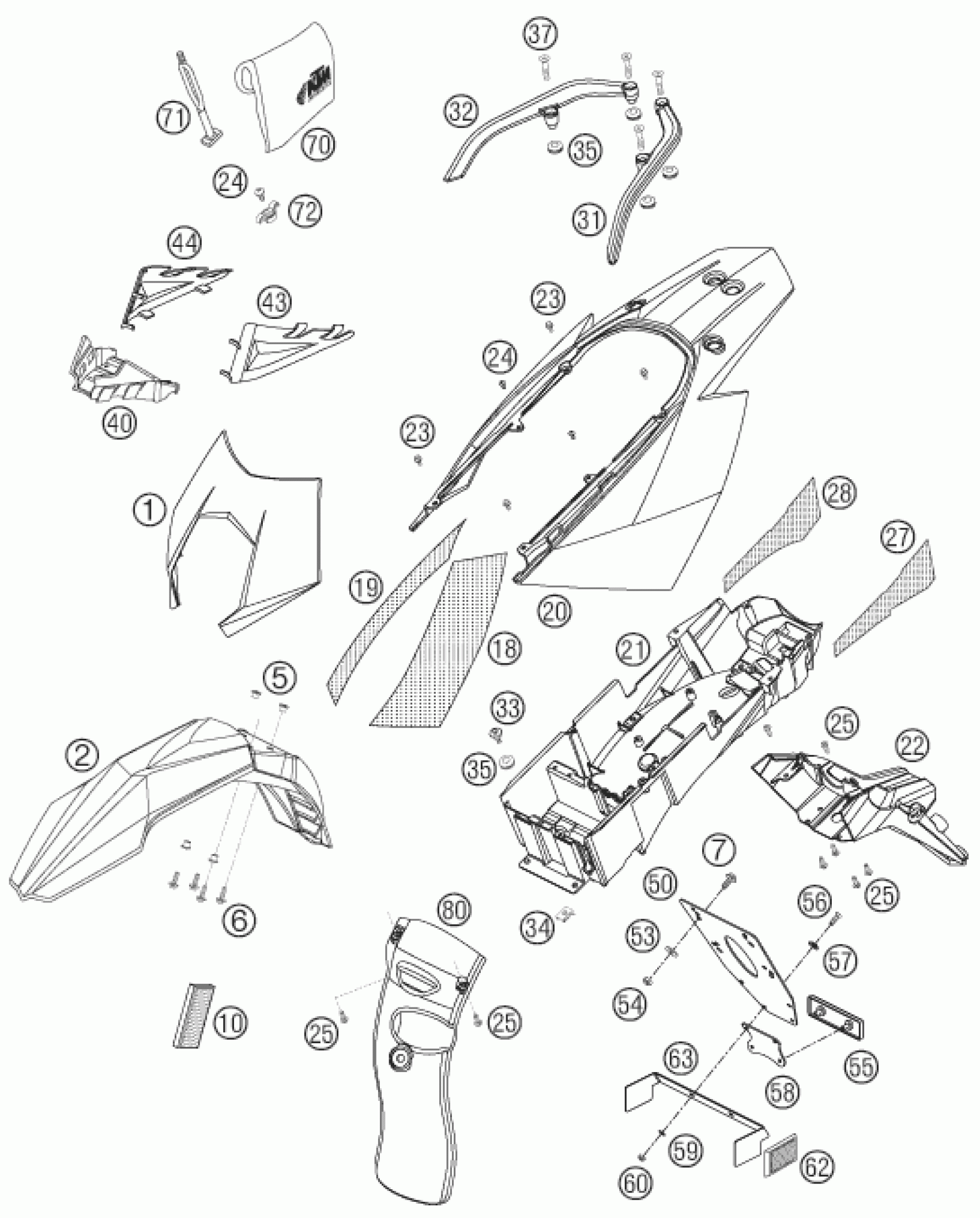

KTM 950 SUPERENDURO R 2007 MASK, FENDERS Diagram

#

Description
Price

1

HEAD LIGHT MASK BLACK 06

5860800100030B

Unavailable

2

FENDER FRONT ORANGE 06

6300801000004

Unavailable

5

SPACER BUSHING FRONT FENDER

58408009050

Unavailable

6

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

7

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

18

THERM. PROT.FOIL L/S ABOVE 07

62508018150

Unavailable

19

THERM.PROT.FOIL R/S ABOVE 07

62508018160

Unavailable

20

REAREND TOPPART BLK+DECAL 06

6250801800030B

Unavailable

21

REAR END LOWER PART 06

62508019200

Unavailable

22

NUMB.PLATE CARRIER 06

63008015000

Unavailable

23

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

24

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

25

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

27

THERMAL PROTECTON FOIL L/S 07

62508019250

Unavailable

28

THERMAL PROTECTON FOIL R/S 07

62508019360

Unavailable

31

HAND GRIP L/S 07

6301200800001S

Unavailable

32

HAND GRIP R/S 07

6301200900001S

Unavailable

33

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

34

clip nut M6

54603048100

Unavailable

35

RUBBER SLEEVE D=12MM

41001052000

Unavailable

37

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

Unavailable

40

SPLASH PROTECTOR FRAME 05

60003087000

Unavailable

43

COVER FRAME L/S REAR 05

62503083000

Unavailable

44

COVER FRAME R/S REAR 05

62503084000

Unavailable

50

license plate mouning plate

60012081200

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

55

REFLECTOR RED

58412080000

Unavailable

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

57

WASHER 6MM

40006006000

Unavailable

58

BRACKET FOR REFLECTOR

58412080050

Unavailable

59

WASHER DIN0125-A 5,3

0125050003

Unavailable

60

Self locking nut DIN 985 M5

0985050003

Unavailable

62

SIDE REFLECTOR RED REAR

16512180100

Unavailable

63

BRACKET SIDE REFLECTOR 06

62512081000

Unavailable

70

TOOL SET 950 SUPERENDURO 06

63029099000

Unavailable

71

RUBBER L=145MM

50303018000

Unavailable

72

SUPPORT TOOL SET 05

62508021000

Unavailable

80

SPLASH PROTECT. 06

63006010000

Unavailable
