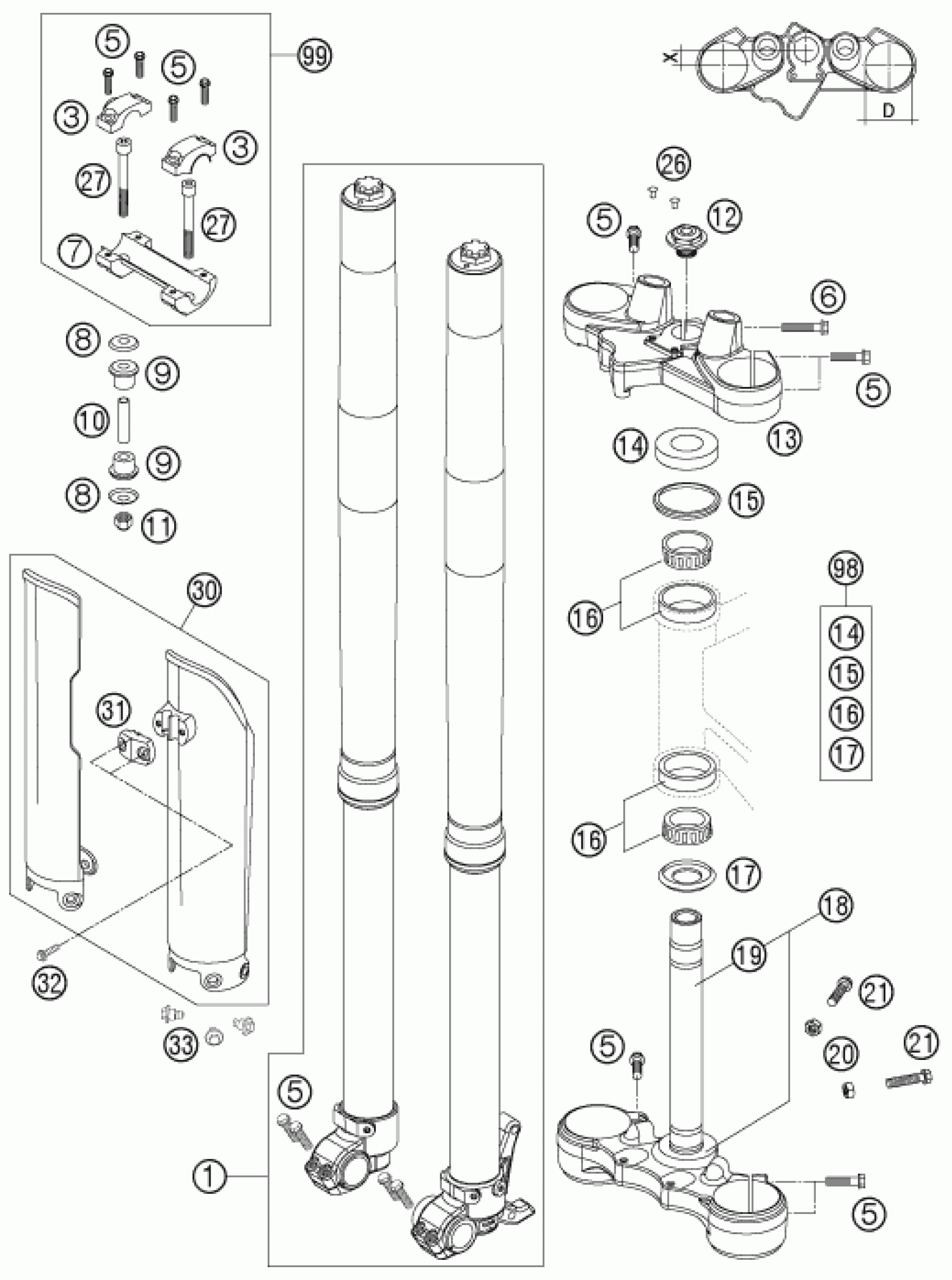

KTM 950 SUPERENDURO R 2007 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FRONT FORK WP SUPERENDURO 07

14187C32

Unavailable

3

HANDLEBAR CLAMP 28MM 07

5900103830001S

$27.76

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

7

HANDLEBAR SUPPORT 28MM 07

5900103920001S

$147.25

8

washer 10.5x32x2

56401042000

$4.11

9

rubber bushing

56401040000

$5.23

10

SPACER TUBE 10,2X12X44

56401041100

$5.88

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

12

STEER.HEAD SCREW M20x1,5 SW=27

54801036200

$14.58

13

TOP TRIPLE CLAMP X=20MM D=54MM

6000103402001S

$183.53

14

STEERING HEAD COVER 05

61001086000

$13.92

15

STEARING HEAD GASKET TOP

54601184000

$7.10

16

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

17

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

18

BOTTOM TRIPLE CLAMP CPL D=60MM

6000103202001S

$223.93

19

FORK TUBE LC8 ADV 03

60001033000

$65.16

20

Hexagon nut DIN934 M8

0934080003

$2.05

21

HH SCREW DIN0933-M 8X25

0933080253

$2.05

26

PLUG ZK 8/5 06

60103088000

$1.49

27

AH SCREW DIN6912-M10X70

0984100703

$7.00

30

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20

31

CLAMP F.SPEED CABLE D=8MM 2001

58201085000

$1.82

32

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

33

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

99

HANDLEBAR SUPPORT KIT

00050000922

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
