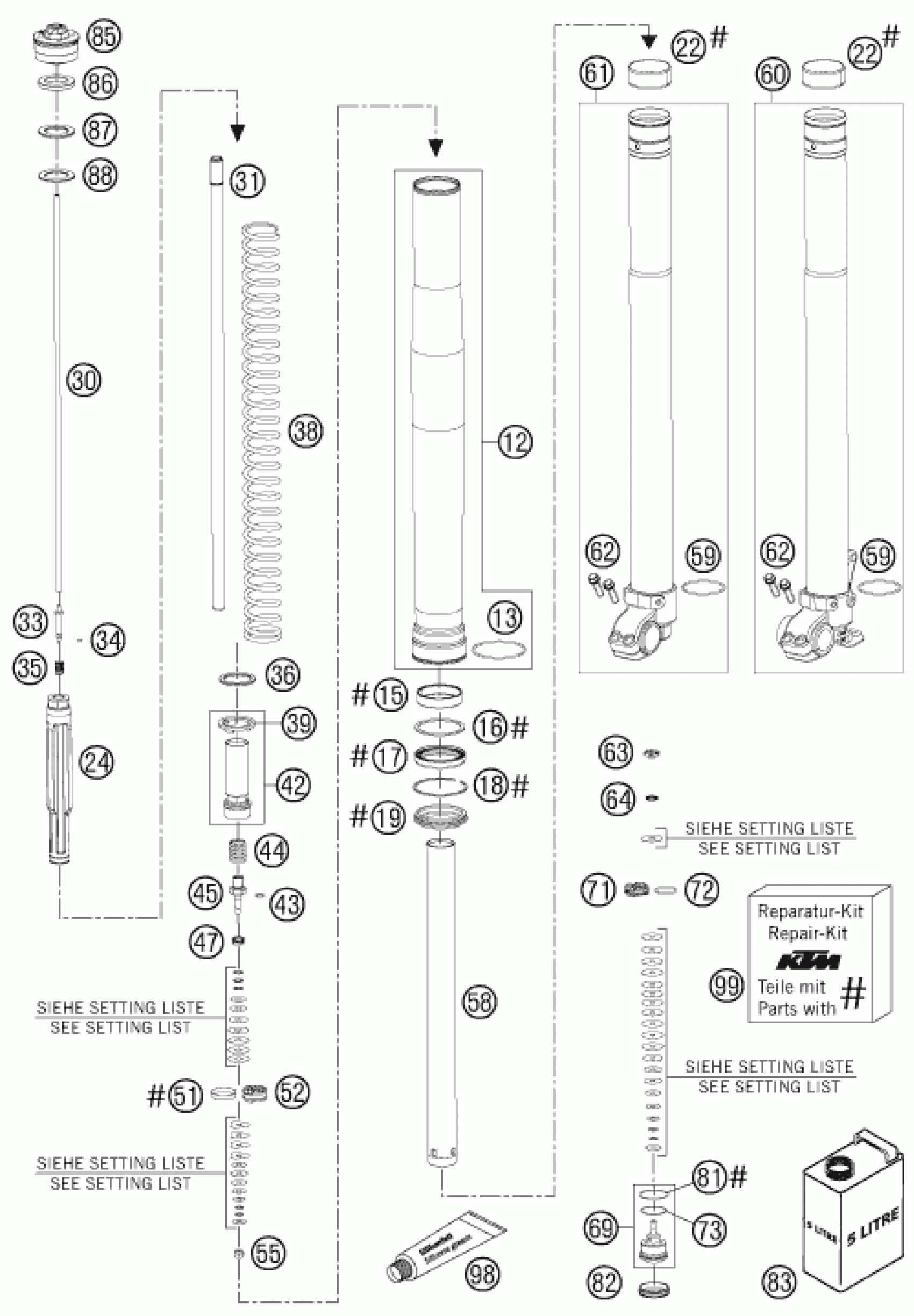

KTM 950 SUPERENDURO R 2007 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

12

OUTER TUBE L=610MM D=54/60 2L

48600553E

$383.88

13

Round-wire snap ring 48x2

48600016

$3.08

15

DU-BUSH D48XD52X12DDL02

48600429

$12.05

16

Supportwasher 50x57,6x1,5

48600013

$3.08

17

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST CAP D=48 58,4X11,8

48600400

$12.80

22

DU-BUSH D47XD49X20DDL02

48600428

$12.05

24

HYDR.STOP L=200MM D=31,9 CPL

48600241S1

$38.64

30

ADJUSTMENT TUBE L=467MM 06

48600143

$10.96

31

PISTON ROD D=14 M11X1 L=501

48600538

Unavailable

33

Needle 6x42,6 rebound

48600189

$34.68

34

O-ring 3x1,5 NBR70

48600046

$1.49

35

Spring (7,2) 4-23 needle

48600033

$5.23

36

Preload bush 26,5x42x5

48600037

$4.11

38

SPRING 5,9 N/MM SET D=5,5MM

91410045S

$131.94

39

Spring retainer 33,5x43x3

48600021

$16.73

42

Screw sleeve M29,3x1 cpl.

48600196S

$82.08

43

O-ring 8x1,25 NBR70 siliconize

48600239

$1.49

44

Spring (15) 12-34,5 rebound

48600403

$31.71

45

Tap 6x45 rebound

48600203

$8.37

47

Spring (11,7) 1,5-8 valve

35480377

$2.05

51

Pistonring 26x28x5

48600060

$5.23

52

Piston 6,05x27,65x12 rebound

48600042

$11.78

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

TUBE 28X29,3X1 L=435 ALU D=8,5

48600537

$87.86

59

O-ring 46x2 NBR70 siliconized

48600048

$3.08

60

AXLE CLAMP L/S + TUBE CPL. 07

48600534S1

Unavailable

61

AXLE CLAMP R/S + TUBE CPL. 07

48600238S2

Unavailable

62

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

TAP COMPRESSION CPL. 03

48600152S1

$37.67

71

Piston 6x27,8x9 compression

48600047

$9.81

72

O-ring 21x2 NBR70

46811499

$1.49

73

O-ring 24x2 NBR70

35480320

$1.49

81

Copper disc 29,5x33,5x1

48600004

$4.11

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE5 5L 2005

48600401S1

$149.59

85

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

$127.99

86

Preload bush 26,5x42x1,5

48600053

$4.11

87

Preload bush 42x26,5x2,5

48600036

$2.05

88

Preload bush 26,5x42x10

48600038

$3.08

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR-KIT EXC FRONT FORK06/07

R14013

$106.21
