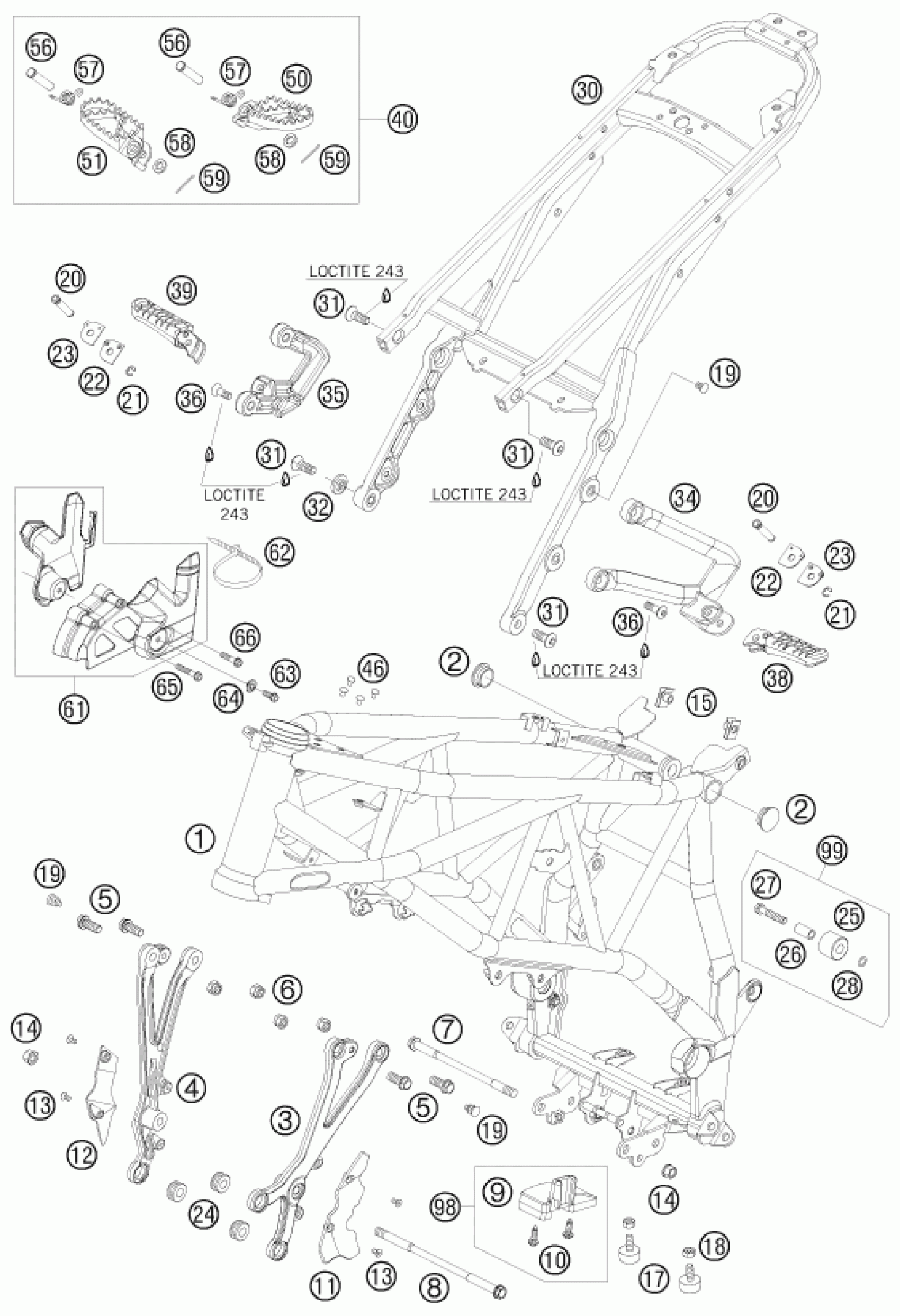

KTM 950 SUPERENDURO R 2007 FRAME Diagram

#

Description
Price

17

BUMP RUBBER M8X25MM

58303070100

$5.88

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

PLASTIC CAP SFL10

54403135000

$2.05

24

RUBBER SLEEVE 03

60003098000

$4.11

15

RANGE CHANGE METAL NUT M8

54603048000

$4.11

1

FRAME ''FE06'' 950 SE

6300300100004

$2,793.61

3

ENGINE SUPPORT L/S 07

6250300500001S

$87.49

4

ENGINE SUPPORT R/S 07

6250300600001S

$87.49

5

HH COLLAR SCREW M10X24 WS=13

0015100243

$2.05

6

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

7

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

8

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

9

CHAIN SLIDING BLOCK 05

60004076100

$8.78

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

11

COVER ENGINE SUPPORT LEFT 05

62503005050

$5.97

12

COVER ENGINE SUPPORT RIGHT 05

62503006050

$5.97

13

Flat head screw DIN7991 M5X10

0991050102

$2.05

14

COLLAR NUT M10 WS=13

54630044000

$1.49

25

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

26

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

27

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

28

LOCK WASHER 8MM

36003014000

$2.05

30

SUB FRAME 07

6250300210092

$451.84

31

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

$4.11

32

COLLAR BUSHING 10X15X25X4 03

60003001051

$6.07

40

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

46

PLUG ZK 8/5 06

60103088000

$1.49

50

FOOT PEG L/S SILVER 02

59003040250

$43.66

51

FOOT PEG R/S SILVER 02

59003041250

$43.66

56

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

57

FOOTREST SPRING L/S & R/S

54603041000

$5.23

58

washer DIN 125 A 10.5

0125100003

$2.05

59

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

61

FRAME PROTECTION SET 06

63003094000

$13.94

62

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

63

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

64

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

65

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

66

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

2

PLUG SFL28 05

61003088000

$2.05

20

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

21

retaining washer DIN 6799 - 6

0799060003

$1.49

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

34

FOOTREST BRACKET REAR L/S 07

6250304800001S

$103.24

35

FOOTREST BRACKET REAR R/S 07

6250304900001S

$97.51

36

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

38

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

39

Footrest cmpl. r/s rear 03

60003051000

$61.89

99

CHAIN ROLL KIT 06-13

58403060010

$12.52

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable
