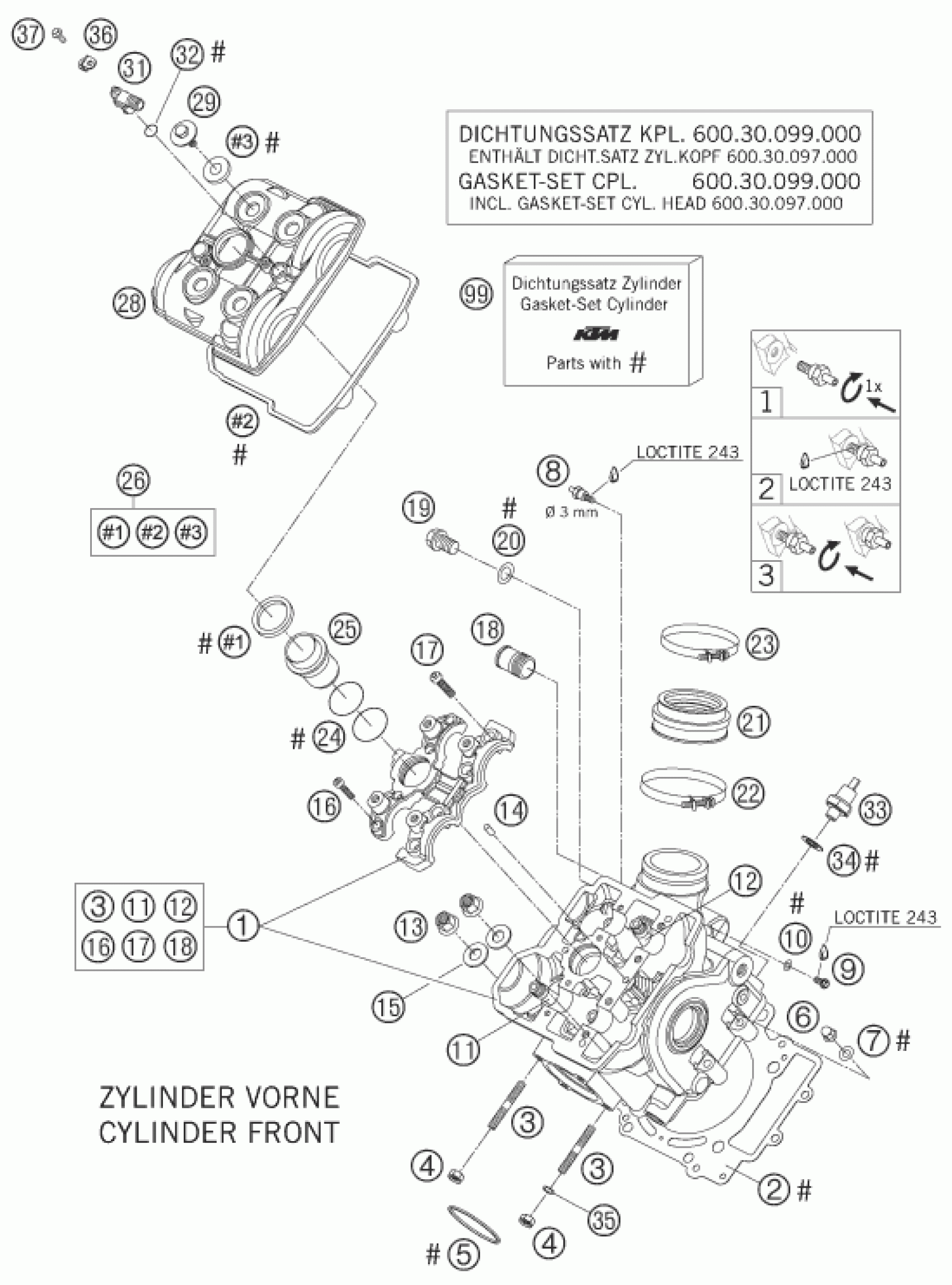

KTM 950 SUPERENDURO R 2007 CYLINDER HEAD FRONT Diagram

#

Description
Price

1

CYLINDER HEAD CPL. FRONT 05

62536020044

Unavailable

2

CYLINDER HEAD GASKET 0,5 101MM

60030036000

Unavailable

3

STUD DIN0835-M 8X25 10.9

0835080256

Unavailable

4

self-locking nut M8 Cu

51010086100

Unavailable

5

GASKET 03

60005005000

Unavailable

6

CAP NUT M6 DIN1587 02

0587060000

Unavailable

7

WASHER DIN0125-A 6,4

0125060003

Unavailable

8

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

10

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

11

VALVE GUIDE EXHAUST 03

60036026000

Unavailable

12

VALVE GUIDE INTAKE 03

60036025000

Unavailable

13

hex collar nut M10 WS13

60036078200

Unavailable

14

needle roller DIN 5402 5x9.8

0402050980

Unavailable

16

AH SCREW DIN0912-M 6X25 10.9

0912060255

Unavailable

17

AH SCREW DIN7984-M 8X30 10.9

0984080305

Unavailable

15

SHIM 10,2X19X1,5MM 05

60036078050

Unavailable

18

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

19

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

20

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

21

INTAKE BOOT 03

60036044000

Unavailable

22

HOSE CLAMP GEMI 62 MM 03

60036047100

Unavailable

23

HOSE CLAMP GEMI 56MM 03

59030061100

Unavailable

24

O-RING 29,87X1,78 VITON

0770298178

Unavailable

25

INSERT SPARK-PLUG SHAFT LC8 03

60036075000

Unavailable

26

VALVE COVER GASKET SET FR+RR

60036099000

Unavailable

28

VALVE COVER FRONT SM 05

60036252000

Unavailable

29

collar screw M 6 WS=10 03

60036052020

Unavailable

31

ANGLE CONNECTOR LC8 03

60038082000

Unavailable

32

O-RING 8X2 SILICONE

0770080020

Unavailable

33

OIL-PRESSURE SWITCH LC8 04

60038091100

Unavailable

34

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

35

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

36

ANGLE CONNECTOR BRACKET PANEL

60038082050

Unavailable

37

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

99

GASKET SET CYL. HEAD KPL. 03

60030097000

Unavailable
