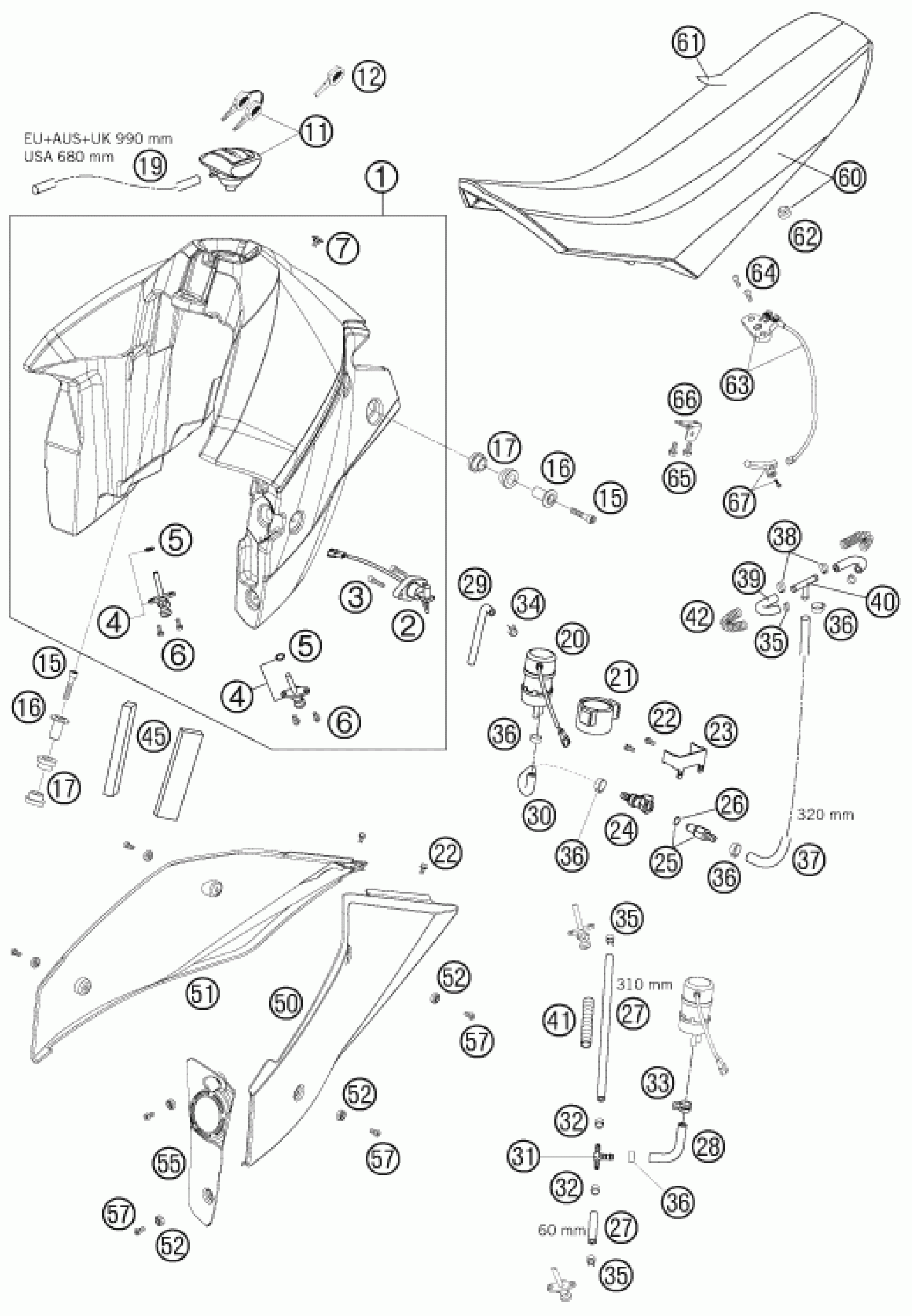

KTM 950 SUPERENDURO R 06 <2006> TANK, SEAT Diagram

#

Description
Price

3

AH collar screw DIN 912 M5x16

0912050163

$1.49

4

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

5

O-RING 11X1,8 NBR 70

55007006200

$2.05

6

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

7

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

11

TANK PLUG 06

58407008200

$106.86

12

KEY BLANK LC4/DUKE/LC8

40011166100

$16.07

15

AH collar screw DIN0912 M8x40

0912080403

$2.05

16

collar bushing, bearing, outsi

61007060000

$9.90

17

collar bushing, front tank hol

61007065000

$7.85

19

HOSE NBR 5,4X9,4 PER METER

60007026001

$7.10

20

FUEL PUMP 04

60012088100

$189.54

21

FUEL PUMP HOLDER 03

60012088050

$14.72

22

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

23

SUPPORT FUEL PUMP 05

62512071000

$5.64

24

Clutch CPC PLCD17005, black

5850701050030

$55.90

25

Plug CPC black 05

5850701030030

$43.28

26

O-ring VITON f. plug CPC 0

58507012000

$6.26

27

HOSE 6X12 PER METER

60007116001

Unavailable

28

FUEL HOSE 05

62507016070

$14.67

29

FUEL PREFORMED HOSE SX 2001

50307016000

$8.87

30

FUEL HOSE 05

62507016060

$9.62

31

T-CONNECTOR 6-6-8 MM 05

60007015100

$3.48

32

VARIABLE ONE-EAR CLAMP 13,3MM

00050133706

$3.08

33

CLAMP STD DN14

00049140121

$1.49

34

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

35

CLAMP YDNAC 10128 12MM

58031005000

$3.08

36

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

$5.23

37

HOSE 7,5X13,5 PER METER

60007016001

Unavailable

38

VARIABLE ONE-EAR CLAMP 14,0MM

00050140706

$2.05

39

FUEL PREFORMED HOSE 03

60007016000

$10.39

40

T-CONNECTOR 8MM 03

60007015000

$5.73

41

THERMAL PROTECTION L=105MM 05

62507016050

$6.54

42

PROTECTION SPRING FUEL HOSE

60007016050

$1.49

66

BRACKET FOR SEAT LOCK 06

63008053000

$6.80

67

SEAT LOCK LEVER CPL. 05

58607051000

$8.89

50

SPOILER L/S ORANGE 06

6300805000004

$29.58

51

SPOILER R/S ORANGE 06

6300805100004

$29.57

52

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

55

TANK COVER L/S 06

63008070000

$4.37

57

AH SCREW DIN6912 M6X12

0012060123

$2.05

60

SEAT BLACK/ORANGE 06

6300704000004

$150.34

61

SEAT COVER BLACK/ORANGE

6300704005004

$52.61

62

DISTANCE RUBBER SEAT 05

61007040010

$3.08

63

SEAT LOCK 06

63007050044

$33.48

64

BHCS ISO 7380 M6X18

0738060181

$2.05

65

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

45

FOAM 150X35X15 06

62507033000

$9.67

1

FUELTANK CPL.14L BLACK MATT 06

6300701303333A

$597.67

2

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31
