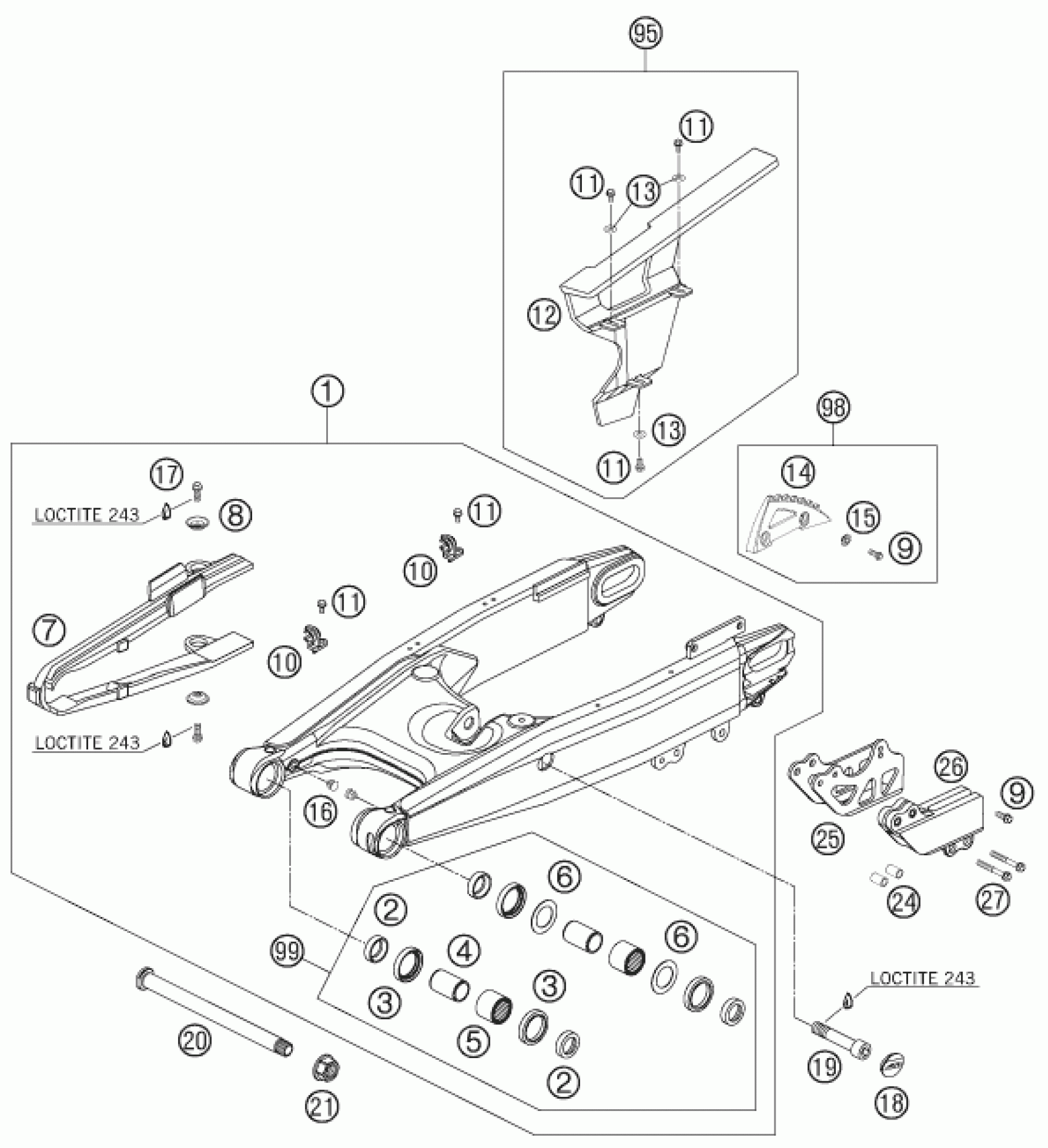

KTM 950 SUPERENDURO R 06 <2006> SWING ARM Diagram

#

Description
Price

24

BUSH 6,5X10X22MM

54607072100

$2.06

14

REAR SPROCKET GUARD 03

60004075000

$4.01

2

Bucket f. shaft seal ring 03

60004034000

$8.03

3

Radial shaft seal 30X40X7

0760304073

$4.11

4

INNER RING JR20X25X38,5 03

60004032000

$18.13

1

SWING ARM CPL. 950 SE 06

63004030044

Unavailable

16

PLUG SFL12 GREY 05

60004042000

$1.49

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

$2.05

5

NEEDLE BUSH HK2526B 03

60004031000

$10.65

6

Stop disk 03

60004033000

$2.05

7

CHAIN SLID. GUARD SWINGARM06

63004066000

$27.48

8

BUCKET

72210079000

$3.00

9

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

11

SPECIAL SCREW M 5,0X10

0009050103

$2.05

12

CHAINGUARD 06

60004061100

$11.59

13

washer DIN 9021 A - 5.3

0021050003

$1.49

15

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

18

PLUG SWINGARM 03

60004041000

$6.72

19

SCREW M14X1,5 L=73MM 03

60004017000

$5.23

20

SWING ARM BOLT 272,5MM 06

63004037144

$64.66

21

COLLAR NUT M19X1,5 WS=27MM

60004038000

$17.94

25

RETAINING PLATE CPL.

54607070144

$31.41

26

CHAIN GUIDE 06

63004070000

$15.04

27

HH COLLAR SCREW M 6X50 WS=8

0015060503

$3.08

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

95

CHAIN PROTECTION KIT ADV 07-12

60004060010

Unavailable

98

SPROCKET GUARD KIT

60004075010

Unavailable

99

SWINGARM REP. KIT

60004230010

Unavailable
