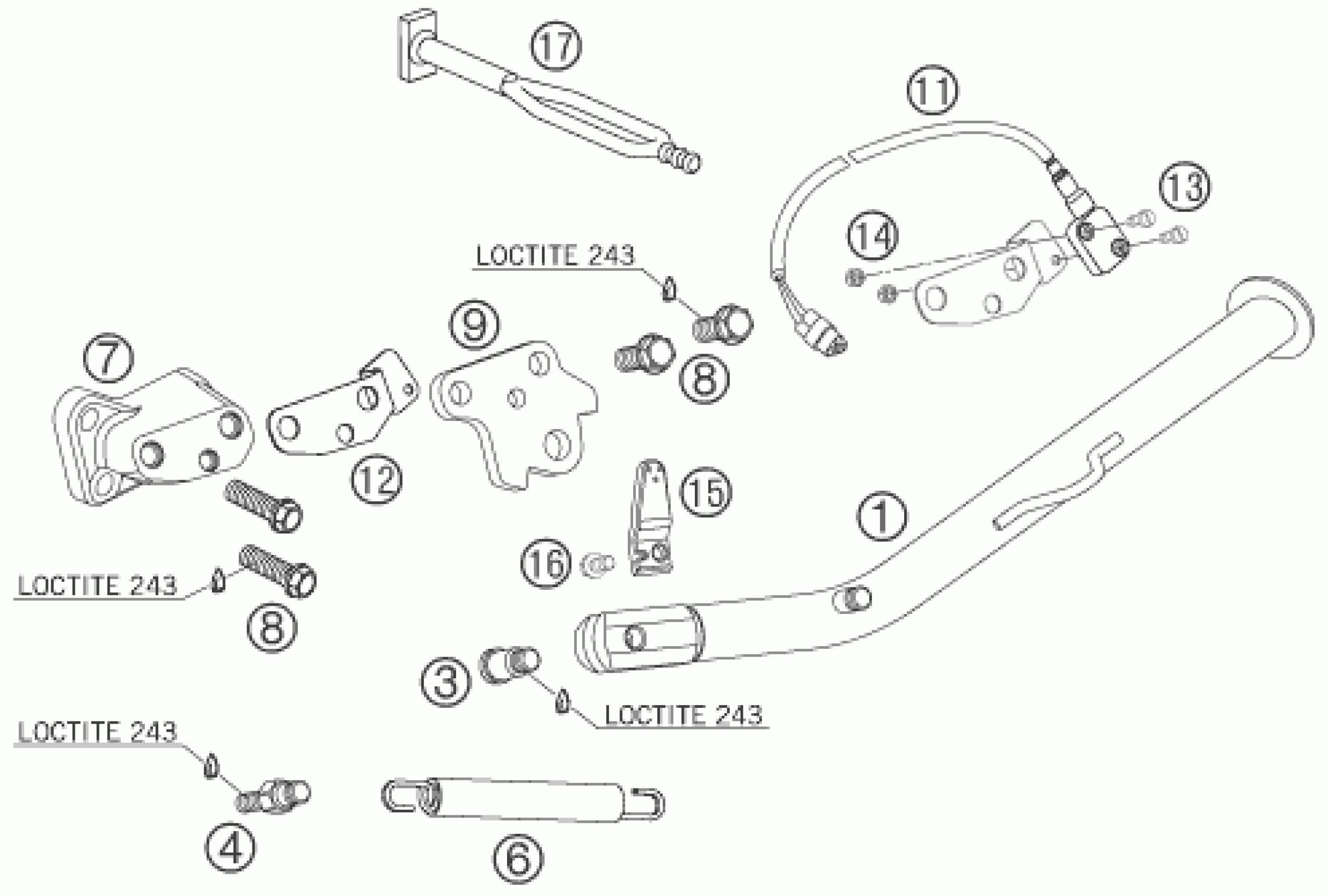

KTM 950 SUPERENDURO R 06 <2006> SIDE / CENTER STAND Diagram

#

Description

Price

1

SIDE STAND L=349MM SE 06

6300302300030

Unavailable

3

SCREW F. SIDE STAND M10X31,2

62503027100

Unavailable

4

SCREW SIDE STAND SPRING 05

61003028001

Unavailable

6

SPRING L=116 MM 05

61003024000

Unavailable

7

SIDE STAND BRACKET 03

60003026000

Unavailable

8

HH COLLAR SCREW M10X30 WS=13

0015100303

Unavailable

9

SIDE STAND PICKUP 06

60103028000

Unavailable

11

Side stand sensor

61011045000

Unavailable

12

SUPPORT F.SIDE STAND SWITCH 06

60103029000

Unavailable

13

CYL.HEAD SCREW DIN84A M4x12

0084040123

Unavailable

14

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

15

MAGNET HOLDER ADV. 06

60103029050

Unavailable

16

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

17

RUBBER L=145MM

50303018000

Unavailable
