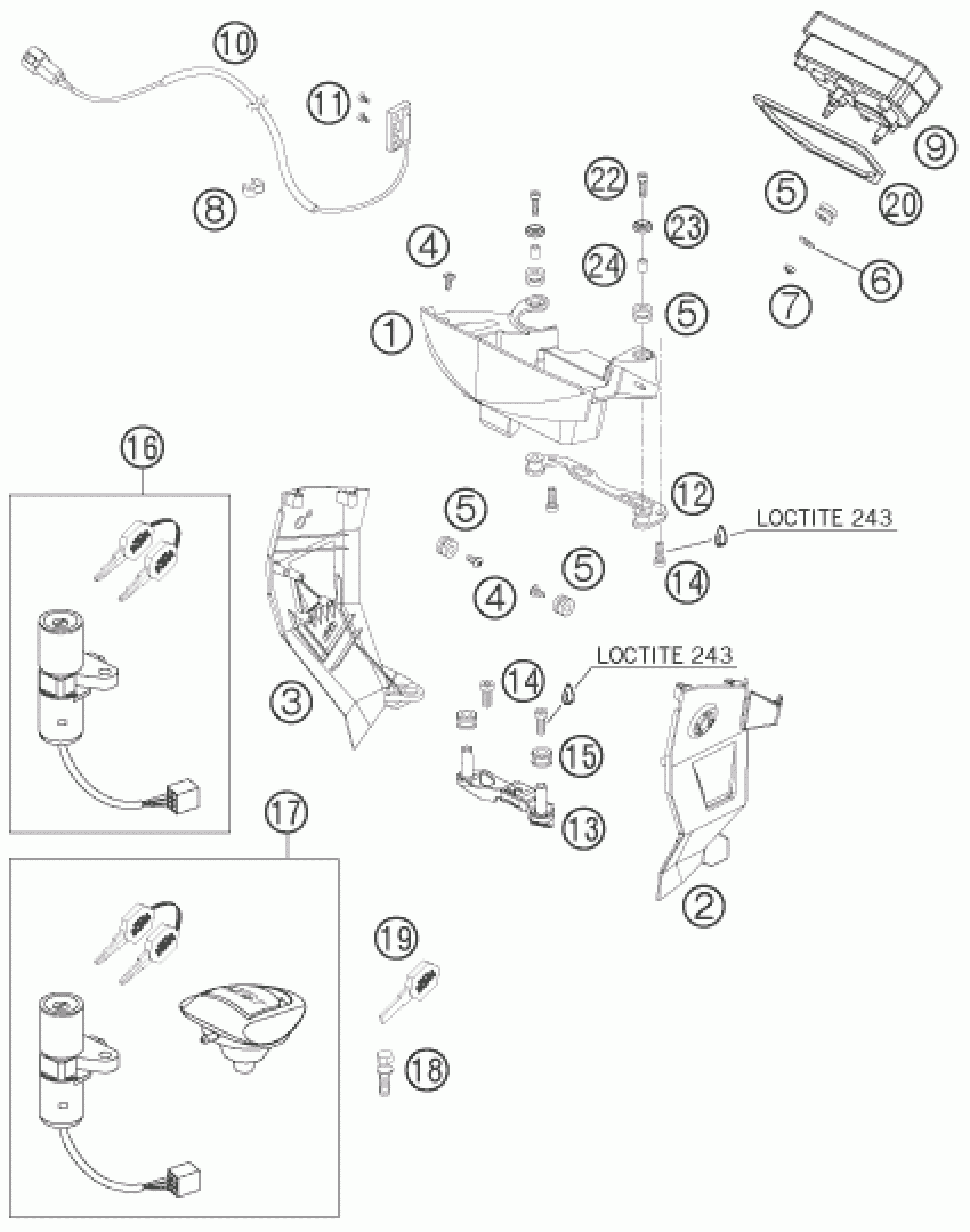

KTM 950 SUPERENDURO R 06 <2006> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER BRACKET 05

62514061000

Unavailable

2

MASK BRACKET L/S 06

63014062000

Unavailable

3

MASK BRACKET R/S 05

62514063000

Unavailable

4

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

6

washer DIN 9021 A - 5.3

0021050003

Unavailable

7

Self locking nut DIN 985 M5

0985050003

Unavailable

9

DIGITAL SPEEDOMETER 05

61014069000

Unavailable

10

SPEEDOMETER SENSOR 06

60014069150

Unavailable

11

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

13

MASK SUPPORT BOTTOM 06

63014064000

Unavailable

14

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

15

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

16

IGNITION LOCK 99

58411066100

Unavailable

17

LOCK SYSTEM 06

58411066344

Unavailable

18

TAMPERPROOF SCREW F. IGN. LOCK

60011064000

Unavailable

19

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

20

DAMPING RING TACHOMETER 03

60014068000

Unavailable

22

AH SCREW DIN6912 M6X25

0984060252

Unavailable

23

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

24

SPACER BUSHING 6,2X7,5X10,3 05

62514037000

Unavailable

8

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MASK BRACKET TOP 06

63008003000

Unavailable
