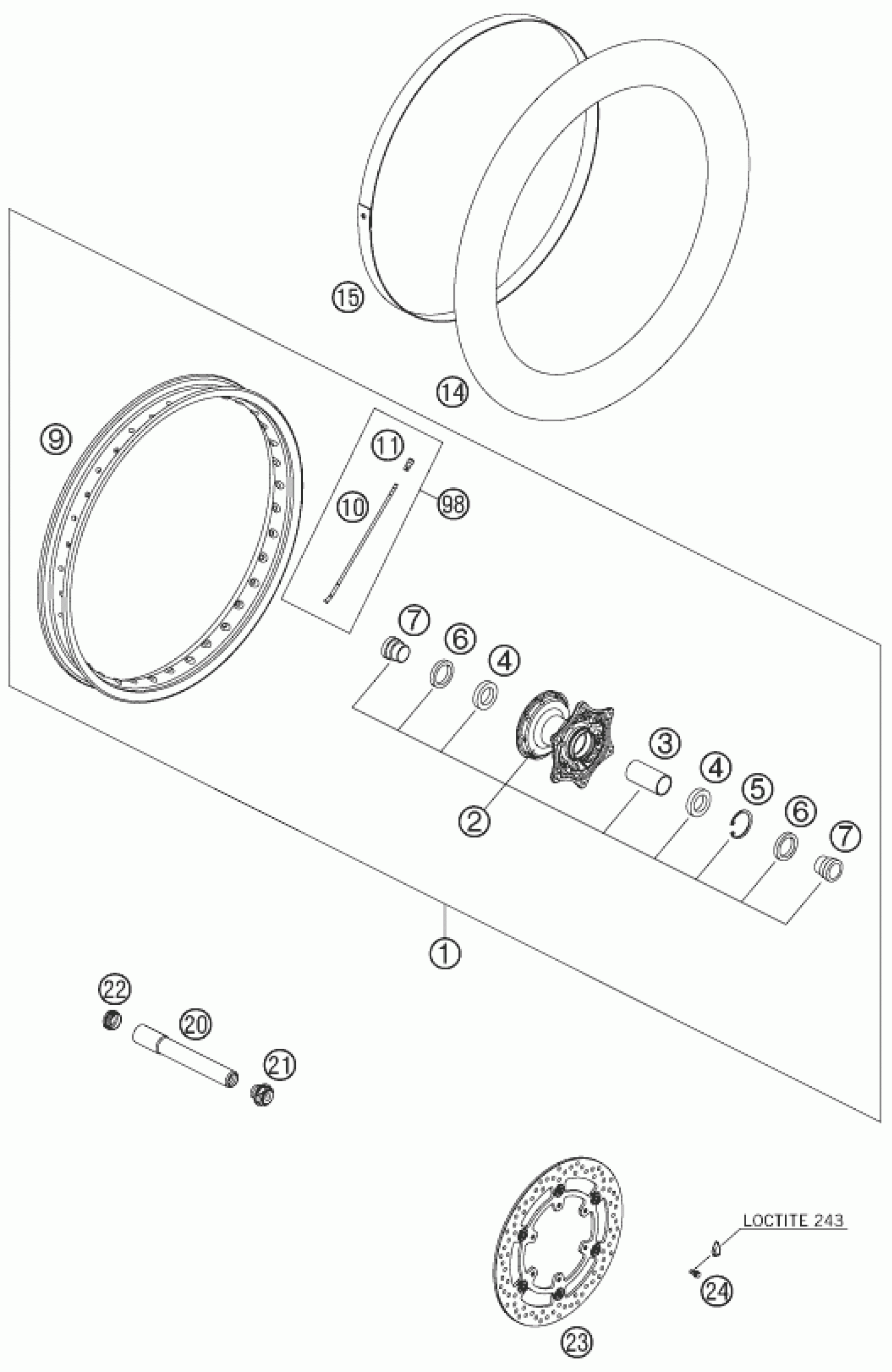

KTM 950 SUPERENDURO R 06 <2006> FRONT WHEEL Diagram

#

Description
Price

2

FRONT HUB CPL. 06

63009010044

Unavailable

3

BEAR. SPACERTUBE FRONT 03

60009014000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSH. FRONT WHEEL 06

63009012000

Unavailable

9

FRONT RIM 1,85X21''DIRT STAR 0

6300907000030

Unavailable

10

SPOKE M5X230,5 13,5 DEG

60009071000

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

14

Hose 21"

50309075000

Unavailable

15

RIM BAND FRONT 2MM 2003

58409073100

Unavailable

20

WH SPIN.FR. D=26 M24X1,5 03

54809081000

Unavailable

21

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

23

BRAKE DISK FRONT 300MM 06

60109060000

Unavailable

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

22

PLUG BUSHING WS=27 03

54809081050

Unavailable

1

FRONT WHEEL CPL. 1,85X21'' 0

6300900104430

Unavailable

98

SPOKE KIT FRONT ''21''

00050000913

Unavailable
