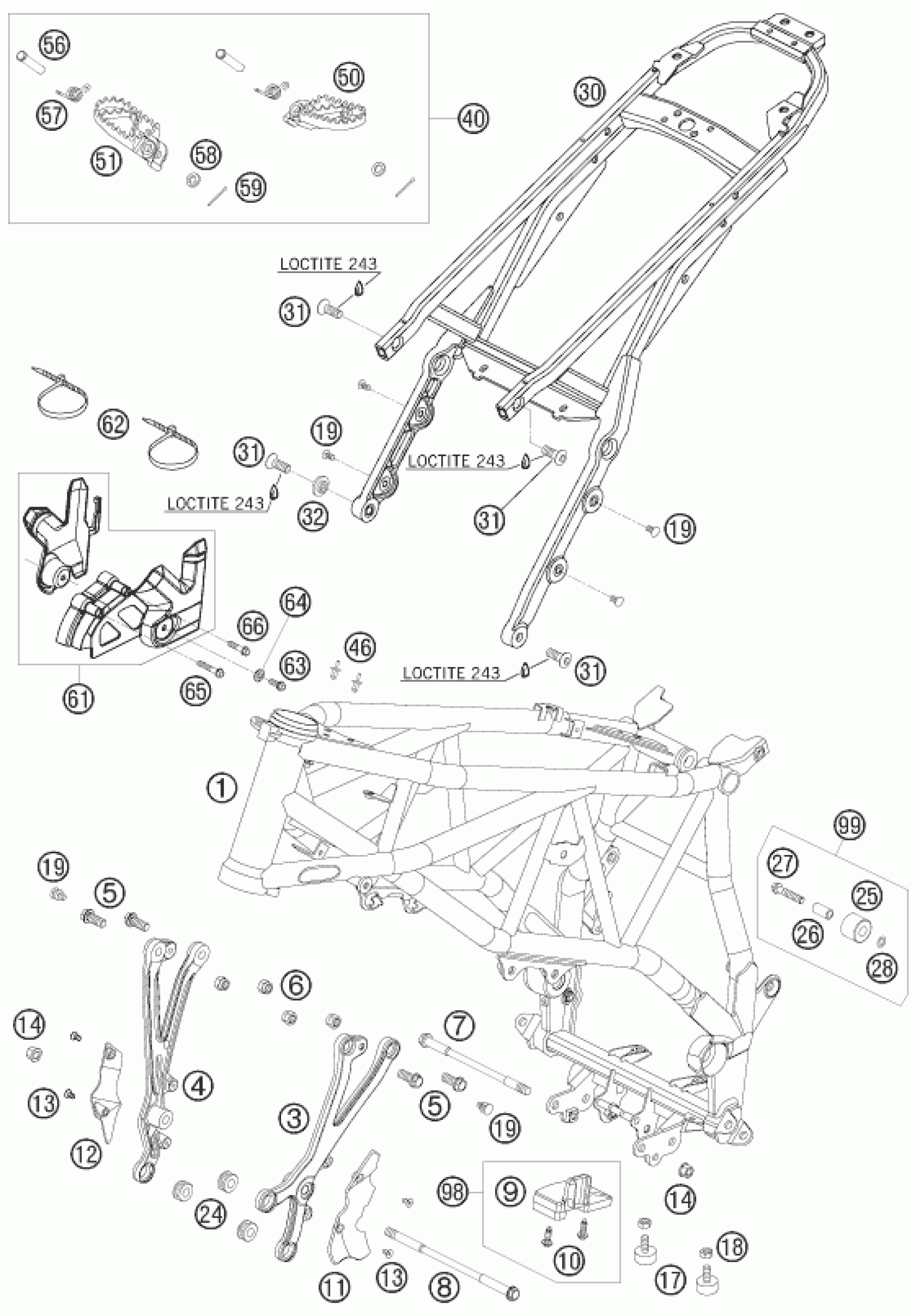

KTM 950 SUPERENDURO R 06 <2006> FRAME Diagram

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

FRAME PROTECTION SET 06

63003094000

$13.94

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

COVER ENGINE SUPPORT LEFT 05

62503005050

$5.97

COVER ENGINE SUPPORT RIGHT 05

62503006050

$5.97

Flat head screw DIN7991 M5X10

0991050102

$2.05

FRAME ''FE06'' 950 SE

6300300100004

$2,793.61

HH COLLAR SCREW M10X24 WS=13

0015100243

$2.05

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

CHAIN SLIDING BLOCK 05

60004076100

$8.78

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

COLLAR NUT M10 WS=13

54630044000

$1.49

RUBBER SLEEVE 03

60003098000

$4.11

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

LOCK WASHER 8MM

36003014000

$2.05

SUB FRAME 06

62503002100

$458.29

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

$4.11

COLLAR BUSHING 10X15X25X4 03

60003001051

$6.07

PLASTIC CAP FOR M6 03

60003088000

$1.49

FOOT PEG L/S SILVER 02

59003040250

$43.66

FOOT PEG R/S SILVER 02

59003041250

$43.66

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOTPEG L.+R. CPL. 03

5030314013390

$167.45

PLASTIC CAP SFL10

54403135000

$2.05

ENGINE SUPPORT LEFT 05

62503005000

$93.03

ENGINE SUPPORT RIGHT 05

62503006000

$78.40

CHAIN SLIDING KIT BELOW

60004076110

Unavailable

BUMP RUBBER M8X25MM

58303070100

$5.88

Hexagon nut DIN934 M8

0934080003

$2.05

CHAIN ROLL KIT 06-13

58403060010

$12.52
