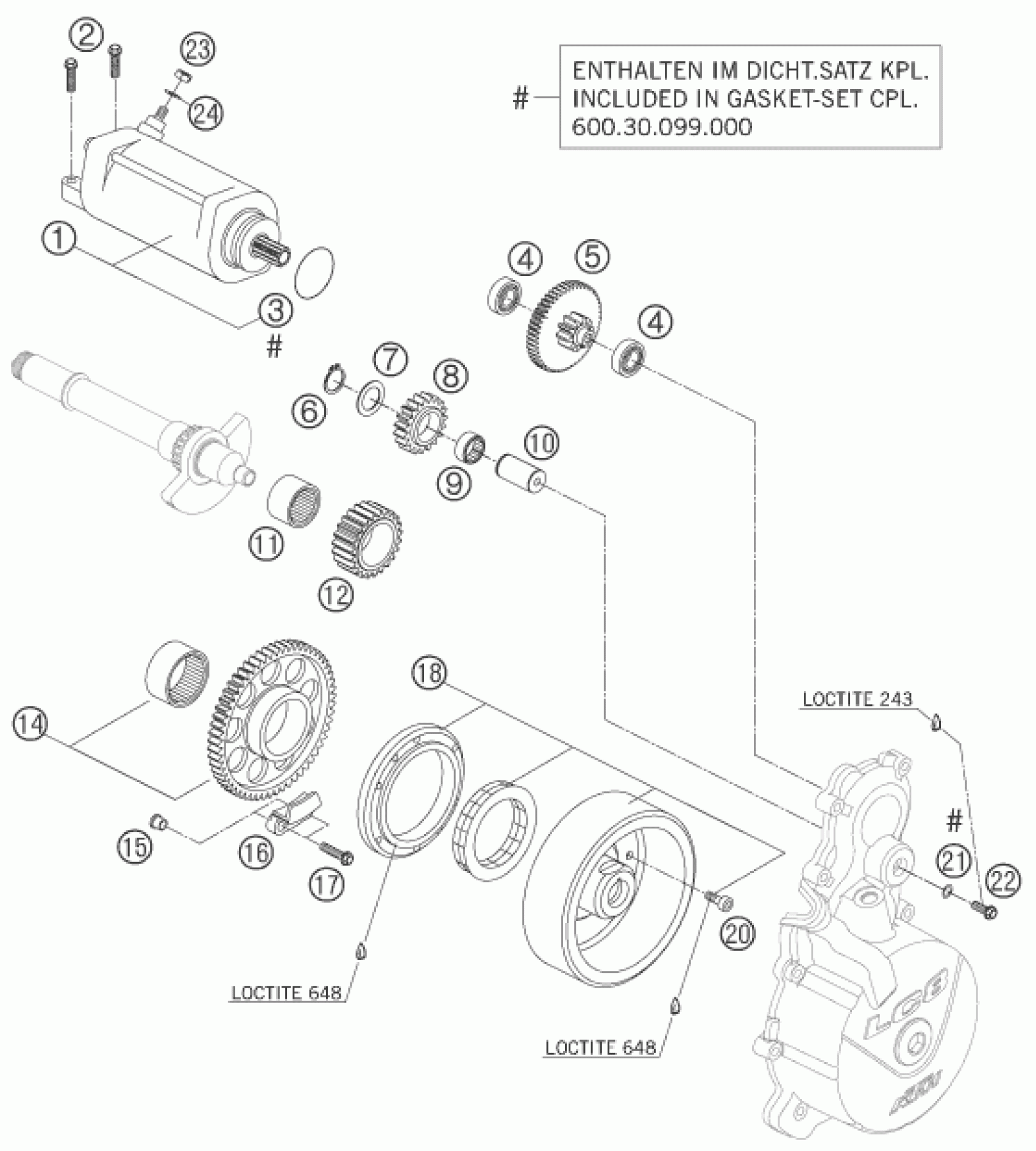

KTM 950 SUPERENDURO R 06 <2006> ELECTRIC STARTER Diagram

#

Description
Price

1

E-STARTER ENGINE CPL. LC8-E 03

60040001000

$360.53

2

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

3

O-RING 33,5X3 VITON

0770335030

$5.23

4

GROOV.BALL BEAR. 16001 JRX C3

0625160011

$12.15

5

DOUBLE GEAR W.CPL.49-T/10-T 03

60040015000

$45.26

6

CIRCLIP DIN0471-17X1

0471170010

$2.05

7

STOP DISC 17,2X26X1 B

50333041000

$3.08

8

IDLER GEAR 19-T 03

60040022119

$40.20

9

NEEDLE BEARING K 17X21X10

0405172110

$12.71

10

BEARING BOLT 17X33 03

60040023000

Unavailable

11

NEEDLE BUSH HK2520 25/32/20 02

0618253220

$9.72

12

IDLER GEAR 2 23-T 03

60040022023

$38.42

14

FREEWHEEL GEAR WH. 57-T CPL.03

60040020000

$152.58

15

SUPPORTING SLEEVE 03

60040027050

$6.35

16

FREEWHEEL HOLDER 03

60040027000

$5.79

17

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

18

IGNITION ROTOR 04

60039005100

$818.68

20

AH SCREW DIN6912 M6X16 10.9

0984060166

$5.32

21

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

22

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

23

Self lock. nut DIN985-M6-A2

0985060003

$2.05

24

WASHER DIN0125-A 6,4

0125060003

$1.49
