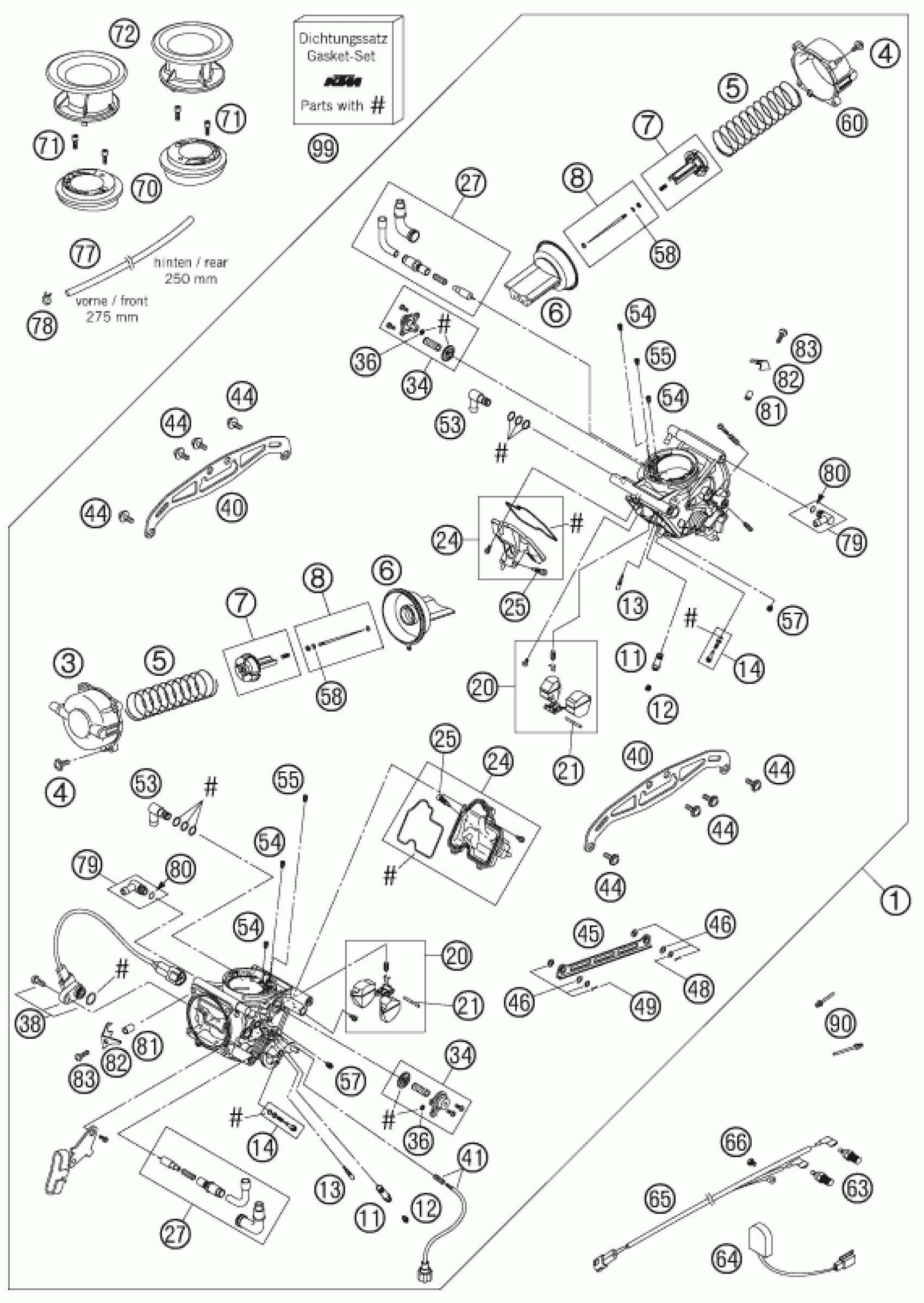

KTM 950 SUPERENDURO R 06 <2006> CARBURETOR Diagram

#

Description
Price

1

CARBURETOR CPL. 950 SE 06

63031001000

Unavailable

3

DIAPHRAGM COV. KEIHIN FRONT 03

60031027000

Unavailable

4

SCREW KEIHIN 03

60031028000

Unavailable

5

SPRING KEIHIN SUPERENDURO 06

63031030000

Unavailable

6

VACUUM PISTON CPL.

60031035000

Unavailable

7

JED NEEDLE HOLDER CPL.

60031032000

Unavailable

8

JET NEEDLE KEHIN CPL. NDFB

60031034000

Unavailable

11

JET HOLDER

60031083000

Unavailable

12

MAIN JET 150 KEIHIN

60031023150

Unavailable

12

MAIN JET 155 KEIHIN

60031023155

Unavailable

12

MAIN JET 160 KEIHIN

60031023160

Unavailable

12

MAIN JET 165 KEIHIN

60031023165

Unavailable

12

MAIN JET 170 KEIHIN

60031023170

Unavailable

13

IDLE JET 42 KEIHIN

60031007042

Unavailable

14

ADJUST SCREW CPL.

60031017000

Unavailable

20

FLOAT CPL.

60031009000

Unavailable

21

ARM PIN FLOAT

57331008000

Unavailable

24

FLOAT CHAMBER CPL.

60031011044

Unavailable

25

DRAIN SCREW FLOAT CHAMBER

57331155000

Unavailable

27

CHOKE CPL.

60031048000

Unavailable

34

AIR CUT VALVE

60031090000

Unavailable

36

U-RING

59031058000

Unavailable

38

TPS-SENSOR CVRD43 440MM 02-05

60031077000

Unavailable

40

CARBURETOR CONNECTING PLATE 03

60031091000

Unavailable

41

STOP SCREW CPL.

60031025000

Unavailable

44

SCREW KEIHIN 2003

60031094000

Unavailable

45

LINK LEVER

60031056000

Unavailable

46

LINK LEVER FIXING

60031087000

Unavailable

48

WASHER LINK LEVER

57331087000

Unavailable

49

SPLIT PIN 1,0X10

0094010103

Unavailable

53

HOSE CONNECTOR

60031013000

Unavailable

54

AIR JET 40 KEIHIN

60031037040

Unavailable

54

AIR JET 70 KEIHIN

60031037070

Unavailable

54

AIR JET 80 KEIHIN

60031037080

Unavailable

54

AIR JET 90 KEIHIN

60031037090

Unavailable

54

AIR JET 100 KEIHIN

60031037100

Unavailable

55

AIR JET 50 KEIHIN

60031047050

Unavailable

57

STARTER JET 68 KEIHIN

60031051068

Unavailable

58

CLIP FOR JET NEEDLE

54531629000

Unavailable

60

DIAPHRAGM COV. KEIHIN REAR 03

60031027100

Unavailable

63

HEATING ELEMENT CARB. HEAT. 05

60031003000

Unavailable

64

TEMPERATURE SENSOR 05

60031004000

Unavailable

65

WIRING HARNESS CARB. HEAT. 05

62511052000

Unavailable

66

HH SCREW DIN933 M4X6

0933040063

Unavailable

70

CARBURETOR TRUMPET SUPPORT 03

60031041000

Unavailable

71

AH SCREW DIN0912-M 4X16

0912040163

Unavailable

72

CARBURETOR TRUMPET 03

60031040000

Unavailable

77

HOSE 6X12 PER METER

60007116001

Unavailable

78

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

90

SLIDE STOP LC8 SM 25KW

62531029344

Unavailable

99

GASKET SET KEIHIN 03

60031099000

Unavailable

79

HOSE CONNECTION

63031013000

Unavailable

80

O-RING

63031013001

Unavailable

81

SLEEVE

63031013004

Unavailable

82

SUPPORT HOSE CONNECTION

63031013002

Unavailable

83

SCREW

63031013003

Unavailable
