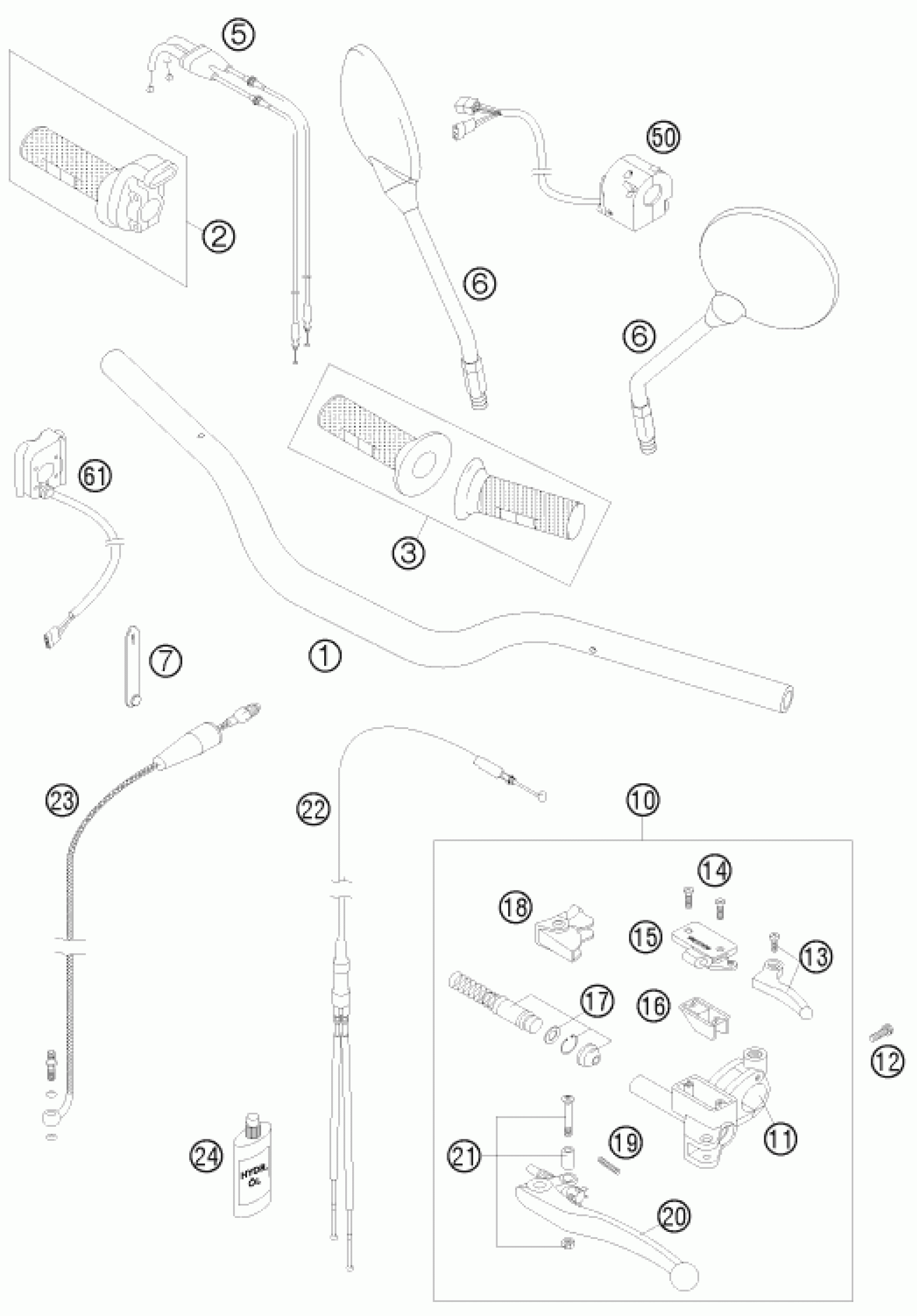

KTM 950 SUPER ENDURO R 2009 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR MAGURA SX 28MM 06

59002001200

Unavailable

2

THROTTLE GRIP CPL. 06

63002010000

Unavailable

3

GRIP-SET 2K

63002021000

Unavailable

5

THROTTLE CABLE LC8 ADV 2003

60002091000

Unavailable

6

Rear view mirror, left/right

58412040100

Unavailable

7

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

10

MASTER CYLINDER MAGURA D=10.5

60002030000

Unavailable

11

CLAMP MIRROR WITH CLAMP

60002044000

Unavailable

12

HH collar screw M6x20 TX30

0025060206

Unavailable

13

CHOKE LEVER CPL. LC8 2003

60036050000

Unavailable

14

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

15

COVER HYD.CLUTCH WITH CHOKE 03

60002033000

Unavailable

16

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

17

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

18

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

19

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

20

CLUTCH LEVER LONG CPL. 2003

60002031000

Unavailable

21

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

22

CHOKE CABLE LC8 ADVENTURE 03

60002095000

Unavailable

23

CLUTCH PIPE LC8 ADV '03

60032063100

Unavailable

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

50

LIGHT SWITCH 06

61011070100

Unavailable

61

START-STOP SWITCH AD LC4 02

58411074100

Unavailable
