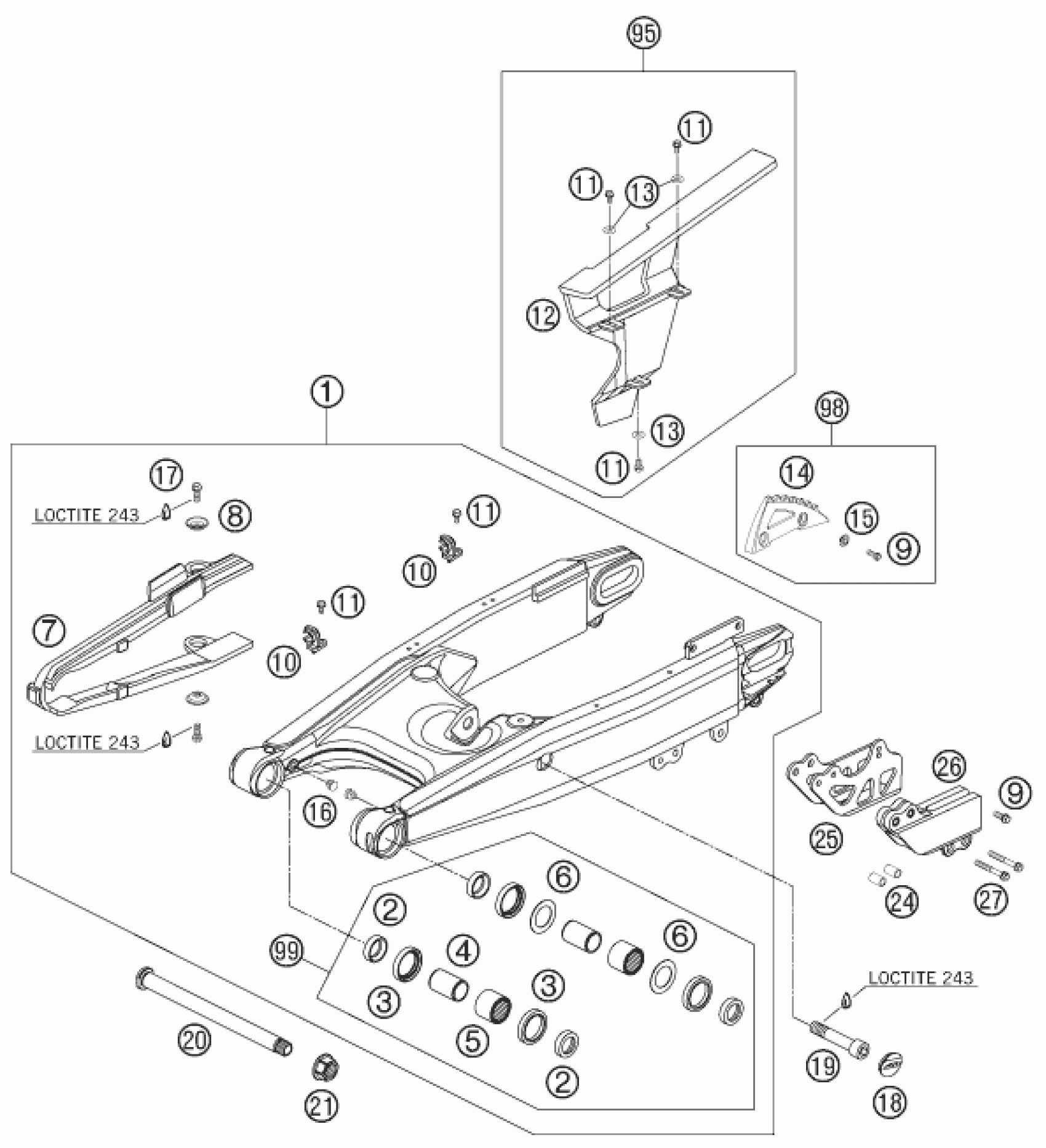

KTM 950 SUPER ENDURO R 2008 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. 950 SE 06

63004030044

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

Unavailable

3

Radial shaft seal 30X40X7

0760304073

Unavailable

4

INNER RING JR20X25X38,5 03

60004032000

Unavailable

5

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

6

Stop disk 03

60004033000

Unavailable

7

CHAIN SLID. GUARD SWINGARM06

63004066000

Unavailable

8

BUCKET

72210079000

Unavailable

9

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

10

RET. CLAMP F. BRAKE HOSE BLACK

5461107610030

Unavailable

11

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

12

CHAINGUARD 06

60004061100

Unavailable

13

washer DIN 9021 A - 5.3

0021050003

Unavailable

14

REAR SPROCKET GUARD 03

60004075000

Unavailable

15

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

16

PLUG SFL12 GREY 05

60004042000

Unavailable

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

18

PLUG SWINGARM 03

60004041000

Unavailable

19

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

20

SWING ARM BOLT 272,5MM 06

63004037144

Unavailable

21

COLLAR NUT M19X1,5 WS=27MM

60004038000

Unavailable

24

BUSH 6,5X10X22MM

54607072100

Unavailable

25

RETAINING PLATE CPL.

54607070144

Unavailable

26

CHAIN GUIDE 06

63004070000

Unavailable

27

HH collar screw M6x50 TX30

0025060506

Unavailable

95

CHAIN PROTECTION KIT ADV 07-12

60004060010

Unavailable

98

SPROCKET GUARD KIT

60004075010

Unavailable

99

SWINGARM REP. KIT

60004230010

Unavailable
