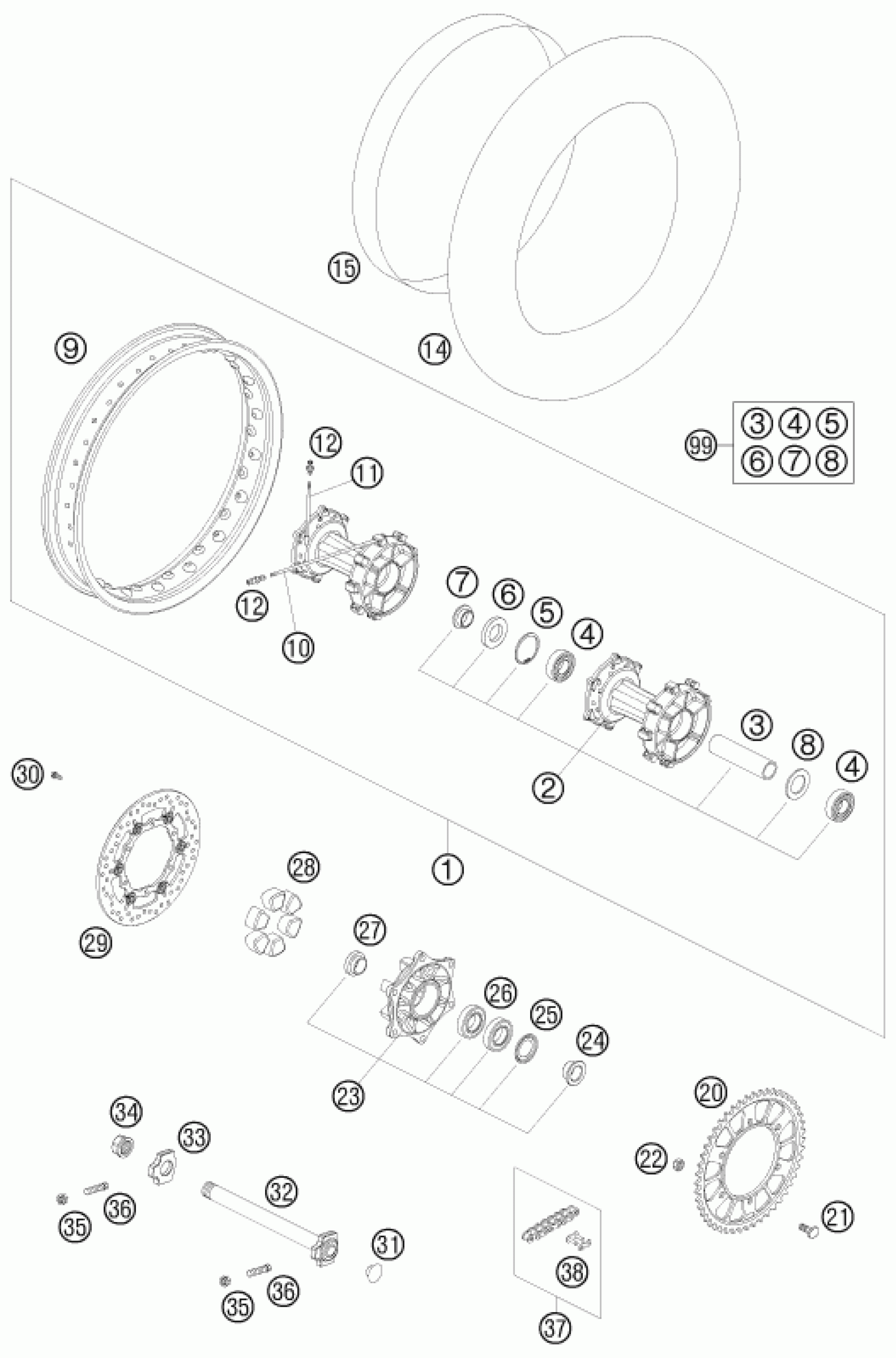

KTM 950 SUPER ENDURO R 2008 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 2,50X18'' 0

6301000104430

$723.20

2

REAR HUB CPL. 06

60110010044

$330.70

3

Bearing spacing tube L=124.8mm

60010011000

$20.09

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

9

REAR RIM 2,50X18'' DIRT STAR 0

6301007000030

$355.76

10

SPOKE M5X219 06

63010171000

$5.23

11

SPOKE M5X196 06

63010071000

$5.23

12

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

$2.05

14

TUBE 110/100C-18

50310075100

$29.13

15

RIM TAPE 18'' 32/2 MM 0

63010073000

$10.93

20

REAR SPROCKET 42-T 03

60010051042

Unavailable

20

REAR SPROCKET 45-T 03

60010051045

$68.84

21

SPROCKET SCREW M10X1,25 03

60010052000

$5.23

22

Hexag. nut DIN 980V M10X1.25 S

0980101253

$2.05

23

SPROCKET SUPPORT CPL. 06

60110050044

$193.16

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

BRAKE DISK REAR D=240MM 06

60110060000

$222.33

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

31

PLUG MNE2673

60010081050

$3.08

32

WHEEL SPINDLE REAR CPL. 03

60010081044

$56.09

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

screw M10x1.25x50 WS10

50304040100

$5.23

37

CHAIN 525 INCL. MASTER LINK

60010365118

$165.86

38

MASTER LINK FOR CHAIN 525 07

60010266000

Unavailable

99

REAR WHEEL REP. KIT ADV

60010015010

Unavailable
