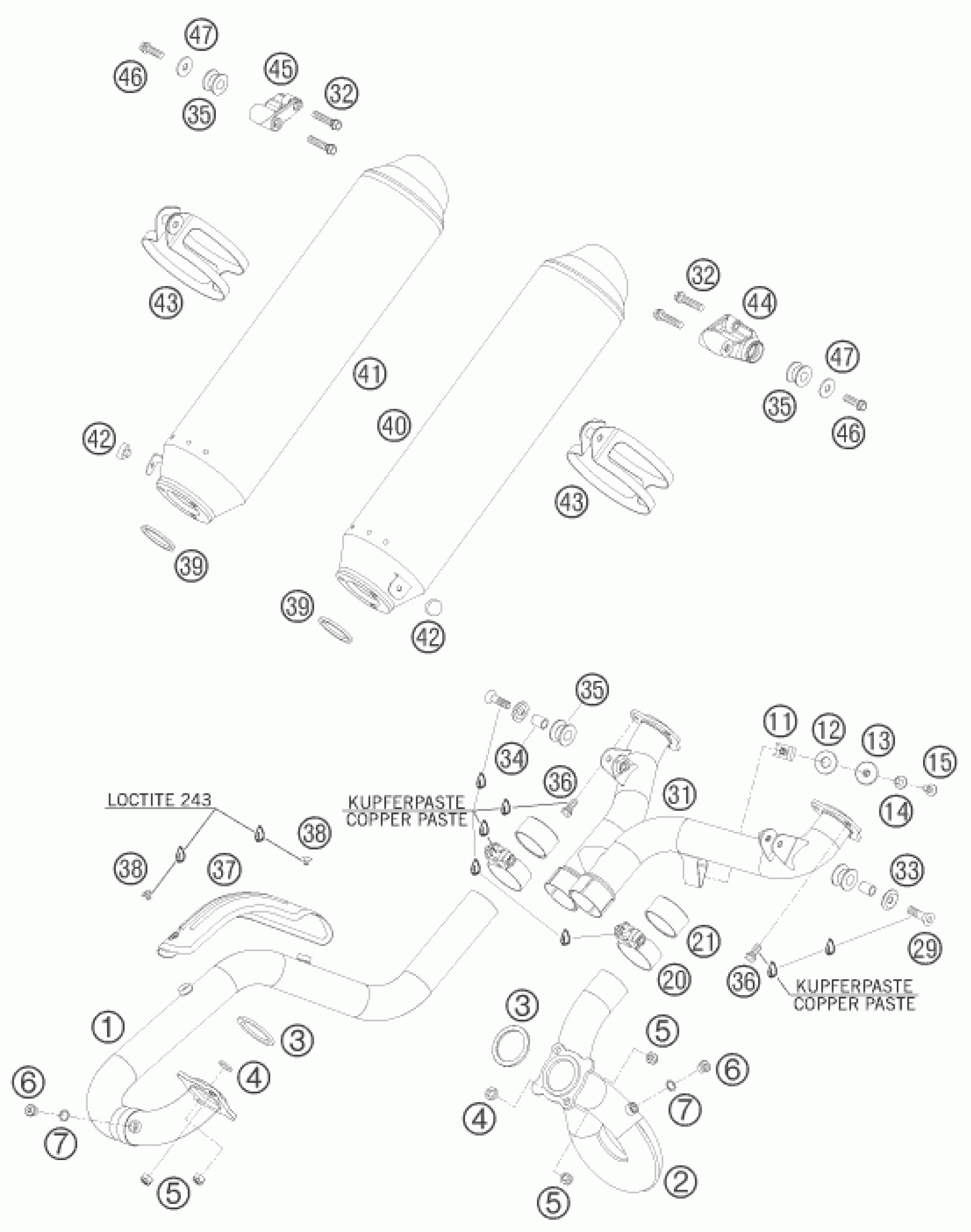

KTM 950 SUPER ENDURO R 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE FRONT 06

63005007000

$282.00

2

EXHAUST PIPE REAR 03

60005008000

$230.72

3

GASKET 03

60005005000

$8.41

4

washer DIN 125 A -8.4

0125080003

$1.49

5

self-locking nut M8 Cu

51010086100

$3.08

6

PLUG DIN0908-M10X1 A2

0908100000

$5.23

7

sealing ring DIN 7603 10x14x1

0603100141

$2.05

11

clip nut M6

54603048100

$4.11

12

INSOLATE WASHER 8,5X28X3

51005067000

$2.05

13

INSULATING DISK 06

63005013000

$1.49

14

DISTANCE BUSHING F. CHAIN.

54830048000

$2.61

15

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

20

CLAMP CPL. D=49,2MM 06

60105051000

$32.62

21

GRAPHIT RING 42X47X25 03

60005005001

$18.60

29

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

31

DISTRIBUTOR TUBE 06

63005048000

$324.11

32

HH collar screw M8x30

0025080306

$3.08

33

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

$6.07

34

SPACER BUSH. 8,5X12X18MM 05

62505069000

$7.00

35

damp. component silicone grey

54305068100

$8.31

36

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

37

THERMAL SHIELD 06

63005011000

$53.68

38

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

$1.49

39

EXHAUST GASKET 03

60005005002

$6.54

40

SILENCER L/S 08

62605082000

Unavailable

41

SILENCER R/S 08

62605083000

Unavailable

42

RUBBER BUFFER

54308042000

$3.08

43

CLAMP FOR SILENCER CPL. 03

60005095000

$35.02

44

SILENCER/HANDLE HOLDER L/S 07

6000508500001S

$40.94

45

SILENCER/HANDLE HOLDER R/S 07

6000508600001S

$41.51

46

HH collar screw M8x25

0025080256

$2.05

47

WASHER DIN9021-A 8,4

0021080003

$1.49
