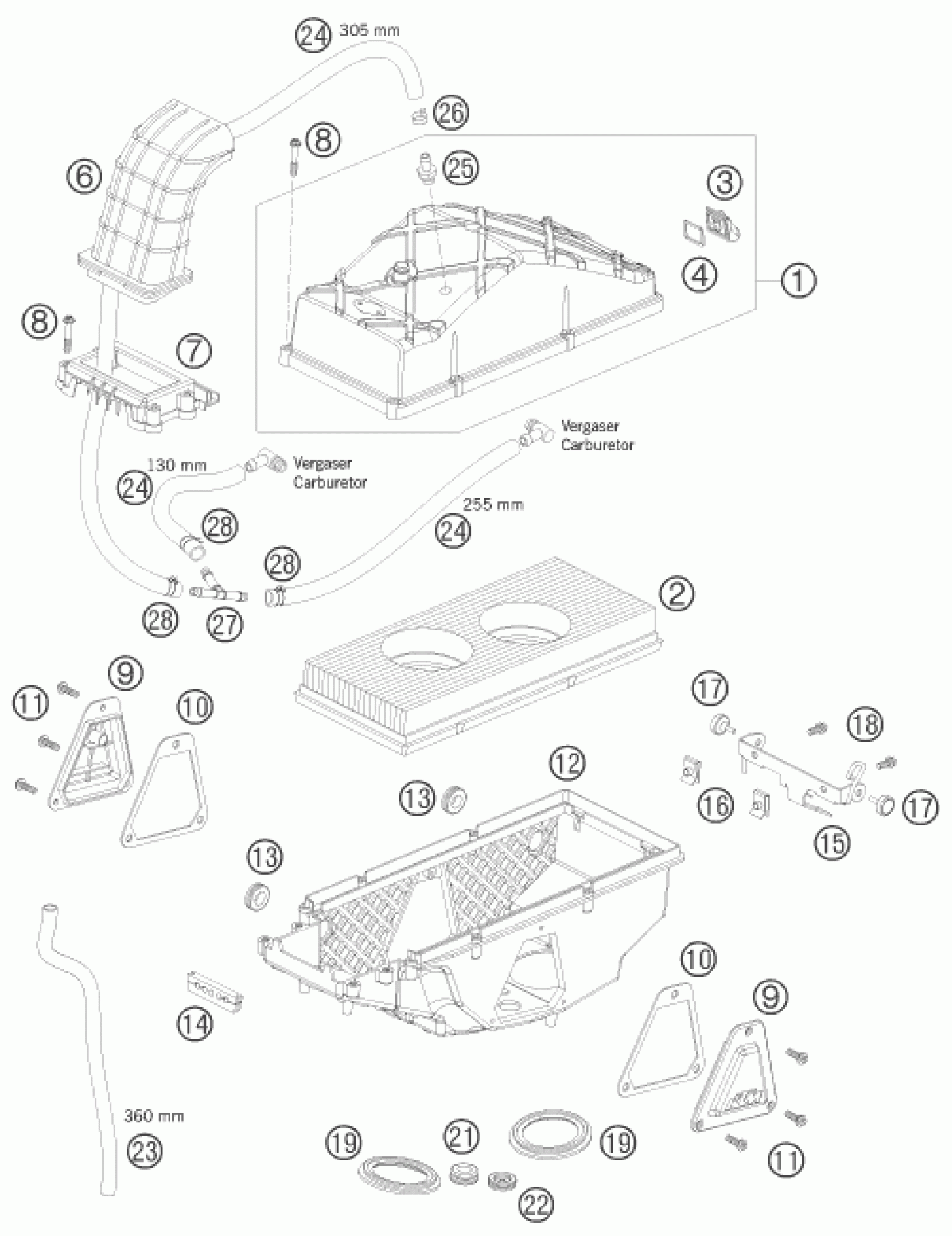

KTM 950 SUPER ENDURO R 2008 AIR FILTER Diagram

#

Description
Price

1

AIR FILTER COVER LC8 CPL. 07

63006002044

Unavailable

2

AIR FILTER LC8 03

60006015000

Unavailable

3

CONNECTOR FOR SAS LC8 03

60006007000

Unavailable

4

GASKET SAS CONNECTOR 03

60006007050

Unavailable

6

INTAKE SNORKEL 03

60006040000

Unavailable

7

AIRBOX FRONT PART LC8 03

60006004000

Unavailable

8

SPECIAL SCREW K60X35/15 03

60006006000

Unavailable

9

AIRBOX COVER L/S R/S 03

60006003002

Unavailable

10

GASKET F. AIRBOX COVER L/S R/S

60006003050

Unavailable

11

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

12

FILTER BOX LOWER PART LC8 03

60006001000

Unavailable

13

RUBBER SLEEVE EPC HOSE

60006001040

Unavailable

14

RUBBER SLEEVE CABLE PASSAGE 03

60006001030

Unavailable

15

BRACKET PANEL SAS A. EPC 03

60006001020

Unavailable

16

clip nut M6

54603048100

Unavailable

17

Distance rupper airbox 03

60006001021

Unavailable

18

HH collar screw M6x16 TX30

0025060166

Unavailable

19

RUBBER SLEEVE AIRBOX 03

60036045000

Unavailable

21

RUBBER SLEEVE FUEL HOSE 03

60006001041

Unavailable

22

Rubber grommet, standby gas se

60006001023

Unavailable

23

HOSE 10X14 PER METER

57005020001

Unavailable

25

BUSH FOR AIR FILTER BOX 06

63006001050

Unavailable

26

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

27

T-connector TS-6 03

60015022000

Unavailable

24

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

28

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable
