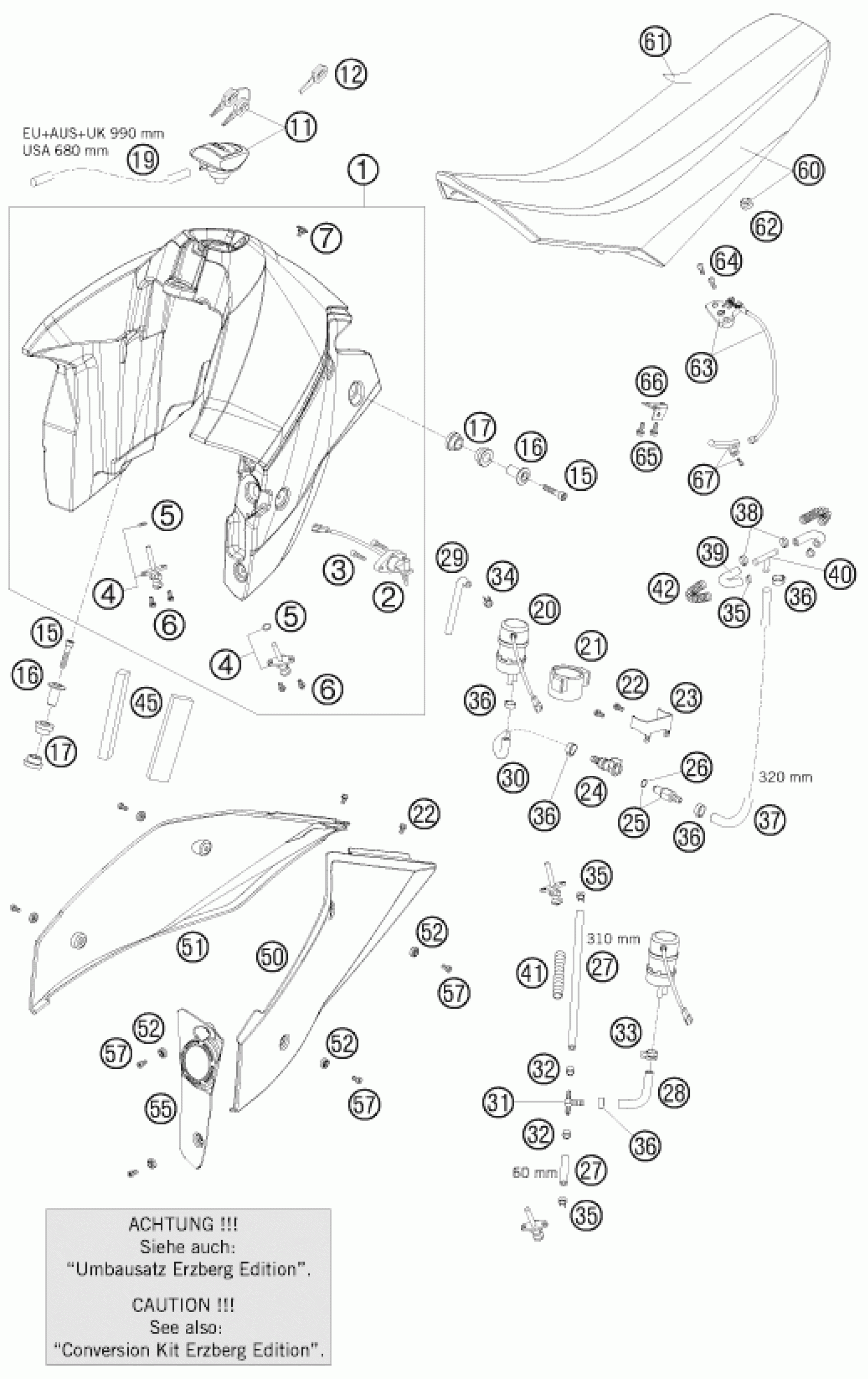

KTM 950 SUPER ENDURO ERZBERG 08 <2008> TANK, SEAT Diagram

#

Description
Price

1

FUELTANK CPL.14L BLACK MATT 06

6300701303333A

Unavailable

2

GAS-LEVEL SENSOR ADV. 2006

58207080100

Unavailable

3

AH collar screw DIN 912 M5x16

0912050163

Unavailable

4

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

5

O-RING 11X1,8 NBR 70

55007006200

Unavailable

6

HH collar screw M6x16 TX30

0025060166

Unavailable

7

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

11

TANK PLUG 06

58407008200

Unavailable

12

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

15

AH collar screw DIN0912 M8x40

0912080403

Unavailable

16

collar bushing, bearing, outsi

61007060000

Unavailable

17

collar bushing, front tank hol

61007065000

Unavailable

19

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

20

FUEL PUMP 04

60012088100

Unavailable

21

FUEL PUMP HOLDER 03

60012088050

Unavailable

22

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

23

SUPPORT FUEL PUMP 05

62512071000

Unavailable

24

Clutch CPC PLCD17005, black

5850701050030

Unavailable

25

Plug CPC black 05

5850701030030

Unavailable

26

O-ring VITON f. plug CPC 0

58507012000

Unavailable

27

HOSE FPM/ECO 6X13 L=310

60007216310

Unavailable

27

HOSE FPM/ECO 6X13 L=60

60007216060

Unavailable

28

FUEL HOSE 08

62507116070

Unavailable

29

FUEL PREFORMED HOSE SX 2001

50307016000

Unavailable

30

FUEL HOSE 05

62507016060

Unavailable

31

T-CONNECTOR 6-6-8 MM 05

60007015100

Unavailable

32

OETIKER HOSE CLAMP 13,3MM

58007117200

Unavailable

33

CLAMP STD DN14

00049140121

Unavailable

34

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

35

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

36

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

Unavailable

37

FUEL HOSE 7,5X13,5 L=320

60007316320

Unavailable

38

VARIABLE ONE-EAR CLAMP 14,0MM

00050140706

Unavailable

39

FUEL PREFORMED HOSE

60007116000

Unavailable

40

T-CONNECTOR 8MM 03

60007015000

Unavailable

41

THERMAL PROTECTION L=105MM 05

62507016050

Unavailable

42

PROTECTION SPRING FUEL HOSE

60007016050

Unavailable

45

FOAM 150X35X15 06

62507033000

Unavailable

50

SPOILER L/S ORANGE 06

6300805000004

Unavailable

51

SPOILER R/S ORANGE 06

6300805100004

Unavailable

52

SPECIAL WASHER D=16,5MM 03

60008045000

Unavailable

55

TANK COVER L/S 06

63008070000

Unavailable

57

AH SCREW DIN6912 M6X12

0012060123

Unavailable

60

SEAT BLACK/ORANGE 06

6300704000004

Unavailable

61

SEAT COVER BLACK/ORANGE

6300704005004

Unavailable

62

PLUG FOR SEAT

58407040060

Unavailable

63

SEAT LOCK 06

63007050044

Unavailable

64

BHCS ISO 7380 M6X18

0738060181

Unavailable

65

HH collar screw M5x12 TX30

0025050126

Unavailable

66

BRACKET FOR SEAT LOCK 06

63008053000

Unavailable

67

LEVER + SCREW CPL. 05

58607051044

Unavailable
