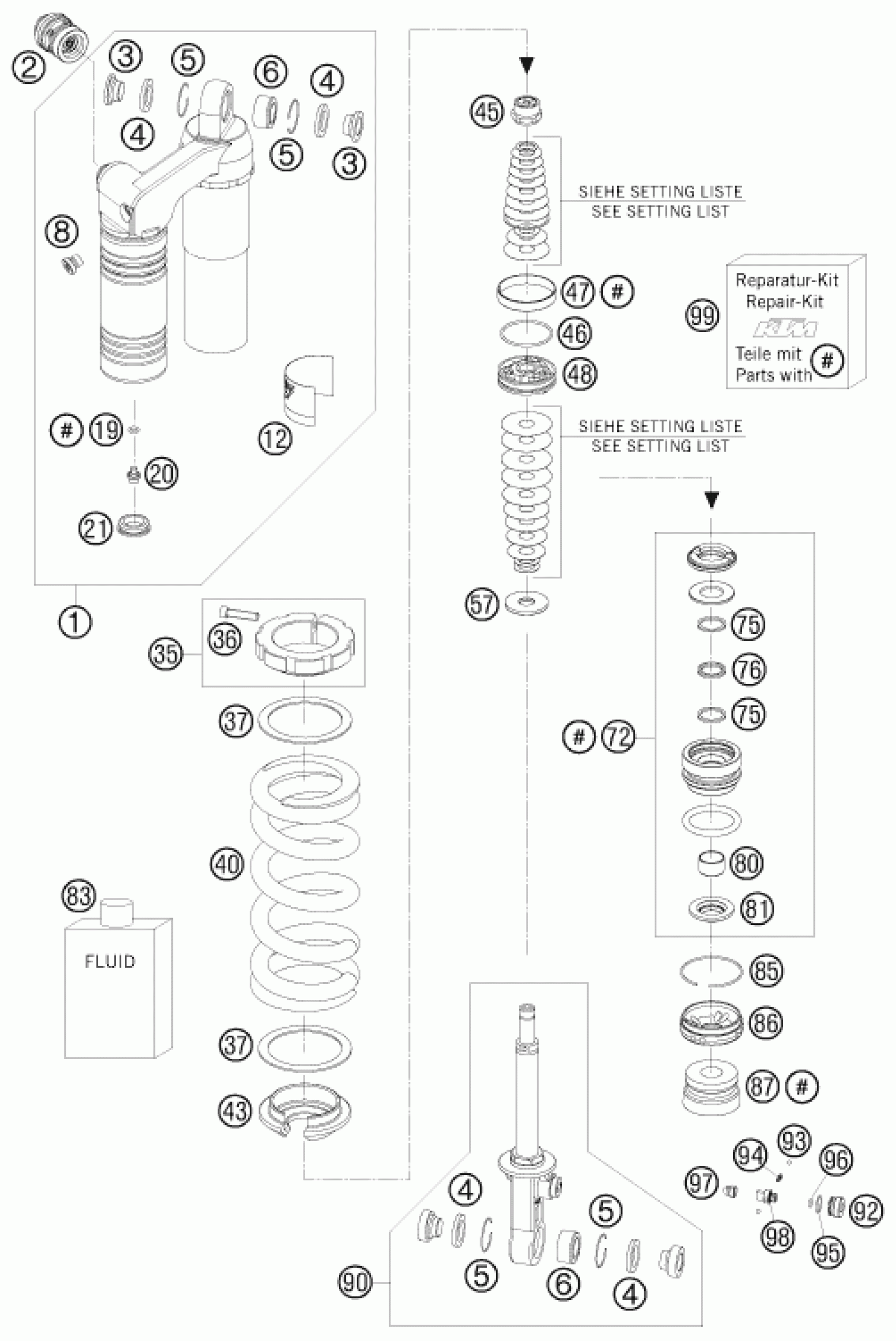

KTM 950 SUPER ENDURO ERZBERG 08 <2008> SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

6

Ball joint bearing 15x25x13

50180005

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

12

STICKER WP KTM

52000044

Unavailable

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

21

Rubber cap do not open 22x5,5

46811208

Unavailable

35

ADJUSTING NUT M52X1,5

46180394S

Unavailable

36

AH SCREW M5X25

46180354

Unavailable

37

Washer 58,6x73,6x1,5

50180410

Unavailable

40

SPRING 140-215 (59)D=13,75 TIT

91010277S

Unavailable

43

Spring retainer 28x73x15

46180396

Unavailable

45

Piston rod nut M12x1

46180597

Unavailable

46

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

47

PISTON RING

46810361

Unavailable

48

Piston 12,05x45,5x12,6 4,5/7

46810560

Unavailable

57

Rebound disc 12x35x4 h0

14460017

Unavailable

72

ADAPTOR CPL. D=46 H=28 D=38

46180341S

Unavailable

75

Washer 18x22,5x1,5 plastic

50180102

Unavailable

76

X-ring 18x2,62 Viton70

50180101

Unavailable

80

Guide bushing 18x20x12

46180119

Unavailable

81

Dirt scarper 18mm

50180082

Unavailable

83

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

85

Round-wire snap ring 49x1,5

46810010

Unavailable

86

COVER H=9,5

46180397

Unavailable

87

Rubber pad 17,2x45,2x40 black

50180276

Unavailable

90

MONOSHOCK LOWER PART CPL. 07

46180399S2

Unavailable

92

Screw cap M16x1

46180005

Unavailable

93

Steel ball d3

40540603

Unavailable

94

Spring (1,7) l7,9

48600028

Unavailable

95

O-ring 12x1 NBR70

46180013

Unavailable

96

O-ring 4x1,5 NBR70

50180222

Unavailable

97

Adjustment screw slot rebound

46180016

Unavailable

98

Adjustment screw slot rebound

46180006

Unavailable

99

REPAIR KIT GASKET 05

R15004

Unavailable

5

Round-wire snap ring 25x1

50180168

Unavailable

2

50180213S4

Unavailable

1

MONOSHOCK TOP PART CPL. 07

46180398S2

Unavailable

3

Bearing bush 14x15/18/24,5x10,

50180366

Unavailable

4

Seal ring 19,5x26x3

46180003

Unavailable
