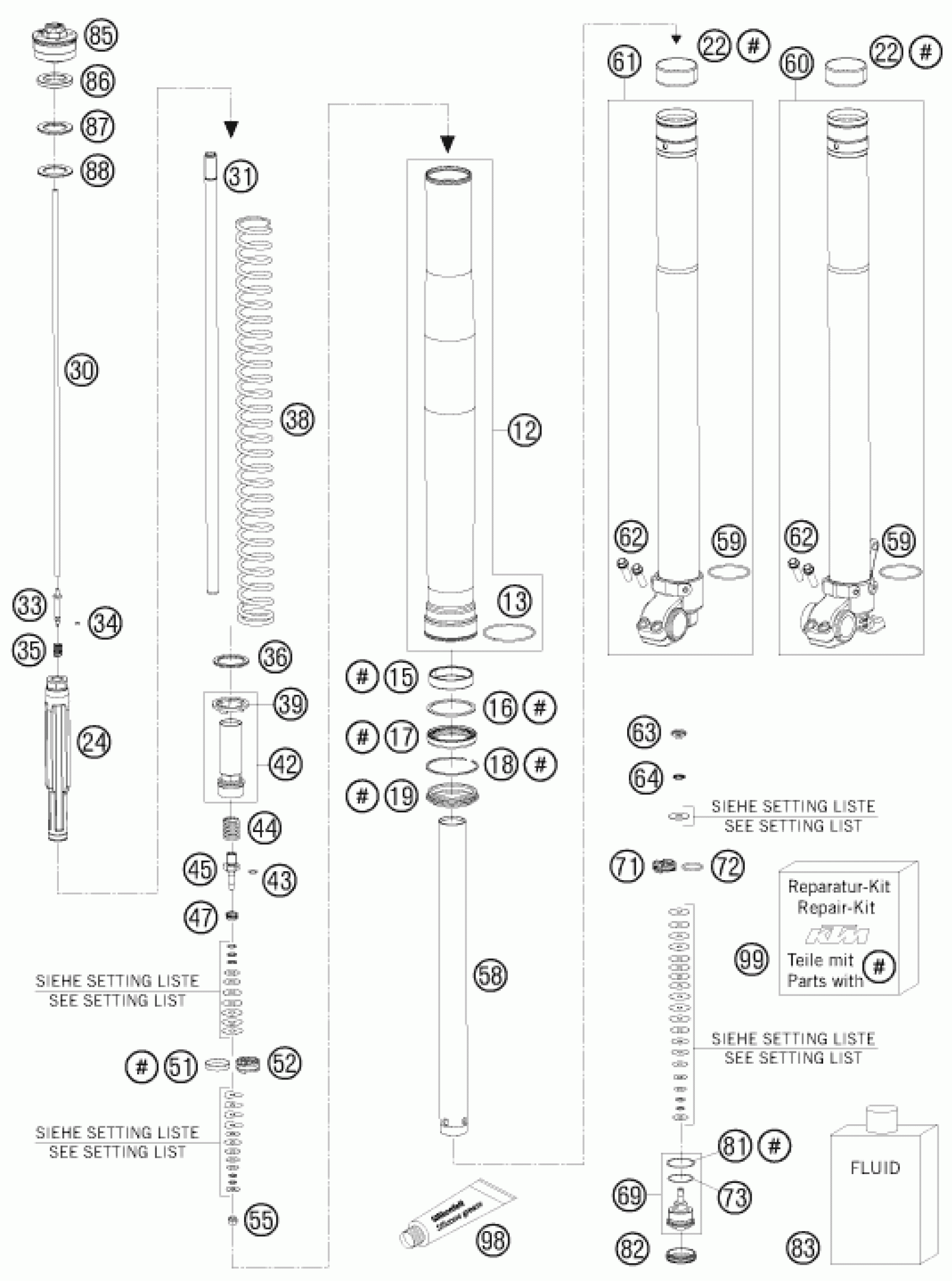

KTM 950 SUPER ENDURO ERZBERG 08 <2008> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

12

OUTER TUBE L=610MM D=54/60 2L

48600553E

Unavailable

13

Round-wire snap ring 48x2

48600016

Unavailable

15

DU-BUSH D48XD52X12DDL02

48600429

Unavailable

16

Supportwasher 50x57,6x1,5

48600013

Unavailable

17

Shaft seal SKF 48x57,8x9,5 bla

48600399

Unavailable

18

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

19

DUST CAP D=48 58,4X11,8

48600400

Unavailable

22

DU-BUSH D47XD49X20DDL02

48600428

Unavailable

24

HYDR.STOP L=200MM D=31,9 CPL

48600241S1

Unavailable

30

ADJUSTMENT TUBE L=467MM 06

48600143

Unavailable

31

PISTON ROD D=14 M11X1 L=501

48600538

Unavailable

33

Needle 6x42,6 rebound

48600189

Unavailable

34

O-ring 3x1,5 NBR70

48600046

Unavailable

35

Spring (7,2) 4-23 needle

48600033

Unavailable

36

Preload bush 26,5x42x5

48600037

Unavailable

38

SPRING 5,9 N/MM SET D=5,5MM

91410045S

Unavailable

39

Spring retainer 33,5x43x3

48600021

Unavailable

42

Screw sleeve M29,3x1 cpl.

48600196S

Unavailable

43

O-ring 8x1,25 NBR70 siliconize

48600239

Unavailable

44

Spring (15) 12-34,5 rebound

48600403

Unavailable

45

Tap 6x45 rebound

48600203

Unavailable

47

Spring (11,7) 1,5-8 valve

35480377

Unavailable

51

Pistonring 26x28x5

48600060

Unavailable

52

Piston 6,05x27,65x12 rebound

48600042

Unavailable

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

58

TUBE 28X29,3X1 L=435 ALU D=8,5

48600537

Unavailable

59

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

60

AXLE CLAMP L/S + TUBE CPL. 07

48600534S1

Unavailable

61

AXLE CLAMP R/S + TUBE CPL. 07

48600238S2

Unavailable

62

HH collar screw M8x25

0025080256

Unavailable

63

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

64

Spring (8,5) l6,5 valve

48600202

Unavailable

69

TAP COMPRESSION CPL. 03

48600152S1

Unavailable

71

Piston 6x27,8x9 compression

48600047

Unavailable

72

O-ring 21x2 NBR70

46811499

Unavailable

73

O-ring 24x2 NBR70

35480320

Unavailable

81

Copper disc 29,5x33,5x1

48600004

Unavailable

82

Rubber cap 35x10 NBR80

48600141

Unavailable

83

FORK OIL SAE5 5L 2008

48600765S1

Unavailable

85

PRE-LOAD ADJ. CPL. M51X1,5 05

48600431S

Unavailable

86

Preload bush 26,5x42x1,5

48600053

Unavailable

87

Preload bush 42x26,5x2,5

48600036

Unavailable

88

Preload bush 26,5x42x10

48600038

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REPAIR-KIT EXC FRONT FORK06/07

R14013

Unavailable
