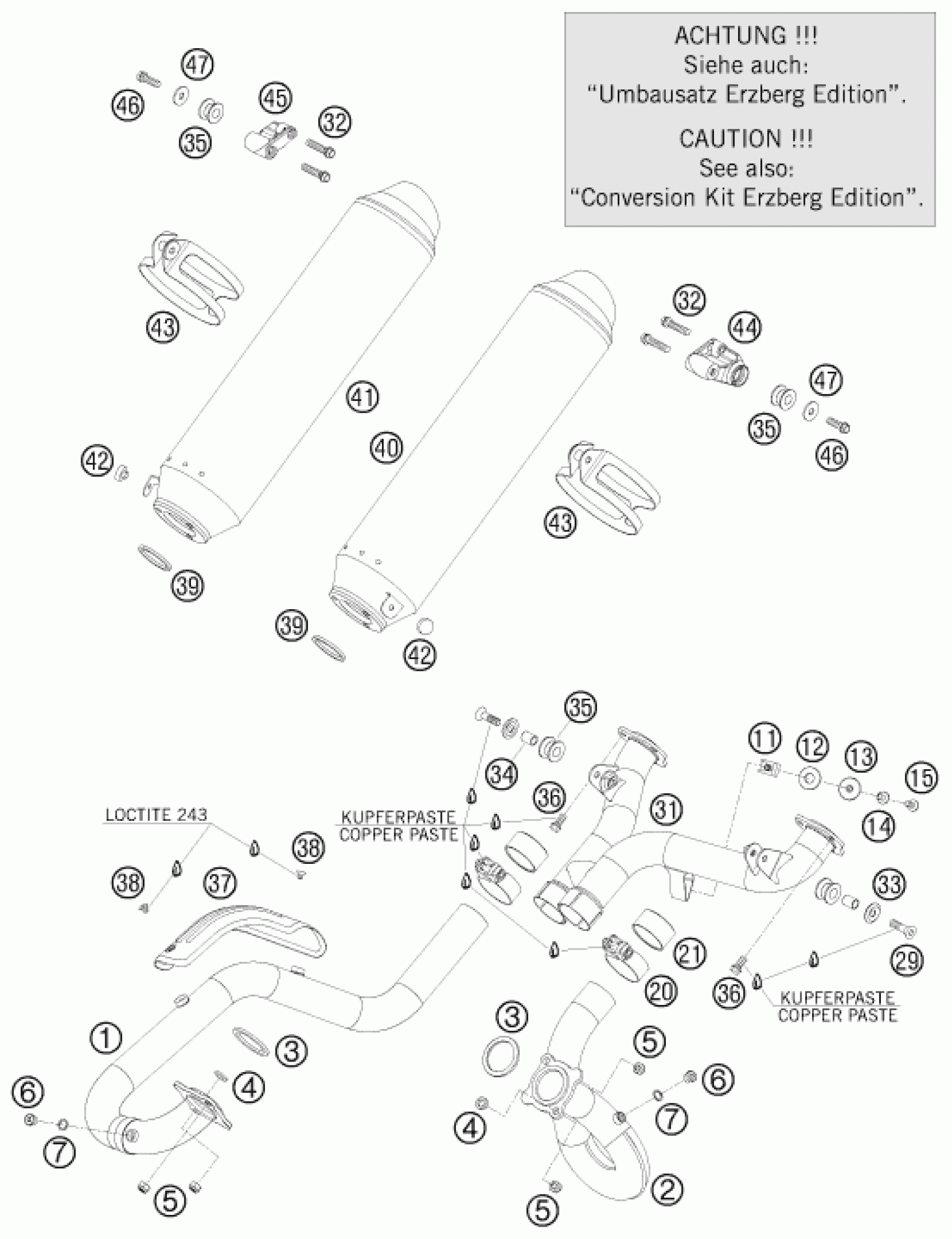

KTM 950 SUPER ENDURO ERZBERG 08 <2008> EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE FRONT 06

63005007000

Unavailable

2

EXHAUST PIPE REAR 03

60005008000

Unavailable

3

GASKET 03

60005005000

Unavailable

4

washer DIN 125 A -8.4

0125080003

Unavailable

5

self-locking nut M8 Cu

51010086100

Unavailable

6

PLUG DIN0908-M10X1 A2

0908100000

Unavailable

7

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

11

clip nut M6

54603048100

Unavailable

12

INSOLATE WASHER 8,5X28X3

51005067000

Unavailable

13

INSULATING DISK 06

63005013000

Unavailable

14

DISTANCE BUSHING F. CHAIN.

54830048000

Unavailable

15

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

20

CLAMP CPL. D=49,2MM 06

60105051000

Unavailable

21

GRAPHIT RING 42X47X25 03

60005005001

Unavailable

29

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

31

DISTRIBUTOR TUBE 06

63005048000

Unavailable

32

HH collar screw M8x30

0025080306

Unavailable

33

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

Unavailable

34

SPACER BUSH. 8,5X12X18MM 05

62505069000

Unavailable

35

damp. component silicone grey

54305068100

Unavailable

36

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

37

THERMAL SHIELD 06

63005011000

Unavailable

38

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

Unavailable

39

EXHAUST GASKET 03

60005005002

Unavailable

40

SILENCER L/S 08

62605082000

Unavailable

41

SILENCER R/S 08

62605083000

Unavailable

42

RUBBER BUFFER

54308042000

Unavailable

43

CLAMP FOR SILENCER CPL. 03

60005095000

Unavailable

44

SILENCER/HANDLE HOLDER L/S 07

6000508500001S

Unavailable

45

SILENCER/HANDLE HOLDER R/S 07

6000508600001S

Unavailable

46

HH collar screw M8x25

0025080256

Unavailable

47

WASHER DIN9021-A 8,4

0021080003

Unavailable
