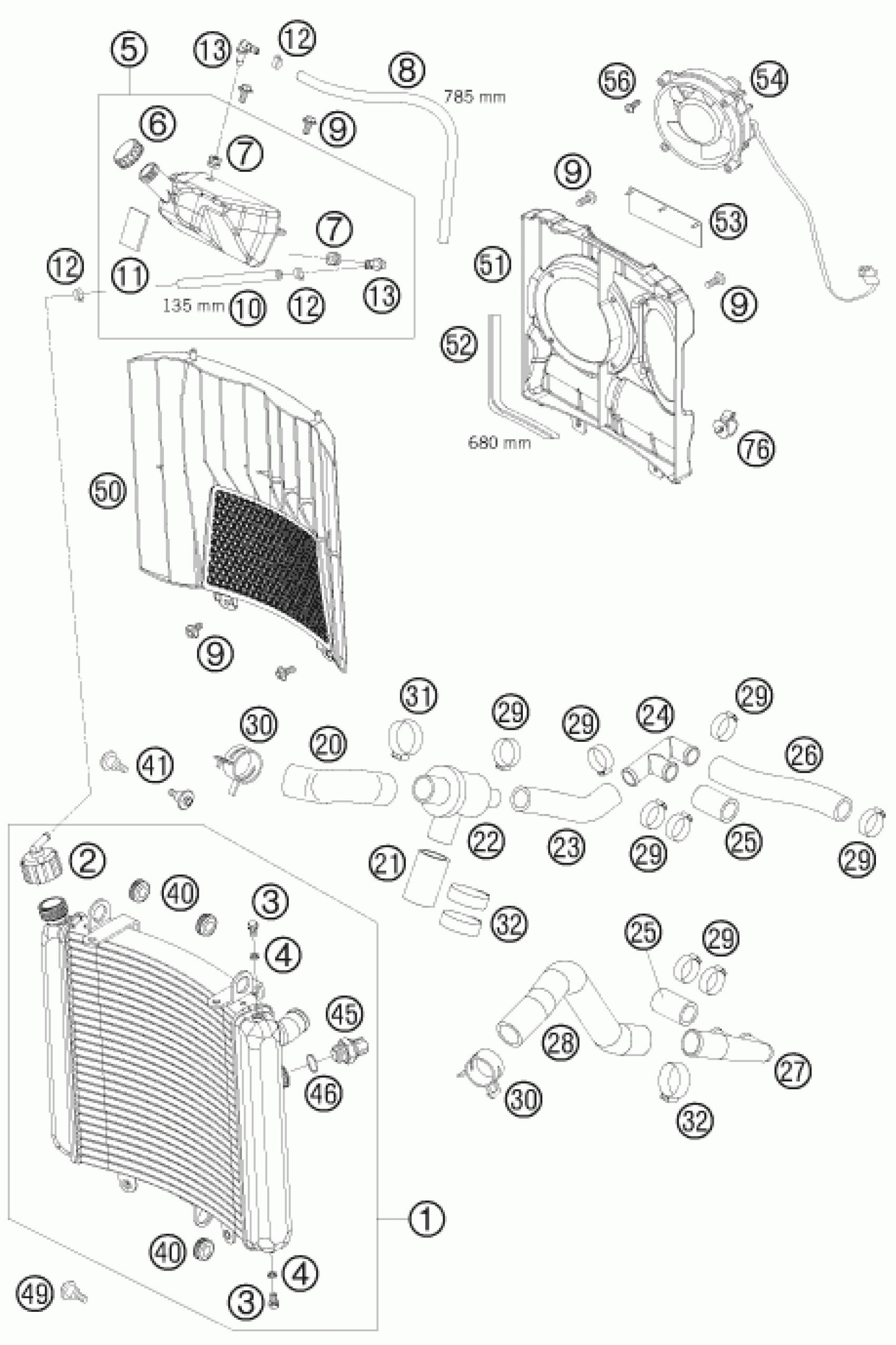

KTM 950 SUPER ENDURO ERZBERG 08 <2008> COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR 950 SE ''45520''

63035010000

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

4

ALU-GASKET 6X10X1.5

60035048000

Unavailable

5

WATER EXPANSION TANK CPL. 06

63035065000

Unavailable

6

PLUG F. EXPANSION TANK

60035066000

Unavailable

7

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

8

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

9

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

FOAM 40x25x3 MM 06

63035065010

Unavailable

12

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

13

Angle piece, reservoir

60035068000

Unavailable

20

RADIATOR HOSE THERM./DISTR. 05

63035031000

Unavailable

21

RADIATOR HOSE THERM./PUMP 03

60035030000

Unavailable

22

THERMOSTAT 75° CPL. W. CASE 03

60035017000

Unavailable

23

RADIATOR HOSE THERM./DISTR. 05

62535025000

Unavailable

24

DISTRIBUTOR R/S 18/18/18MM 03

60035019000

Unavailable

25

RADIATOR HOSE CYL./DISTR. 03

60035026000

Unavailable

26

RADIATOR HOSE DISTR./DISTR. 03

60035027000

Unavailable

27

DISTRIBUTOR L/S 18/18/25MM 03

60035028000

Unavailable

28

RADIATOR HOSE 05

62535024000

Unavailable

29

VARIABLE ONE-EAR CLAMP 27,1MM

00050271708

Unavailable

30

CLAMP STD DN32

00049320121

Unavailable

31

VARIABLE ONE-EAR CLAMP 34,6MM

00050346706

Unavailable

32

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

40

RUBBER SLEEVE D=12MM

41001052000

Unavailable

41

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

45

THERMOSWITCH LC8 102DG '03

60035045000

Unavailable

46

O-ring 17X1.5

0770017015

Unavailable

50

RADIATOR GUARD 06

63035034000

Unavailable

49

Special screw M6x24 WS=8

60038083000

Unavailable

51

FAN COWL 05

62535044000

Unavailable

52

EDGE PROTECTOR PER METER

58312085100

Unavailable

53

FAN CLACK RUBBER 08

62635044050

Unavailable

54

FAN CPL. 12V LC4 2000

58435041000

Unavailable

56

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

76

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable
