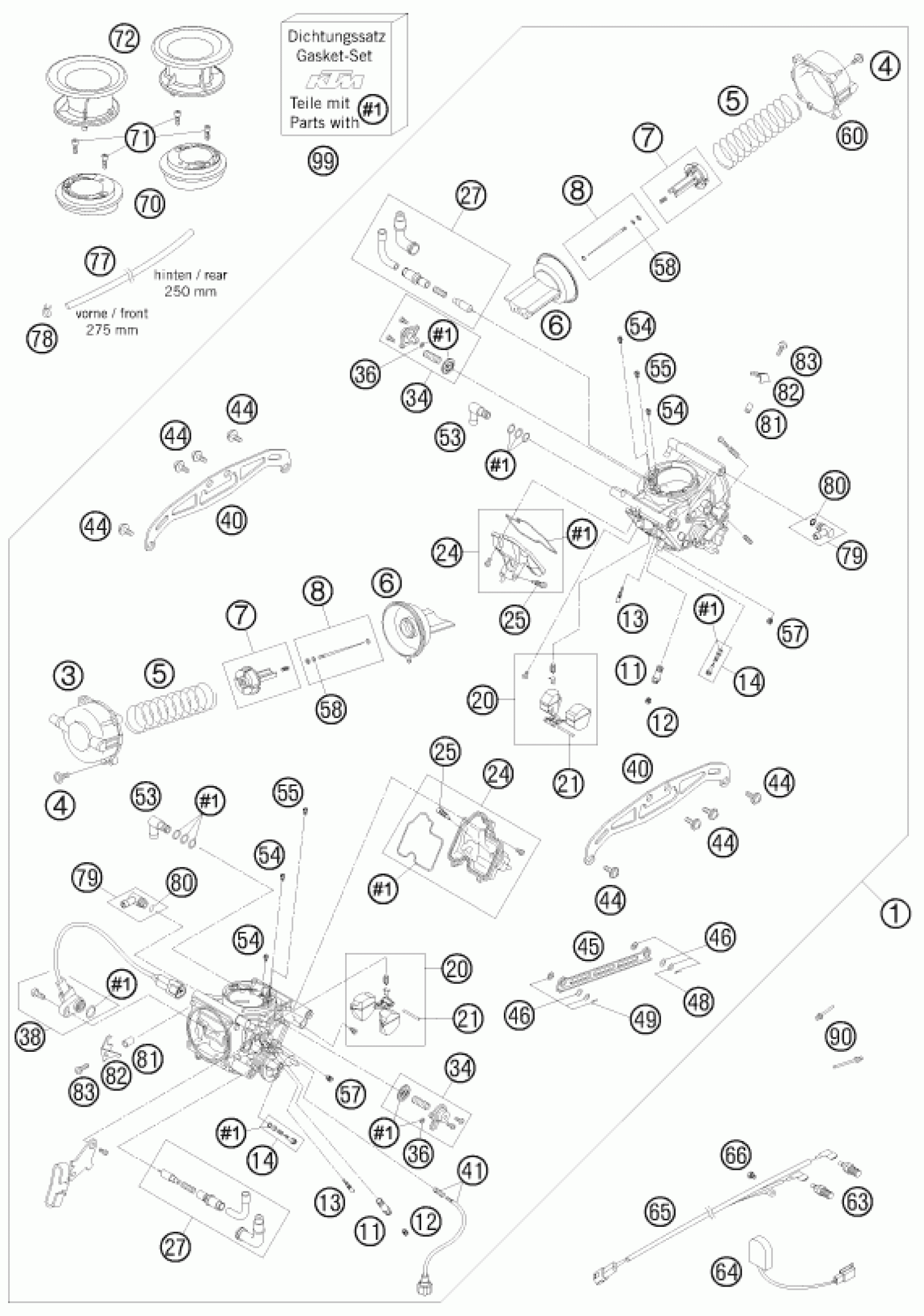

KTM 950 SUPER ENDURO ERZBERG 08 <2008 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR CPL. 950 SE 06

63031001000

Unavailable

3

DIAPHRAGM COV. KEIHIN FRONT 03

60031027000

Unavailable

4

SCREW KEIHIN 03

60031028000

$3.08

5

SPRING KEIHIN SUPERENDURO 06

63031030000

$6.54

6

VACUUM PISTON CPL.

60031035000

$84.33

7

JED NEEDLE HOLDER CPL.

60031032000

$46.27

8

JET NEEDLE KEHIN CPL. NDFB

60031034000

$43.84

11

JET HOLDER

60031083000

$14.39

12

MAIN JET 150 KEIHIN

60031023150

Unavailable

12

MAIN JET 155 KEIHIN

60031023155

Unavailable

12

MAIN JET 160 KEIHIN

60031023160

Unavailable

12

MAIN JET 165 KEIHIN

60031023165

Unavailable

12

MAIN JET 170 KEIHIN

60031023170

Unavailable

13

IDLE JET 42 KEIHIN

60031007042

$20.56

14

ADJUST SCREW CPL.

60031017000

$12.43

20

FLOAT CPL.

60031009000

$63.01

21

ARM PIN FLOAT

57331008000

$2.05

24

FLOAT CHAMBER CPL.

60031011044

$73.46

25

DRAIN SCREW FLOAT CHAMBER

57331155000

$5.98

27

CHOKE CPL.

60031048000

$62.31

34

AIR CUT VALVE

60031090000

$61.95

36

U-RING

59031058000

$3.08

38

TPS-SENSOR CVRD43 440MM 02-05

60031077000

$129.15

40

CARBURETOR CONNECTING PLATE 03

60031091000

$29.37

41

STOP SCREW CPL.

60031025000

$76.14

44

SCREW KEIHIN 2003

60031094000

$3.85

45

LINK LEVER

60031056000

$38.60

46

LINK LEVER FIXING

60031087000

$6.93

48

WASHER LINK LEVER

57331087000

$2.05

49

SPLIT PIN 1,0X10

0094010103

$2.61

53

HOSE CONNECTOR

60031013000

$64.57

54

AIR JET 40 KEIHIN

60031037040

Unavailable

54

AIR JET 70 KEIHIN

60031037070

Unavailable

54

AIR JET 80 KEIHIN

60031037080

Unavailable

54

AIR JET 90 KEIHIN

60031037090

Unavailable

54

AIR JET 100 KEIHIN

60031037100

Unavailable

55

AIR JET 50 KEIHIN

60031047050

Unavailable

57

STARTER JET 68 KEIHIN

60031051068

$13.50

58

CLIP FOR JET NEEDLE

54531629000

$3.08

60

DIAPHRAGM COV. KEIHIN REAR 03

60031027100

Unavailable

63

HEATING ELEMENT CARB. HEAT. 05

60031003000

$15.41

64

TEMPERATURE SENSOR 05

60031004000

$16.03

65

WIRING HARNESS CARB. HEAT. 05

62511052000

$11.93

66

HH SCREW DIN933 M4X6

0933040063

$1.49

70

CARBURETOR TRUMPET SUPPORT 03

60031041000

$2.91

71

AH SCREW DIN0912-M 4X16

0912040163

$2.05

72

CARBURETOR TRUMPET 03

60031040000

$6.96

77

HOSE 6X12 PER METER

60007116001

Unavailable

78

CLAMP YDNAC 10128 12MM

58031005000

$3.08

79

HOSE CONNECTION

63031013000

$45.63

80

O-RING

63031013001

$3.48

81

SLEEVE

63031013004

$4.29

82

SUPPORT HOSE CONNECTION

63031013002

$17.54

83

SCREW

63031013003

$2.27

90

SLIDE STOP LC8 SM 25KW

62531029344

$12.28

99

GASKET SET KEIHIN 03

60031099000

$192.13
