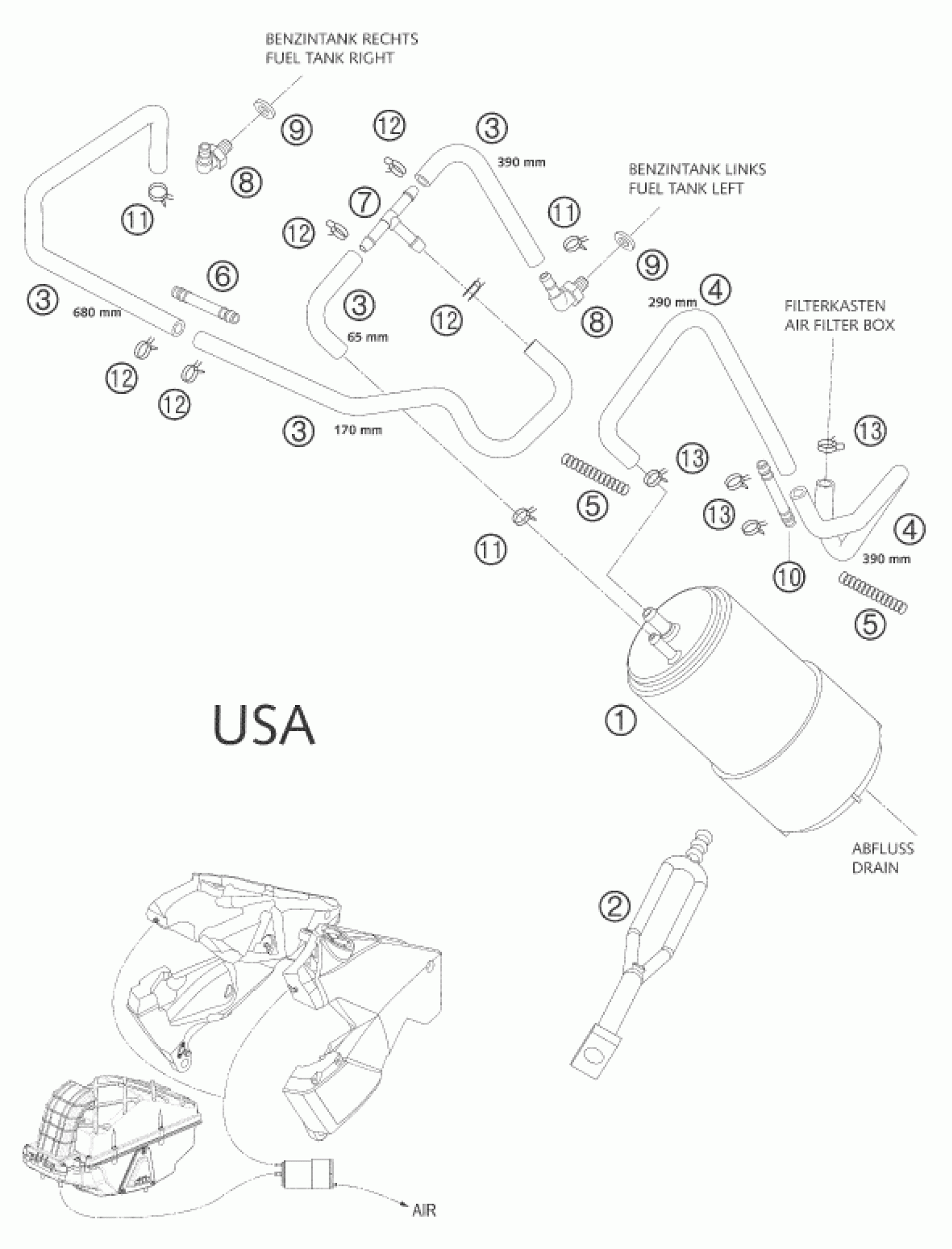

KTM 950 ADVENTURE SILVER 2003 EVAPORATIVE CANISTER Diagram

#

Description

Price

1

EVAP.CANISTER FILTER TYPE AK47

58715001000

Unavailable

2

RUBBER L=145MM

50303018000

Unavailable

3

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

4

HOSE NBR 7X11 PER METER

60015019001

Unavailable

5

PRESSURE SPRING 0,9MM

58036006100

Unavailable

6

HOSE CONNECTOR GS6 03

60015021000

Unavailable

7

T-connector TS-6 03

60015022000

Unavailable

8

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

Unavailable

9

GASKET FOR CONNECTING PIECE 03

60007024050

Unavailable

10

HOSE CONNECTOR 8MM 03

60007015010

Unavailable

11

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

12

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

13

CLAMP YDNAC 10128 12MM

58031005000

Unavailable
