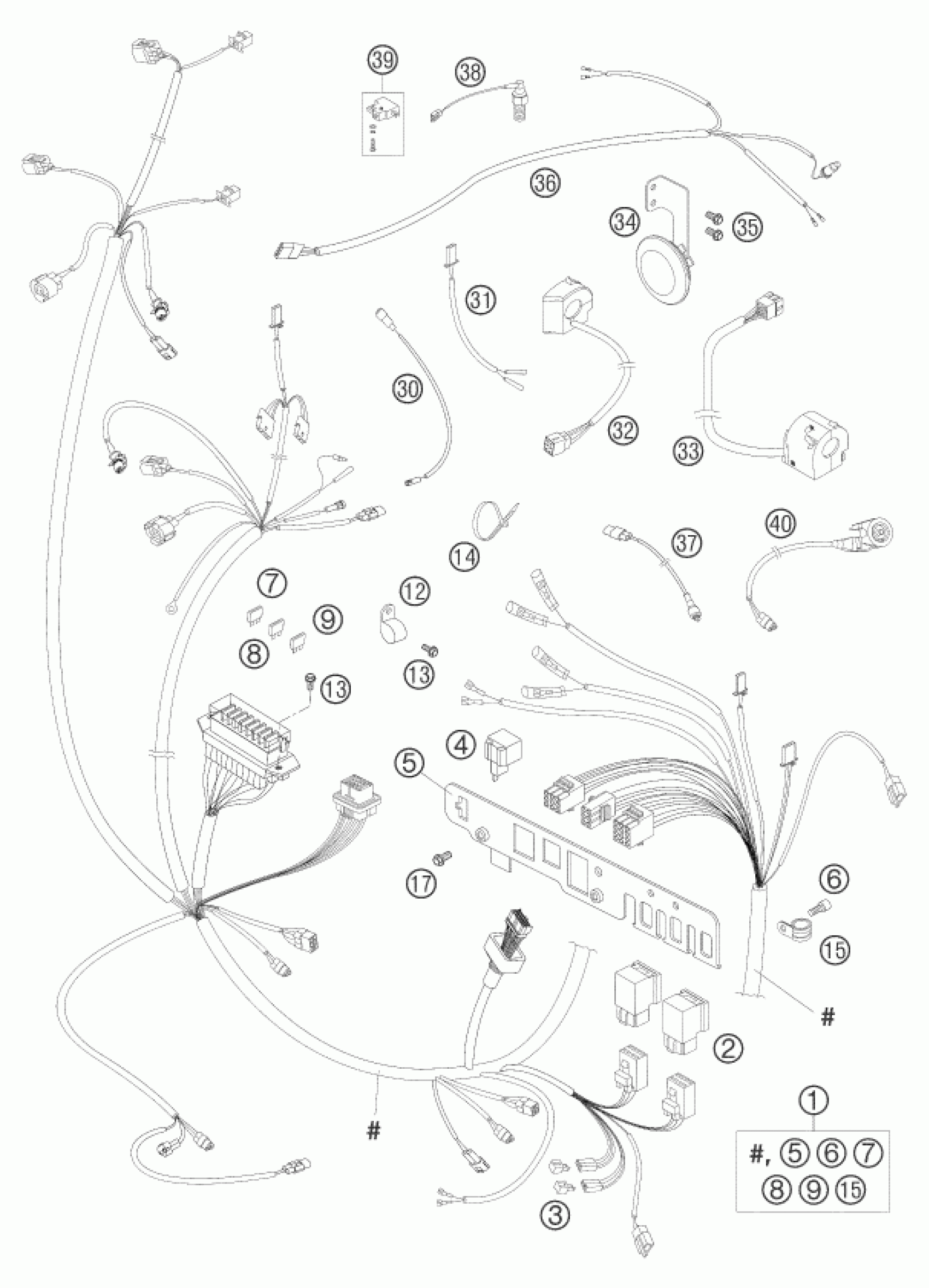

KTM 950 ADVENTURE SILVER 2003 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS LC8 ADV.03

60011075000

$447.78

2

STARTER RELAY '96

58411057000

$22.82

3

DIODE S3H-15 97

58411096100

$9.81

4

FLASHER UNIT 97

44611207200

$49.83

5

BRACKET FOR PLUGS LC8 ADV. 03

60011083000

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

$2.05

7

FUSE 5 A 2003

58011109105

Unavailable

8

Plug-in fuse, big 10A

58011109110

Unavailable

9

FUSE 15 A

58011109115

Unavailable

12

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable

13

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

14

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

14

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

15

CLAMP RSGU 15/12

49007439000

$5.23

17

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

30

OIL-PRESSURE SWITCH CABLE 03

60011092000

$4.11

31

FLASHER CABLE FRONT 03

60011025000

$5.88

32

START-STOP SWITCH/LIGHT SW. 03

60011074000

$100.97

32

START-STOP SWITCH 03

60011074100

$71.99

33

LIGHT SWITCH A.D. 03

60011070000

$159.97

34

DC HORN 12V 03

60011060000

$23.85

35

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

36

WIRING HARNESS REAR LC8 ADV.03

60011076000

$15.05

37

CLUTCH SWITCH 03

58411049100

$54.32

38

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

39

BRAKE LIGHT SW. FRONT CPL. 03

60011050000

$45.62

40

SIDE STAND SWITCH 03

60011045000

$109.57
