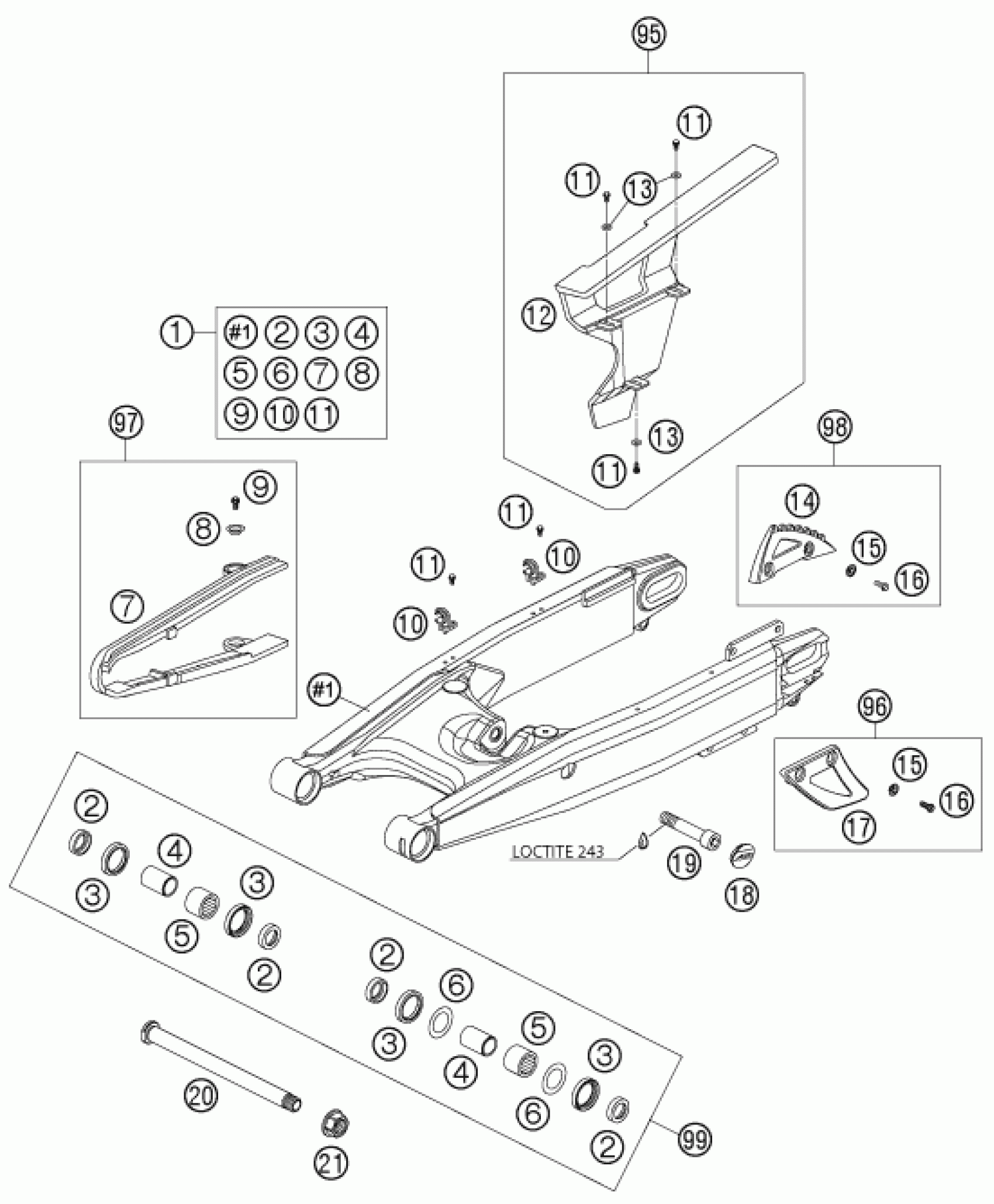

KTM 950 ADVENTURE SILVER 2003 SWING ARM Diagram

#

Description
Price

1

SWINGARM CPL. ''G''

60004030044

Unavailable

2

Bucket f. shaft seal ring 03

60004034000

Unavailable

3

Radial shaft seal 30X40X7

0760304073

Unavailable

4

INNER RING JR20X25X38,5 03

60004032000

Unavailable

5

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

6

Stop disk 03

60004033000

Unavailable

7

CHAIN SLID. GUARD SWINGARM 03

60004066000

Unavailable

8

BUCKET

72210079000

Unavailable

9

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

10

RETAINING CLAMP FOR BRAKE HOSE

54611076000

Unavailable

11

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

12

CHAINGUARD 03

60004061000

Unavailable

13

washer DIN 9021 A - 5.3

0021050003

Unavailable

14

REAR SPROCKET GUARD 03

60004075000

Unavailable

15

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

16

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

17

CHAIN GUIDE 03

60004070000

Unavailable

18

PLUG SWINGARM 03

60004041000

Unavailable

19

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

20

SWINGARM BOLT M19X1,5 L=268

60004037000

Unavailable

21

COLLAR NUT M19X1,5 WS=27MM

60004038000

Unavailable

95

CHAIN PROTECTION KIT ADV 07-12

60004060010

Unavailable

96

CHAIN GUIDE KIT REAR

60004070010

Unavailable

97

CHAIN GUARD KIT ADV

60004066010

Unavailable

98

SPROCKET GUARD KIT

60004075010

Unavailable

99

SWINGARM REP. KIT

60004230010

Unavailable
