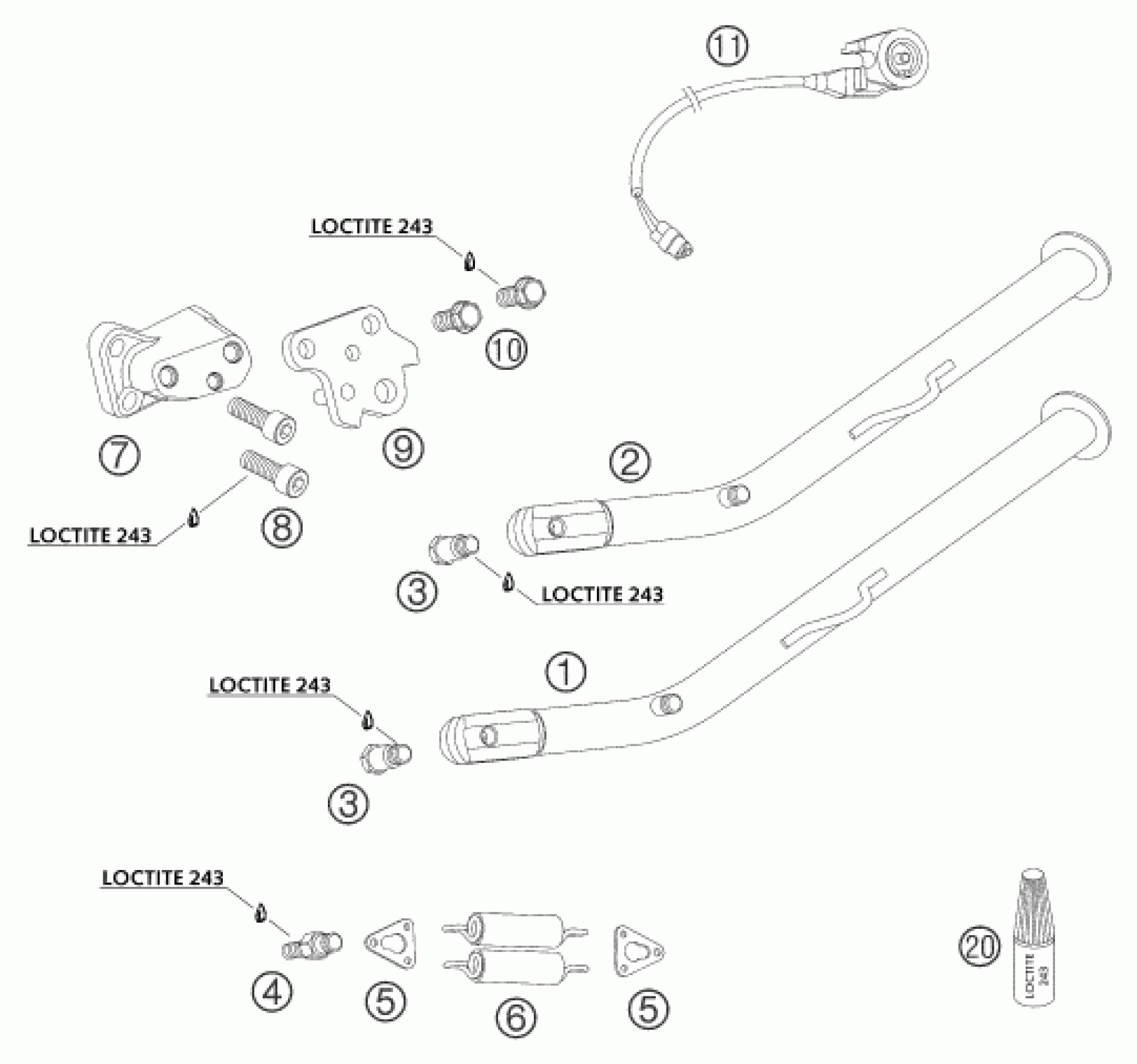

KTM 950 ADVENTURE SILVER 2003 SIDE / CENTER STAND Diagram

#

Description

Price

1

SIDESTAND LC8 ADV.S L=349MM 03

60003023000

$104.49

2

SIDESTAND LC8 ADV. L=319MM 03

60003023100

$91.04

3

SCREW FOR SIDE STAND M10X26,7

58203027200

$21.50

4

SCREW SIDE STAND SPRING 03

60003028001

$11.69

5

SUPPORT SIDE STAND SPRING 03

60003028003

$4.35

6

SPRING FOR SIDE STAND 03

60003024000

$6.63

7

SIDE STAND BRACKET 03

60003026000

$743.04

8

AH SCREW DIN0912-M10X30

0912100303

$2.05

9

SIDE STAND PICKUP CPL. 03

60003023001

$41.76

10

HH COLLAR SCREW M10X24 WS=13

0015100243

$2.05

11

SIDE STAND SWITCH 03

60011045000

$109.57

20

LOCTITE 243 BLUE 5 ML

6899785

$28.04
