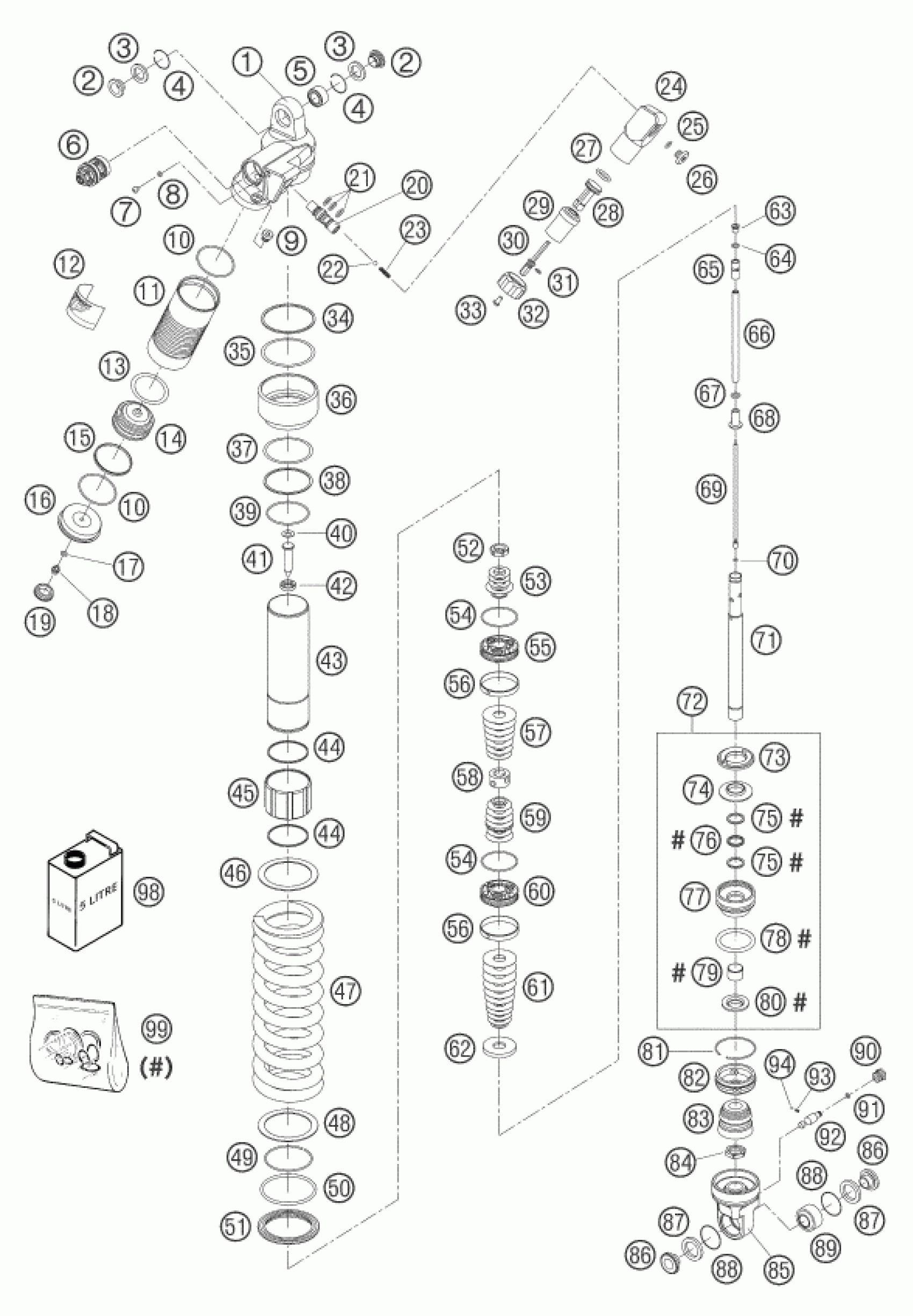

KTM 950 ADVENTURE SILVER 2003 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS. CASE H21 LC8 90DEG

50180360

Unavailable

2

Bearing bush 14x15/18/24,5x10,

50180366

$13.94

3

Seal ring 19,5x26x3

46180003

$5.60

4

Round-wire snap ring 25x1

50180168

$1.49

5

Ball joint bearing 15x25x13

50180005

$29.35

6

50180213S4

Unavailable

7

Cross flat head screw M4x6

48600058

$1.82

8

O-ring 3,7x1,6 NBR70

48600009

$1.49

9

HS cylinder-head screw R1/8 l8

50180095

$2.42

10

O-ring 48x2 NBR70 siliconized

46810016

$1.49

11

RESERVOIR SCREW L=123,5 D=52

50180237

Unavailable

12

STICKER WP KTM

52000044

$3.62

13

O-ring 41x5 Viton75

46180014

$2.05

14

Piston 52mm reservoir

46180002

$43.66

15

Pistonring 47,5x50,5x3,9

46180015

$10.00

16

RESERVOIR CAP D=58

50180344

$117.64

17

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

18

HS lock screw M5x6

36120151

$1.86

19

Rubber cap do not open 22x5,5

46811208

$3.08

20

BOLT PA

50180376

Unavailable

21

O-ring 10x2 NBR70 siliconized

35480083

$1.49

22

Steel ball d5

40540440

$1.49

23

Spring (3,2) 17

46810332

Unavailable

24

BODY PA

50180374

Unavailable

25

O-ring 7x2 NBR70

35480085

$1.49

26

VENTILATION PLUG R1/8 D=20

50180382

Unavailable

27

O-ring 17x3 NBR70 siliconized

46810003

$1.82

28

PISTON PA

50180375

Unavailable

29

ADJUST PISTON

50180378

Unavailable

30

ADJUST ADAPTOR

50180377

Unavailable

31

O-ring 6x1,5 NBR70

48600044

$1.49

32

Adjuster PA black

50180381

$15.35

33

HS flat head screw M5x10

46811771

$3.31

34

Washer 64,6x70x1,4 support rin

50180370

$10.57

35

O-ring 63,09x3,53 NBR70

50180369

$4.64

36

PA outside ring 58.13/70x61.4/

50180371

$64.65

37

O-ring 57,15x3,53 NBR70

50180372

$4.14

38

Washer 58x63.4x1.4 support rin

50180373

$10.28

39

O-ring 52x2 NBR70

50180097

$2.05

40

spring washer 8,2x16x0,6

50180177

$2.05

41

Needle 10.2x37

50180300

Unavailable

42

SCREW CAP M20x1, D=11

50180271

$23.81

43

Tube 50x180 PDS

50180367

$74.24

44

spreader ring 50X1,5

50180133

$7.40

45

Spring guide 54,15x60x40

50180081

$5.61

46

Intermediate washer spring 61,

50180114

$3.08

47

SPRING 140-265 (62) D=15,0

91210022

$125.26

47

SPRING 140-255 (62) D=15,0

91210028

Unavailable

48

Interm. ring spring ret. H=3.5

50180402

$55.27

49

Round-wire snap ring 58,5x2

50180273

$2.05

50

O-ring 66,27x1,78 Viton70

50180352

$3.08

51

SPRING RETAINER D=80 2003

50180355

$74.57

52

Piston rod nut 16x1

50180141

$9.06

53

WASHER 16X21X1

50180210

$6.26

53

Shim 21x36x0,25

50180209

$11.87

53

Shim 16x28x0,2

50180054

$3.08

54

O-ring 44x,17x1,78 Viton70

50180099

$2.05

55

Piston 16,05x49,6x13,5 4,5/7

50180197

$45.62

56

Piston ring 47,95x49,95x8

50180135

$17.76

57

SHIM 16X32X0,30

50180074

$3.08

57

SHIM 16X34X0,30

50180075

$3.08

57

SHIM 16X36X0,30

50180076

$3.08

57

SHIM 16X38X0,25

50180068

$3.08

57

SHIM 16X40X0,25

50180069

$3.08

57

SHIM 16X42X0,25

50180070

$3.08

57

SHIM 16X44X0,20

50180062

$3.08

58

SANDWICH BUSH D25XD16X14,5/D

50180269

$32.35

59

SHIM 16X32X0,15

50180047

$3.08

59

Shim 32,25x36x0,30

46811637

$2.05

59

SHIM 16X22X0,10

50180008

$3.08

59

SHIM 16X36X0,20

50180058

$3.08

59

Shim 16x34x0,2 y5

50180057

$3.08

59

Shim 16x32x0,2

50180056

$3.08

59

Shim 16x21x0,30

50180035

$2.05

60

Piston 16x49,6x13,5

50180311

$47.68

61

Shim 16x22x0,30

50180036

$2.05

61

SHIM 16X30X0,25

50180064

$3.08

61

SHIM 16X32X0,25

50180065

$3.08

61

SHIM 16X34X0,25

50180066

$3.08

61

SHIM 16X36X0,20

50180058

$3.08

61

SHIM 16X38X0,20

50180059

$3.08

61

SHIM 16X40X0,25

50180069

$3.08

61

SHIM 16X42X0,25

50180070

$3.08

61

SHIM 16X44X0,25

50180071

$3.08

62

SHIM REBOUND H3 '99

50180161

$31.37

62

SHIM REBOUND H16 '03

50180401

$121.42

63

BUSH M8X1

50180200

$14.02

64

O-ring 7x1,5 Viton70 green

50180157

$1.49

65

NEEDLE SEAT M8X1

50180201

$18.99

66

Tube 5,5x138

50180363

Unavailable

67

O-ring 8x2 NBR70

48600049

$1.49

68

Bush 5/8,2/7x9,5/16,8x23

50180279

$4.11

69

Needle 4x161

50180364

$10.46

70

O-ring 2,2x1,6 Viton75 green

46811265

$1.49

71

PISTON ROD D=18 M16X1

50180362

$190.00

72

ADAPTOR CPL. D=50, H=28,5

50180349S1

$219.19

73

Rubber pad rebound 27x48x8 NBR

50180107

$4.11

74

STEEL DISC 18,5X43,7X6

50180304

$19.47

75

Washer 18x22,5x1,5 plastic

50180102

$8.59

76

X-ring 18x2,62 Viton70

50180101

$15.70

77

ADAPTOR D=50, H=28,5

50180349

Unavailable

78

O-ring 41x5 NBR70

50180103

$1.49

79

Guide bushing 18x20x12

46180119

$6.35

80

Dirt scarper 18mm

50180082

$34.03

81

Round-wire snap ring 53x1,75

50180126

$1.49

82

Cap 50,1x17,5 h6

50180165

$43.98

83

Rubber pad 17,2x45,2x40 black

50180276

$8.41

84

HH locking nut M18x1 h5 WAF24

50180283

$11.86

85

Footpart M18x1 h54 natural

50180358

$85.47

86

Bearing bush 14x16/21,8/29x14

50180365

$14.95

87

Seal ring 22x32x4

50180159

$2.73

88

Round-wire snap ring 32x1

50180175

$3.64

89

Ball joint bearing 16x32x21

50180179

$103.82

90

HH screw M14x9

50180281

$28.98

91

O-ring 4x1,5 NBR70

50180222

$1.49

92

ADJUSTING SCREW 80 DEG., L=39

50180280

$20.99

93

SPRING D=2,9, L=6,2

40540602

$3.08

94

Steel ball d3

40540603

$1.49

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

$123.66

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59
