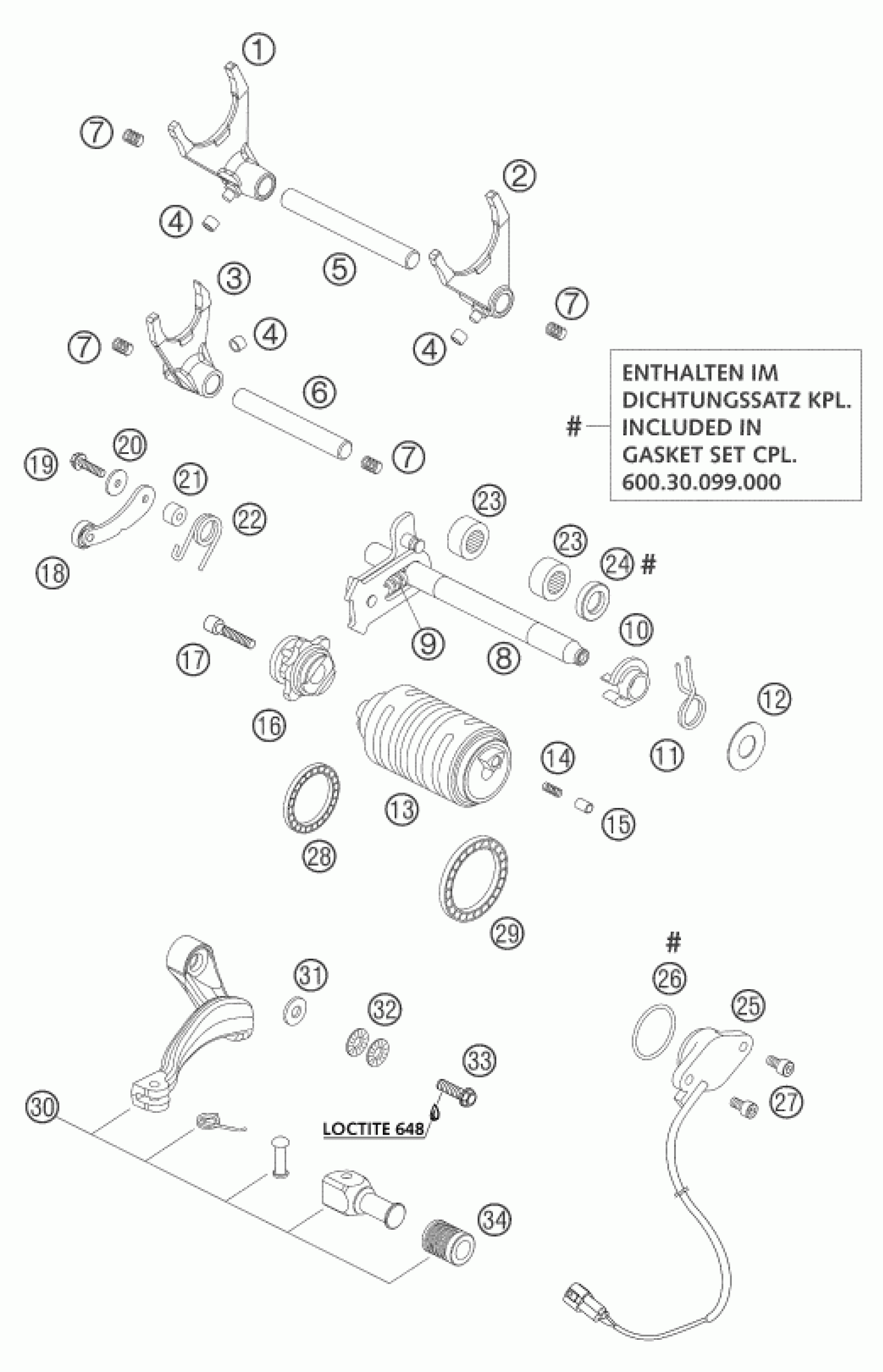

KTM 950 ADVENTURE SILVER 2003 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK 1-4 GEAR LC8 03

60034001000

$65.55

2

SHIFT FORK 2-3 GEAR LC8 03

60034002000

$61.05

3

SHIFT FORK 5-6 GEAR LC8 03

60034003000

$64.76

4

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

5

SHIFT RAIL 11,8X105MM

59034020000

$13.36

6

SHIFT RAIL 11,8X89MM

59034019000

$12.80

7

PRESSURE SPRING 0,9MM

58038023200

$4.11

8

SHIFT SHAFT CPL. 03

60034005044

$56.70

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

SPRING GUIDE

54634020000

$6.44

11

RETURN SPRING 2,2MM '95

54634014100

$6.63

12

STOP DISK 14X30X1

54634050000

$2.05

13

SHIFT ROLLER STEEL 03

60034012100

$110.66

14

CONTACT SPRING 03

60034014000

$1.49

15

CONTACT BOLT 03

60034037000

$4.11

16

SHIFT ARRESTING CPL. 03

60034015044

$42.35

17

AH SCREW DIN6912 M 6X30

0984060302

$1.49

18

ARRESTING LEVER CPL. 03

60034024044

$44.78

19

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

20

WASHER DIN7349-5X15X2

0349000050

$1.49

21

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

22

ARRESTING LEVER SPRING 03

60034023000

$2.05

23

needle sleeve HK 1412 14x20x12

54632095000

$7.00

24

radial shaft seal 14x24x6 B

0760142460

$9.25

25

GEAR-POSITION SENSOR 03

60011023000

$46.74

26

O-RING 27,5X2,5 NBR

0770275025

$1.49

27

AH SCREW DIN0912-M 5X10

0912050103

$1.49

28

BALL BEARING 61805 C3

0625618050

$43.94

29

GROOVED BALL BEARING 6808 JRC3

0625068080

$32.16

30

SHIFT LEVER CPL. 03

60034031044

$130.14

31

STEEL WASHER 6,4X17X3

50232050001

$5.23

32

Pair of washers M6 NORDLOCK

50233041000

$4.11

33

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

34

RUBBER

36205018000

$5.23
