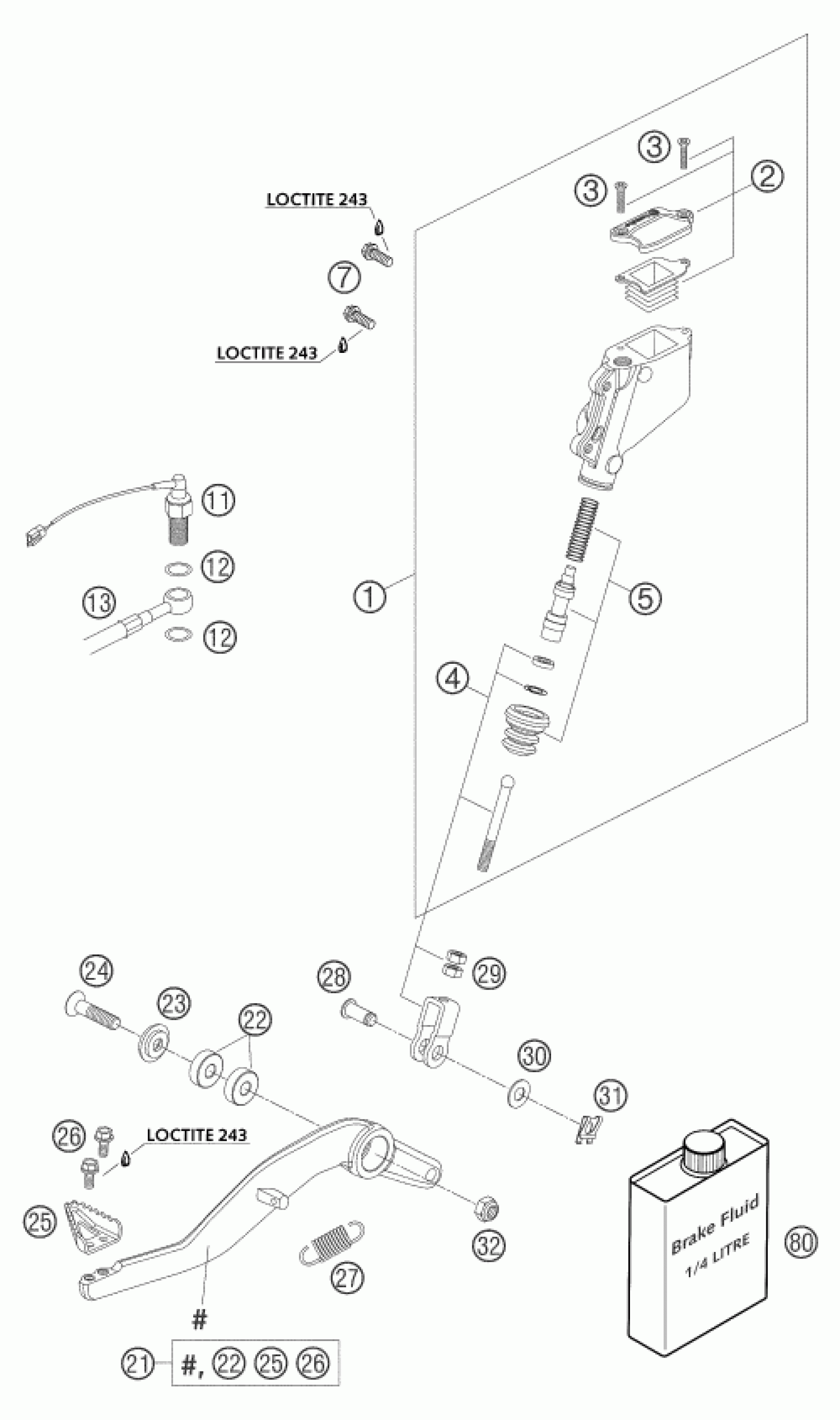

KTM 950 ADVENTURE SILVER 2003 REAR BRAKE CONTROL Diagram

#

Description
Price

1

MAIN BRAKE CYLINDER CPL. 03

60013060000

Unavailable

2

COVER MAIN BRAKE CYLINDER CPL

60013059000

Unavailable

3

FLAT HEAD SCREW DIN0965-M 4X16

0965040161

Unavailable

4

PUSH ROD CPL. '03

60013056044

Unavailable

5

REPAIR KIT PISTON 03

60013061000

Unavailable

7

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

11

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

12

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

13

BRAKE HOSE REAR 03

60013072000

Unavailable

21

FOOT BRAKE LEVER CPL. 03

60013050044

Unavailable

22

Grooved ball bearing 608 2RS C

0625006087

Unavailable

23

SPECIAL WASHER ALU 8X24MM 03

60003061000

Unavailable

24

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

25

STEP PLATE FOOT BRAKE LEVER 03

60013051000

Unavailable

26

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

27

RETURN SPRING FOR BRAKELEVER

54603062000

Unavailable

28

BOLT F. LINK FORK 8X20X16,5

60013057000

Unavailable

29

Hex. nut DIN 934 M6

0934060003

Unavailable

30

washer DIN 125 A -8.4

0125080003

Unavailable

31

SECURING CLIP D=8MM 03

60013058000

Unavailable

32

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
