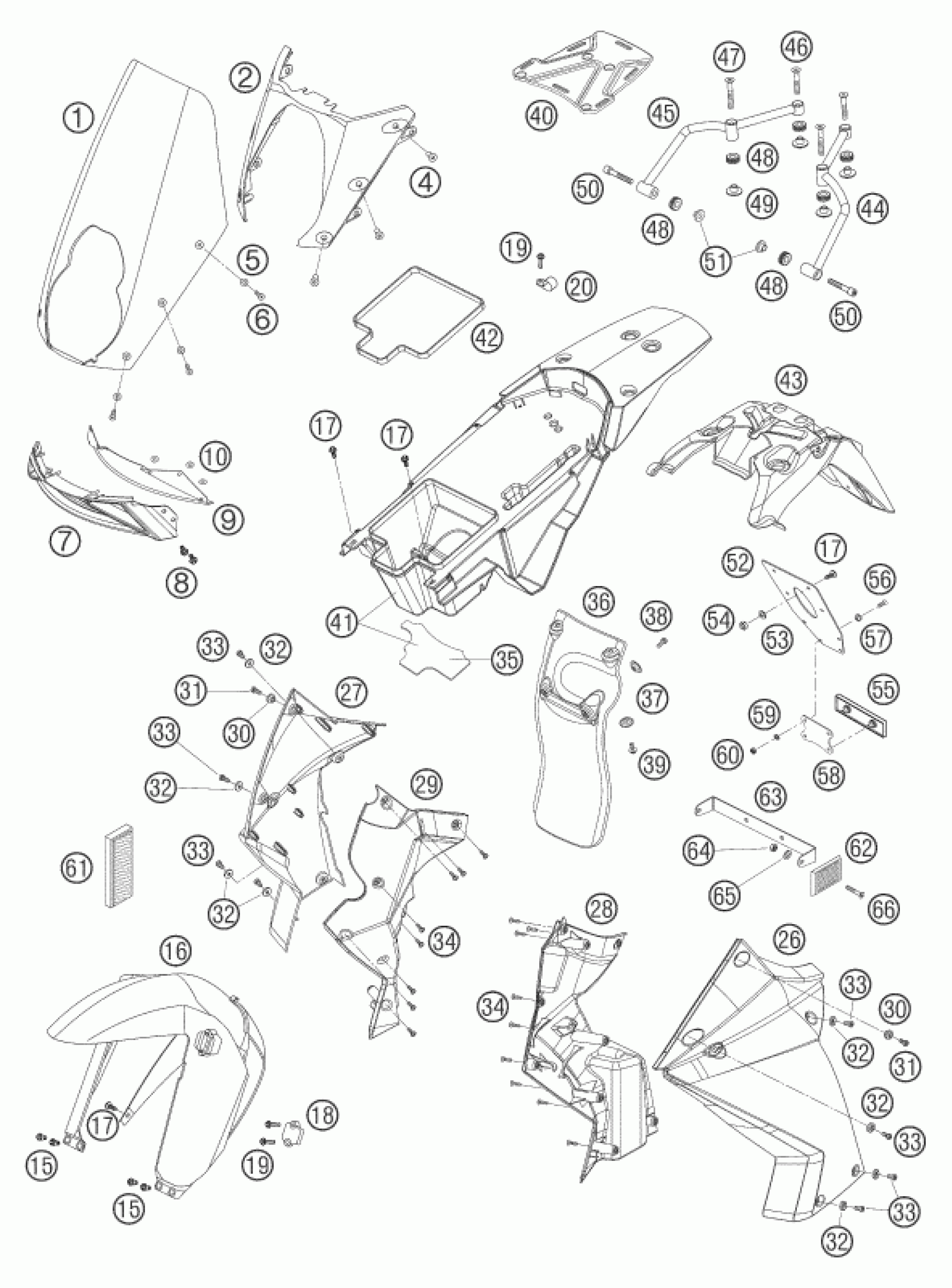

KTM 950 ADVENTURE SILVER 2003 MASK, FENDERS Diagram

#

Description
Price

1

FAIRING SCREEN 03

60008008000

$89.28

2

HEAD LIGHT MASK 03

60008001000

$36.92

4

blind plug nut M5 WN16A

60008008050

$3.73

5

SPECIAL WASHER D=12MM 03

60008046000

$4.11

6

O.H.SCREW DIN0966-M 5X20 BLACK

0966050208

$2.05

7

AIR INTAKE 03

60008011000

$24.02

8

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

9

AIR INTAKE GRILL 03

60008011060

$29.80

10

SPRING NUT 012410 03

60008011050

$1.49

15

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

16

FENDER FRONT ORANGE 03

6000801000070

$330.48

16

FENDER FRONT SILVER 03

6000801000084

$204.25

17

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

18

CLAMP F. SPEED CABLE ORANGE 03

6000802500070

$21.24

18

CLAMP F. SPEED CABLE SILVER 03

6000802500084

$21.24

19

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

20

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

26

SIDE COVER L/S ORANGE 03

6000805000070

$292.16

26

SIDE COVER L/S SILVER 03

6000805000084

Unavailable

27

SIDE COVER R/S ORANGE 03

6000805100070

$320.07

27

SIDE COVER R/S SILVER 03

6000805100084

$320.07

28

INNER COVER L/S 03

60008050050

$39.82

29

INNER COVER R/S 03

60008051050

$40.57

30

BUSH F. SIDE COVER 03

60008052000

$5.51

31

AH SCREW DIN6912-M 6X16

0984060163

$2.05

32

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

33

AH SCREW DIN6912 M6X12

0012060123

$2.05

34

SCREW FOR PLASTIC 50X12

0016050121

$2.05

35

THER.PROT.FOIL RR FENDER 03

60008013060

$9.47

36

SPLASH PROTECT. LC8 03

60006010000

$13.36

37

BUCKET

72210079000

$3.00

38

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

39

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

40

BAGGAGE RACK LC8 03

60012010000

$104.34

41

REAR FENDER BLACK 03

60008013000

$58.92

42

PROFILED GASKET L=735 MM 03

60008013070

$15.10

43

NUMB.PLATE CARRIER 03

60008015000

$19.33

44

HANDLE L/S 03

60012008000

$61.25

45

HANDLE R/S 03

60012009000

$72.45

46

FLAT HEAD SCREW DIN7991-M 8X50

0991080503

$2.05

47

FLAT HEAD SCREW DIN7991-M 8X65

0991080653

$2.05

48

RUBBER SLEEVE D=12MM

41001052000

$4.11

49

COLLAR BUSHING 8,2X12X28X9 03

60012008003

$7.28

50

AH SCREW DIN912 M8X55

0912080553

$2.05

51

COLLAR BUSHING 8,2X12X20X9 03

60012008002

$4.11

52

LICENCE NUMBER SUPPORT 03

60012081000

$8.41

53

Washer DIN9021-A 6.4

0021060003

$2.05

54

Self lock. nut DIN985-M6-A2

0985060003

$2.05

55

REFLECTOR RED

58412080000

$5.23

56

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

57

WASHER 6MM

40006006000

$1.49

58

BRACKET FOR REFLECTOR

58412080050

$6.07

59

WASHER DIN0125-A 5,3

0125050003

$1.49

60

Self locking nut DIN 985 M5

0985050003

$2.05

61

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

62

SIDE REFLECTOR RED REAR

16512180100

$7.10

63

BRACKET SIDE REFLECTOR 03

60012181000

$27.95

64

SELF LOCKING NUT DIN0985-M 4

0985040003

$1.49

65

WASHER DIN9021-A 4,3

0021040003

$1.49

66

OVAL HEAD SCREW DIN966 M4X20

0966040203

$1.49
