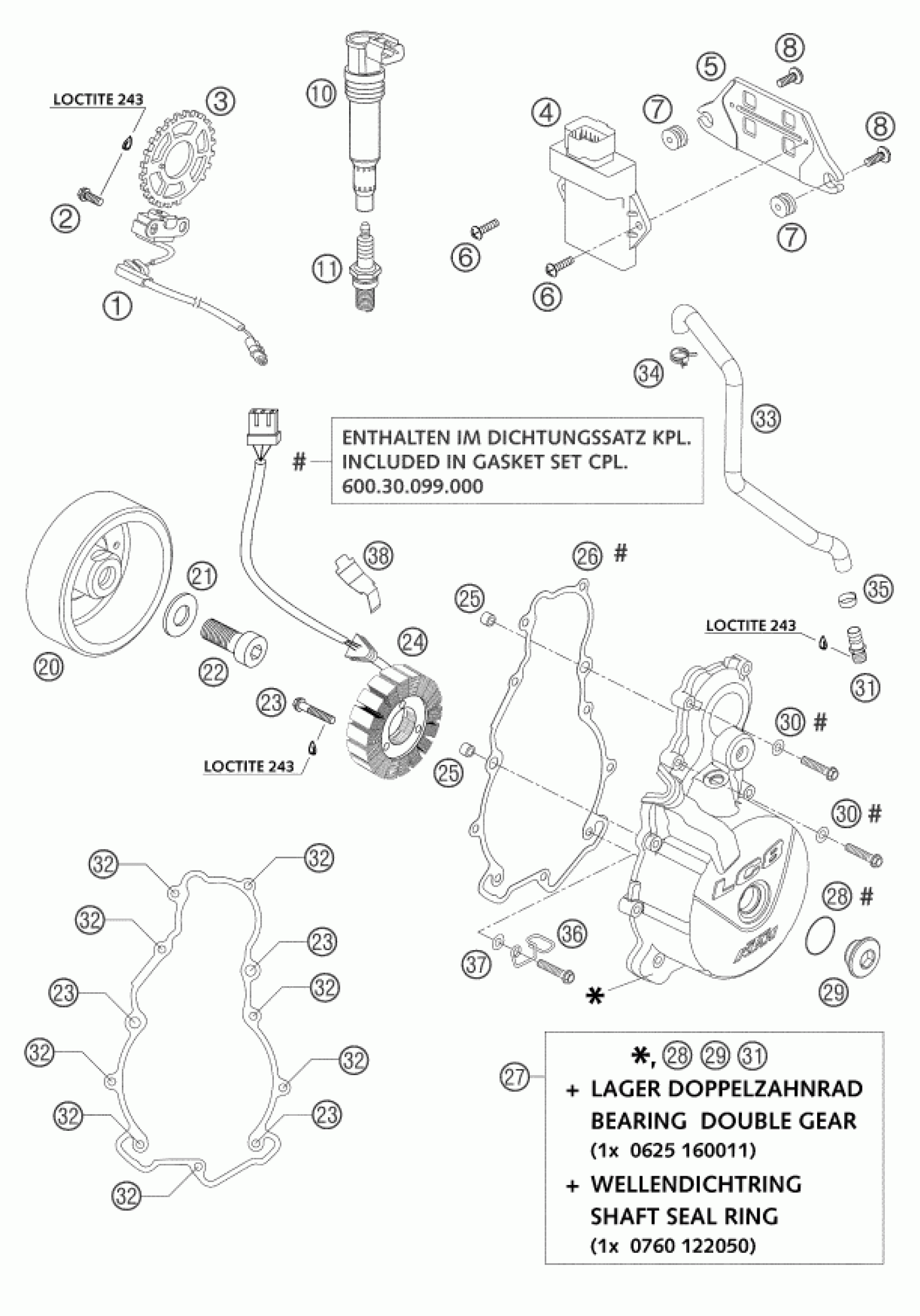

KTM 950 ADVENTURE SILVER 2003 IGNITION SYSTEM Diagram

#

Description
Price

1

PULSE GENERATOR LC8 04

60039034100

Unavailable

2

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

3

TRIGGER WHEEL 03

60039020100

Unavailable

4

DIGITALBOX LC8 03

60039031000

Unavailable

5

ADAPTER PLATE DIGITALBOX 03

60039028000

Unavailable

6

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

7

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

8

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

10

STICK COIL 03

60039006000

Unavailable

11

SPARK PLUG CR8EK

59039093000

Unavailable

20

IGNITION ROTOR 04

60039005100

Unavailable

21

WASHER 17X32X4 03

60039040010

Unavailable

22

AH SCREW DIN6912-M16X35

0912160353

Unavailable

23

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

24

STATOR 03

60039004000

Unavailable

25

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

26

IGN. COVER GASKET KLINGER SI

60030040000

Unavailable

27

IGNITION COVER CPL. 03

60030002044

Unavailable

28

O-RING 24X2,5 NBR

0770024025

Unavailable

29

SCREW PLUG M24X1,5 PA 6.6

60030094000

Unavailable

30

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

31

VENTILATION CONNECTOR M16X1,5

60030022000

Unavailable

32

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

33

ENGINE BREATHING HOSE

60030087000

Unavailable

34

CLAMP STD DN22

00049220121

Unavailable

35

VARIABLE ONE-EAR CLAMP 22,6MM

00050226706

Unavailable

36

CABLE SUPPORT 03

60011094000

Unavailable

37

WASHER DIN0125-A 6,4

0125060003

Unavailable

38

generator line bracket

60039040020

Unavailable
