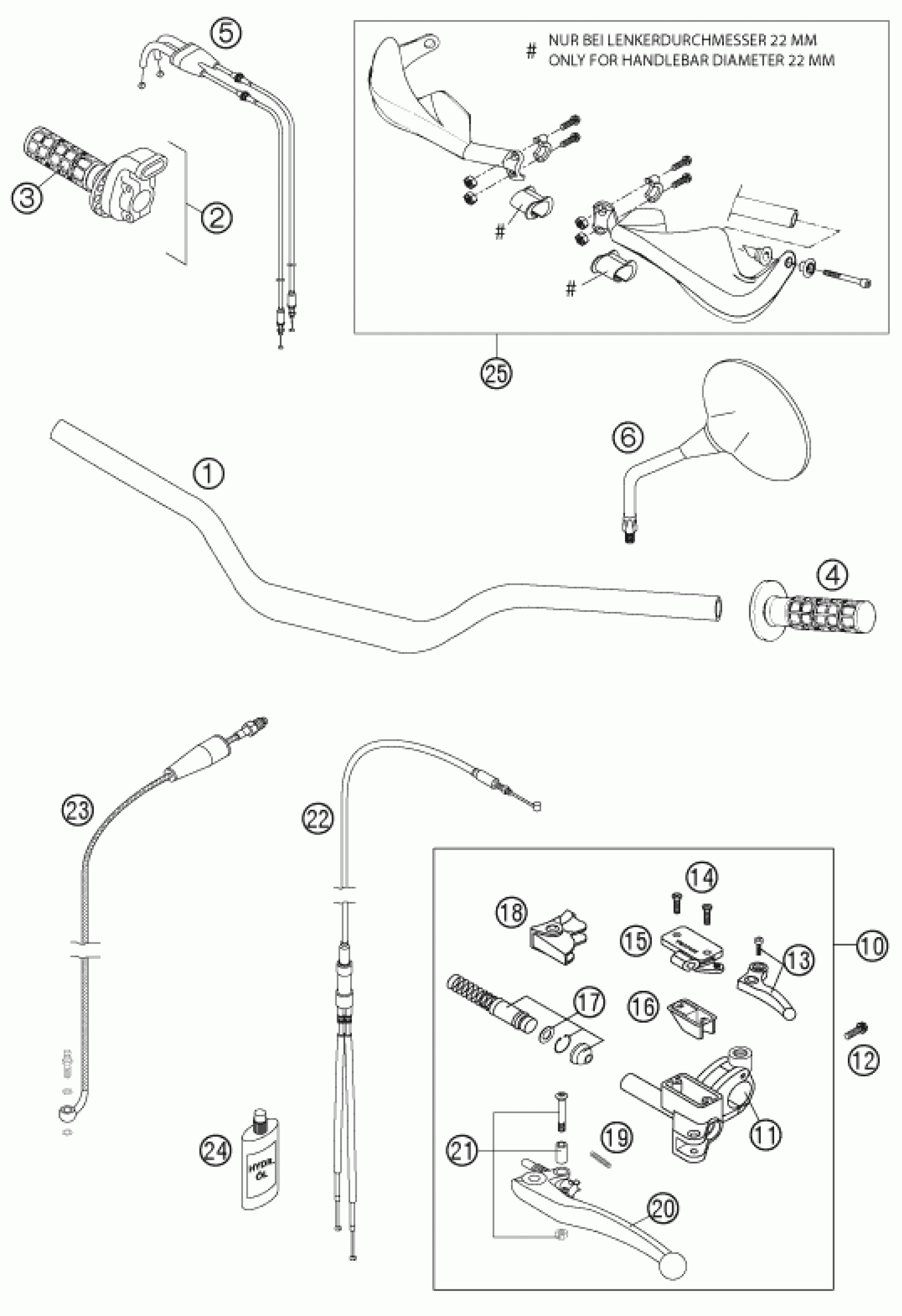

KTM 950 ADVENTURE SILVER 2003 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28MM 03

60002001000

$186.99

2

THROTTLE GRIP CPL. DUKE 2000

58702010000

$58.71

3

TWIST GRIP COVER PERFORATED

58302003100

$28.51

4

FIXED GRIP L/S PERFORATED

58302052100

$28.51

5

THROTTLE CABLE LC8 ADV 2003

60002091000

$96.48

6

Rear view mirror, left/right

58412040100

$65.63

10

MASTER CYLINDER MAGURA D=10.5

60002030000

$298.57

11

CLAMP MIRROR WITH CLAMP

60002044000

$53.38

12

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

13

LEVER CPL. RACING 2000

59002047000

$23.00

14

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

15

COVER HYD.CLUTCH WITH CHOKE 03

60002033000

$34.87

16

RUBBER FOR RESERVOIR '98

50302034000

$18.97

17

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

18

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

19

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

20

CLUTCH LEVER LONG CPL. 2003

60002031000

$64.69

21

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

22

CHOKE CABLE LC8 ADVENTURE 03

60002095000

$50.39

23

CLUTCH PIPE LC8 ADV '03

60032063100

$116.49

24

OIL FOR HYD.CLUTCH 50ML

50302036000

Unavailable

25

% HAND GUARD L/S+R/S CPL. BLAC

6000207900030

Unavailable

25

Handguard L/R cpl. orange

6000207900004

Unavailable
