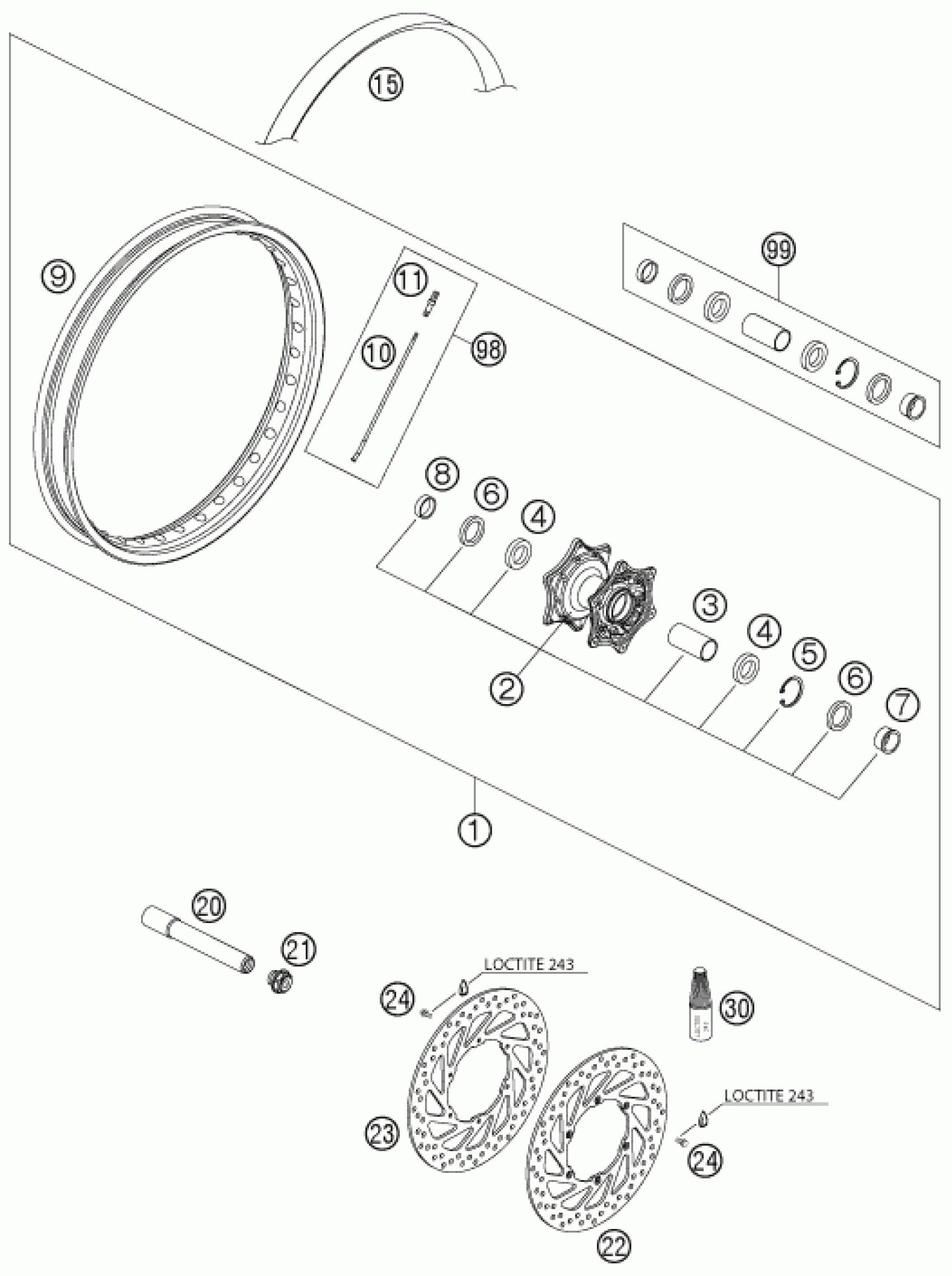

KTM 950 ADVENTURE SILVER 2003 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL 2,15X21''BL.03

6000900104430

Unavailable

1

FRONT WHEEL CPL. 2,15X21'' 0

60009001044

Unavailable

2

FRONT HUB CPL. 03

60009010044

Unavailable

3

BEAR. SPACERTUBE FRONT 03

60009014000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSH. FR. WHEEL L/S 03

60009012000

Unavailable

8

Spacer bush. fr. whee R/S 03

60009013000

Unavailable

9

FRONT RIM 2,15X21 BLACK 03

6000907000030

Unavailable

9

RIM 2,15X21

60009070000

Unavailable

10

SPOKE M5X230,5 13,5 DEG

60009071000

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

15

RIM TAPE 21'' 28/ 2MM 0

60009073000

Unavailable

20

WHEEL SPINDEL FRONT 03

60009081000

Unavailable

21

COLLAR SCREW FRONT AXLE 03

60009082000

Unavailable

22

BRAKE DISK FR. L/S D=300MM 03

60009060000

Unavailable

23

BRAKE DISK FR. R/S D=300MM 03

60009065000

Unavailable

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

30

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

98

SPOKE KIT FRONT ''21''

00050000913

Unavailable

99

FRONT WHEEL REP. KIT ADV

60009015010

Unavailable
