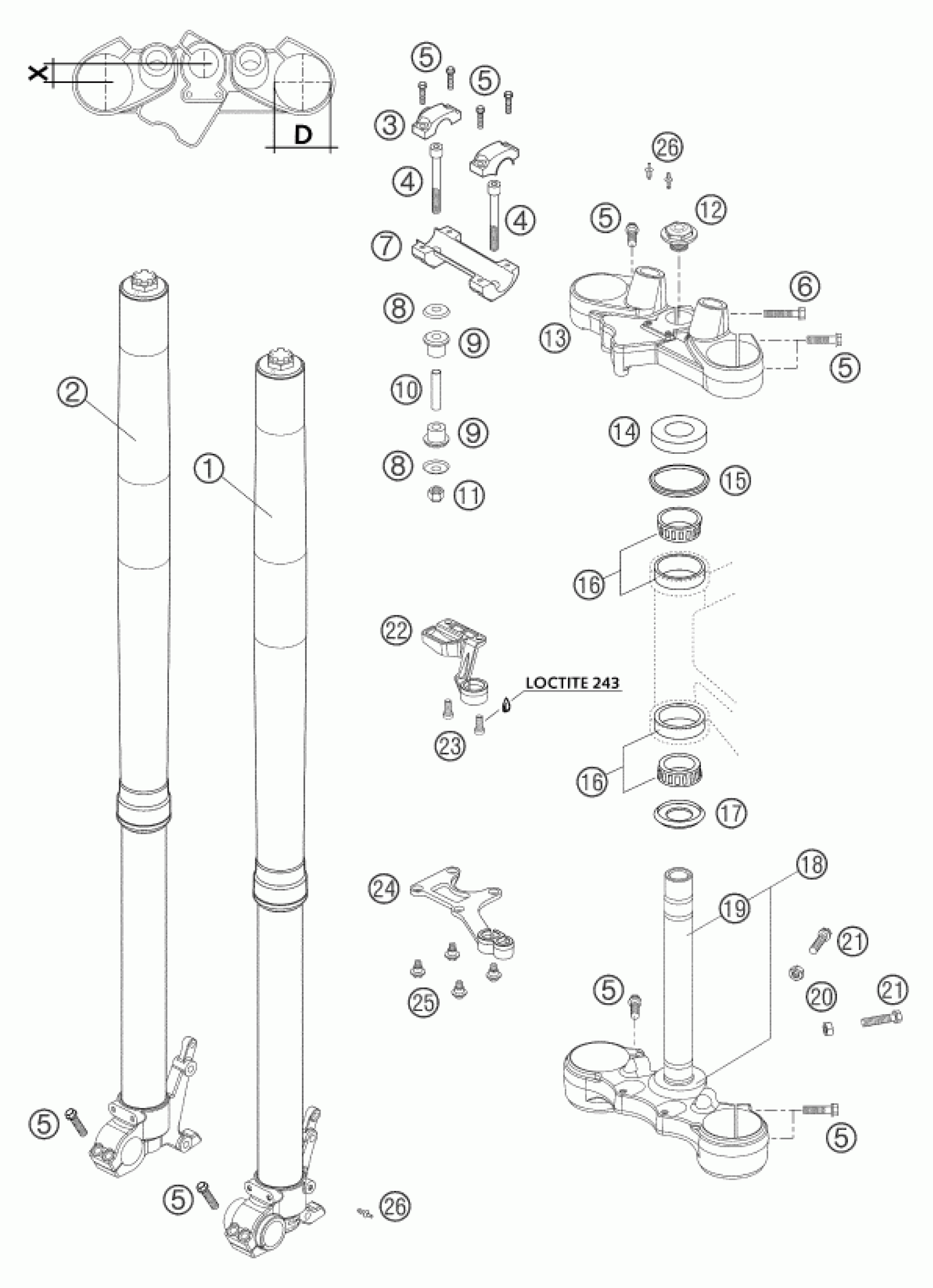

KTM 950 ADVENTURE SILVER 2003 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

3

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

1

FORK LEG L/S WP48MM LC8 03

1418X730LS

Unavailable

1

FORK LEG L/S WP48MM LC8 03

1418X758LS

Unavailable

2

FORK LEG R/S WP48MM LC8 03

1418X730RS

Unavailable

2

FORK LEG R/S WP48MM LC8 03

1418X758RS

Unavailable

4

AH SCREW DIN6912-M10X70

0984100703

$7.00

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

7

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

8

washer 10.5x32x2

56401042000

$4.11

9

rubber bushing

56401040000

$5.23

10

SPACER TUBE 10,2X12X44

56401041100

$5.88

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

$2.05

12

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

13

TOP TRIPLE CLAMP X=18MM/D=54MM

60001034018

$177.50

14

STEERING HEAD COVER

54201086000

$8.50

15

STEARING HEAD GASKET TOP

54601184000

$7.10

16

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

17

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

18

BOT.TRIPLE CLAMP CPL D=60MM

60001032018

$216.99

19

FORK TUBE LC8 ADV 03

60001033000

$65.16

20

Hexagon nut DIN934 M8

0934080003

$2.05

21

HH SCREW DIN0933-M 8X25

0933080253

$2.05

22

BRAKE HOSE GUIDE TOP 03

60001079000

$3.31

23

AH SCREW DIN6912 M6X16 SL

0012060164

$2.05

24

BRAKE HOSE GUIDE LOWER 03

60008019000

$5.48

25

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

26

PLASTIC CAP FOR M6 03

60003088000

$1.49
