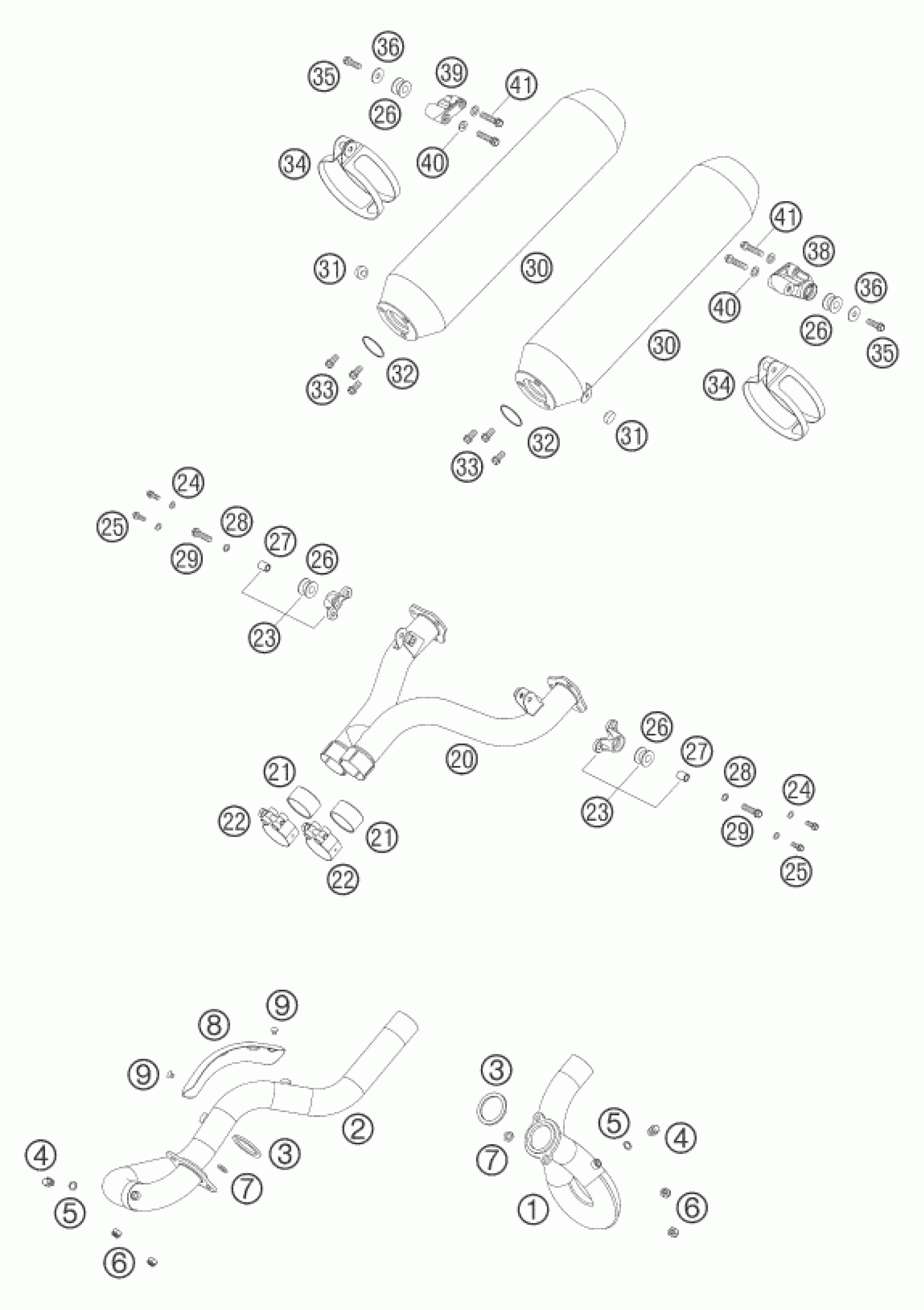

KTM 950 ADVENTURE SILVER 2003 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE REAR 03

60005008000

Unavailable

2

EXHAUST PIPE FRONT 03

60005007000

Unavailable

3

GASKET 03

60005005000

Unavailable

4

PLUG DIN0910-M 10X1

0910100003

Unavailable

5

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

6

self-locking nut M8 Cu

51010086100

Unavailable

7

washer DIN 125 A -8.4

0125080003

Unavailable

8

THERMAL SHIELD LC8 03

60005052051

Unavailable

9

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

Unavailable

20

DISTRIBUTOR TUBE LC8 03

60005048000

Unavailable

21

GRAPHIT RING 42X47X25 03

60005005001

Unavailable

22

EXHAUST CLAMP D=49MM 03

60005051000

Unavailable

23

SILENCER BRACKET CPL. 2001

58405085044

Unavailable

24

spring washer DIN 137 B - 6

0137060003

Unavailable

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

26

damp. component silicone grey

54305068100

Unavailable

27

Spacer bushing 8.4X12X16

56505069000

Unavailable

28

LOCK WASHER 8MM

36003014000

Unavailable

29

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

30

SILENCER LC8 03

60005083000

Unavailable

31

RUBBER BUFFER

54308042000

Unavailable

32

EXHAUST GASKET 03

60005005002

Unavailable

33

HH COLLAR SCREW M 8X16 WS=10

0015080163

Unavailable

34

CLAMP FOR SILENCER CPL. 03

60005095000

Unavailable

35

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

36

WASHER DIN9021-A 8,4

0021080003

Unavailable

38

SILENCER/HANDLE HOLDER L/S 03

60005085000

Unavailable

39

SILENCER/HANDLE HOLDER R/S 03

60005086000

Unavailable

40

washer DIN 125 A -8.4

0125080003

Unavailable

41

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable
