CYLINDER HEAD FRONT

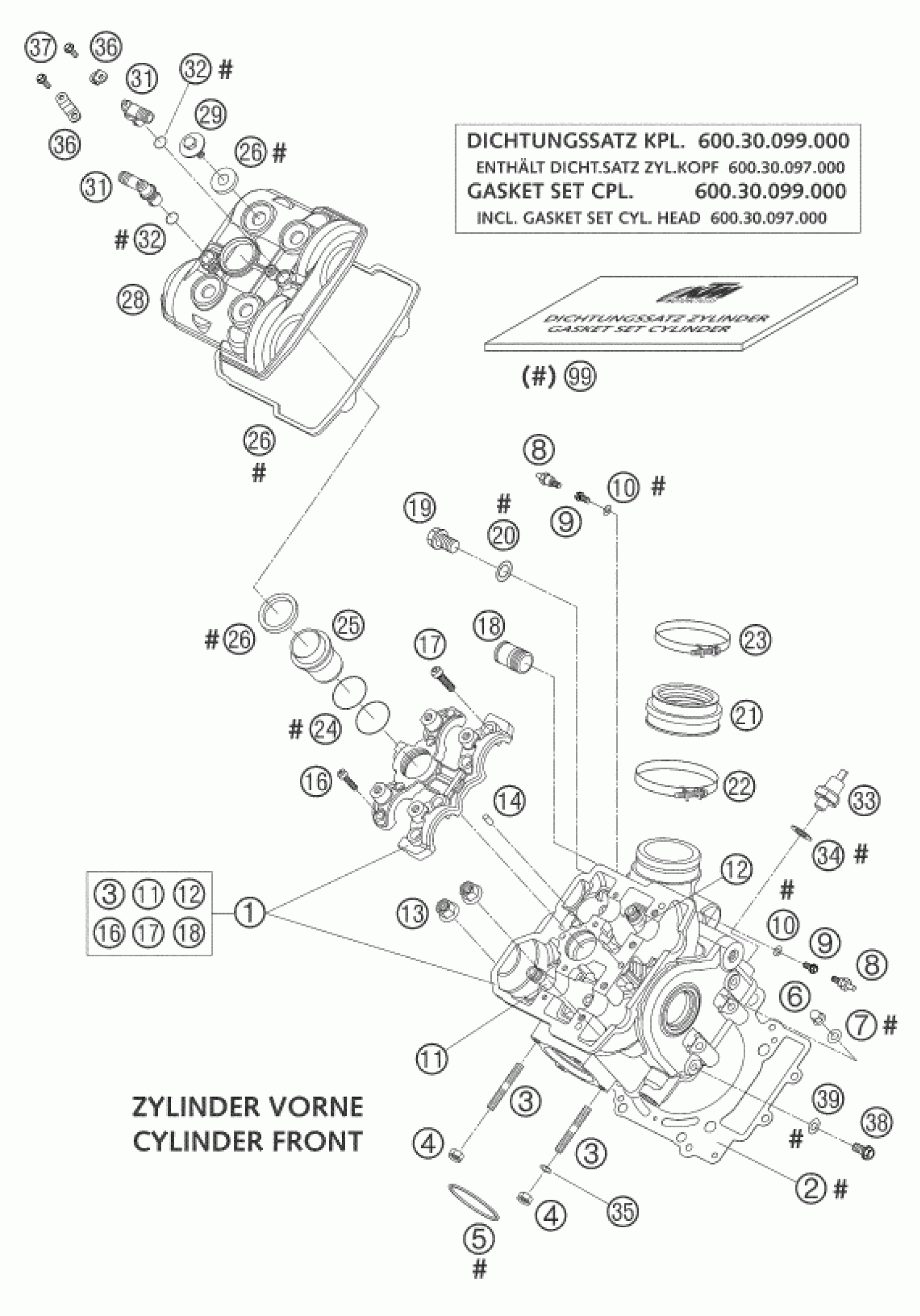

KTM 950 ADVENTURE SILVER 2003 CYLINDER HEAD FRONT Diagram
#
Description
Price
1
CYLINDER HEAD CPL. FRONT 03
60036020044
$605.76
2
CYLINDER HEAD GASKET 0,5 101MM
60030036000
$53.57
3
STUD M 8X16 10.9
0835080165
$3.08
4
self-locking nut M8 Cu
51010086100
$3.08
5
GASKET 03
60005005000
$8.41
6
CAP NUT M6 DIN1587 02
0587060000
$2.05
7
WASHER DIN0125-A 6,4
0125060003
$1.49
8
VACUUM CONECTION M6/3MM '97
58336020190
Unavailable
9
HH COLLAR SCREW M 6X10 WS=8
0015060103
Unavailable
10
CU-SEAL RING DIN7603-6X10X1
0603061001
Unavailable
11
VALVE GUIDE EXHAUST 03
60036026000
$29.07
12
VALVE GUIDE INTAKE 03
60036025000
$11.40
13
COLLAR NUT M 10 WS=13
60036078100
$3.08
14
needle roller DIN 5402 5x9.8
0402050980
$1.49
16
AH SCREW DIN0912-M 6X25 10.9
0912060255
$1.49
17
AH SCREW DIN7984-M 8X30 10.9
0984080305
$1.49
18
HOSE CONNECTOR M 20 X 1,5
58030010000
Unavailable
19
threaded plug DIN 908 M12x1.5
0908120153
$4.11
20
SEAL RING 12,2X17X1
0603122171
$2.05
21
INTAKE BOOT 03
60036044000
$41.60
22
HOSE CLAMP GEMI 62 MM 03
60036047100
$10.46
23
HOSE CLAMP GEMI 56MM 03
59030061100
$5.51
24
O-RING 29,87X1,78 VITON
0770298178
$2.05
25
INSERT SPARK-PLUG SHAFT LC8 03
60036075000
$21.03
26
VALVE COVER GASKET SET FR+RR
60036099000
$32.44
28
VALVE COVER FRONT 03
60036052000
$53.36
29
collar screw M 6 WS=10 03
60036052020
$3.08
31
ANGLE CONNECTOR LC8 03
60038082000
$2.05
32
O-RING 8X2 SILICONE
0770080020
$1.49
33
OIL-PRESSURE SWITCH LC8
60038091000
$20.66
34
sealing ring DIN 7603 10x14x1
0603100141
$2.05
35
washer DIN 125 A -8.4
0125080003
$1.49
36
ANGLE CONNECTOR BRACKET PANEL
60038082050
$6.07
37
SPECIAL SCREW M 5,0X10
0009050103
$2.05
38
HH COLLAR SCREW M 8X10 WS=10
0015080103
$3.08
39
SEAL RING CU DIN7603- 8X12X1
0603082121
$3.08
99
GASKET SET CYL. HEAD KPL. 03
60030097000
$283.20
