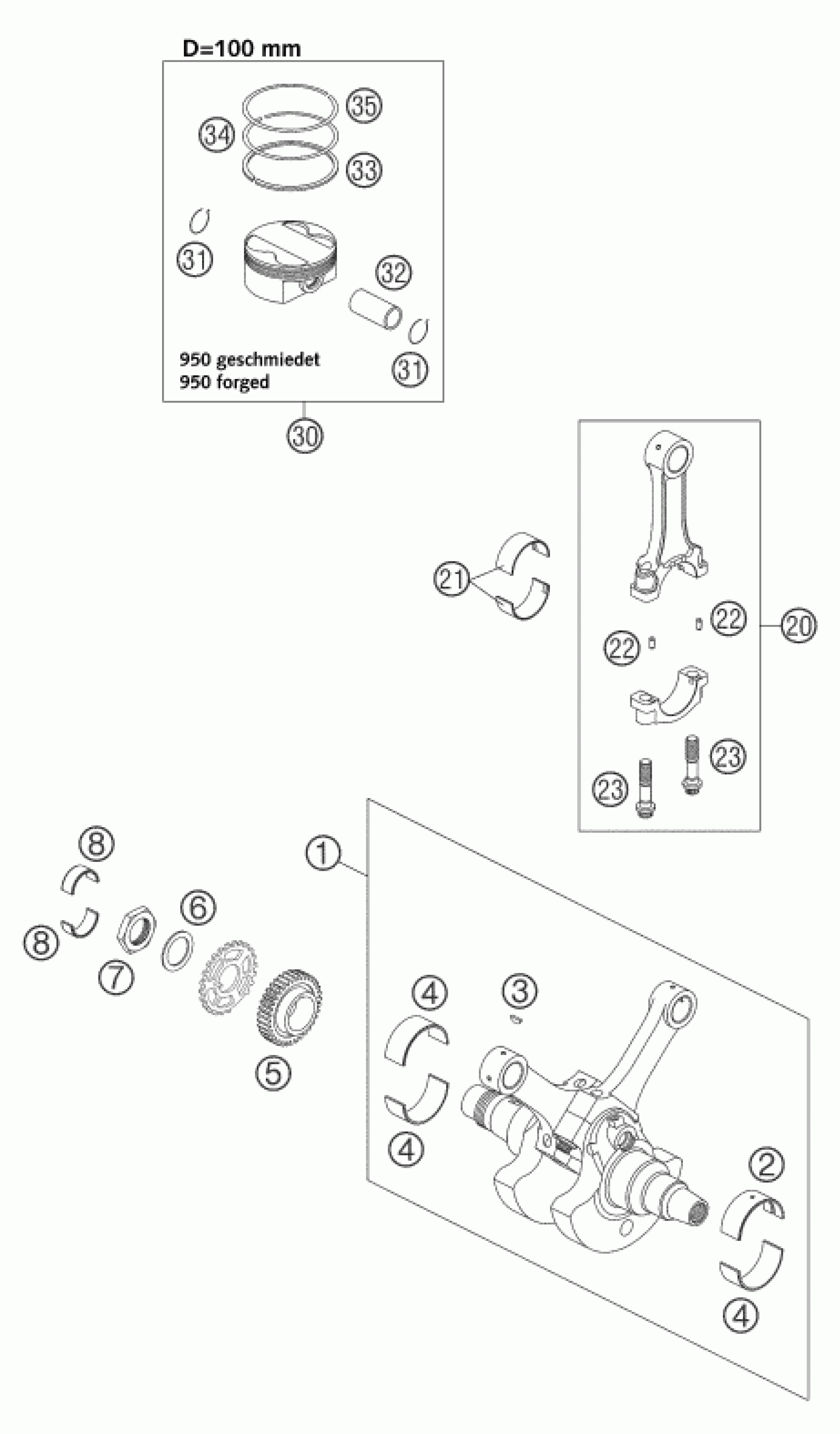

KTM 950 ADVENTURE SILVER 2003 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. LC8

60030018000

Unavailable

2

SPLIT BEAR.BUSH SIZE 1 RED 03

60030082000 1

Unavailable

2

SPLIT BEAR.BUSH SIZE 2 BLUE 03

60030082000 2

Unavailable

2

SPLIT BEAR.BUSH SIZE 3 YELL.03

60030082000 3

Unavailable

3

woodruff key DIN 6888 4x5x13

0888040050

$4.11

4

SPLIT BEAR.BUSH SIZE 1 RED 03

60030182000 1

Unavailable

4

SPLIT BEAR.BUSH SIZE 2 BLUE 03

60030182000 2

Unavailable

4

SPLIT BEAR.BUSH SIZE 3 YELL.03

60030182000 3

Unavailable

5

PRIMARY PINION 35 T 03

60032023035

$137.25

6

WASHER 33,2X46X2 03

60032009040

$3.08

7

HH-NUT M33X1,5 L/S WS46 03

60032009050

$15.89

8

BUSHING BOWL 28X32X13 03

60030026010

$14.02

20

CONNECTING ROD CPL.

60030013044

$235.05

21

BUSH.BOWL PACK. SIZE 1 RED 03

60030013051

Unavailable

21

BUSH.BOWL PACK. SIZE 2 BLUE 03

60030013052

Unavailable

21

BUSH.BOWL PACK. SIZE 3 YELL.03

60030013053

Unavailable

22

CYLINDER PIN 03

60030015061

$1.73

23

CONNECTING-ROD BOLT MJ10X1

60030015060

$19.81

30

PISTON D=100 03

60030007000 I

Unavailable

30

PISTON D=100 03

60030007000 II

Unavailable

31

CIRCLIP 22 X 1,6

58430074000

$9.62

32

PISTON PIN 22 X 13 X 60

58330833000

$46.27

33

OIL SCRAPER RING D=100MM 03

60030032000

$24.83

34

PISTON RING MIDDLE D=100MM 03

60030031000

$22.34

35

L-PISTON RING D=100MM 1,3MM

60030030000

$37.99
