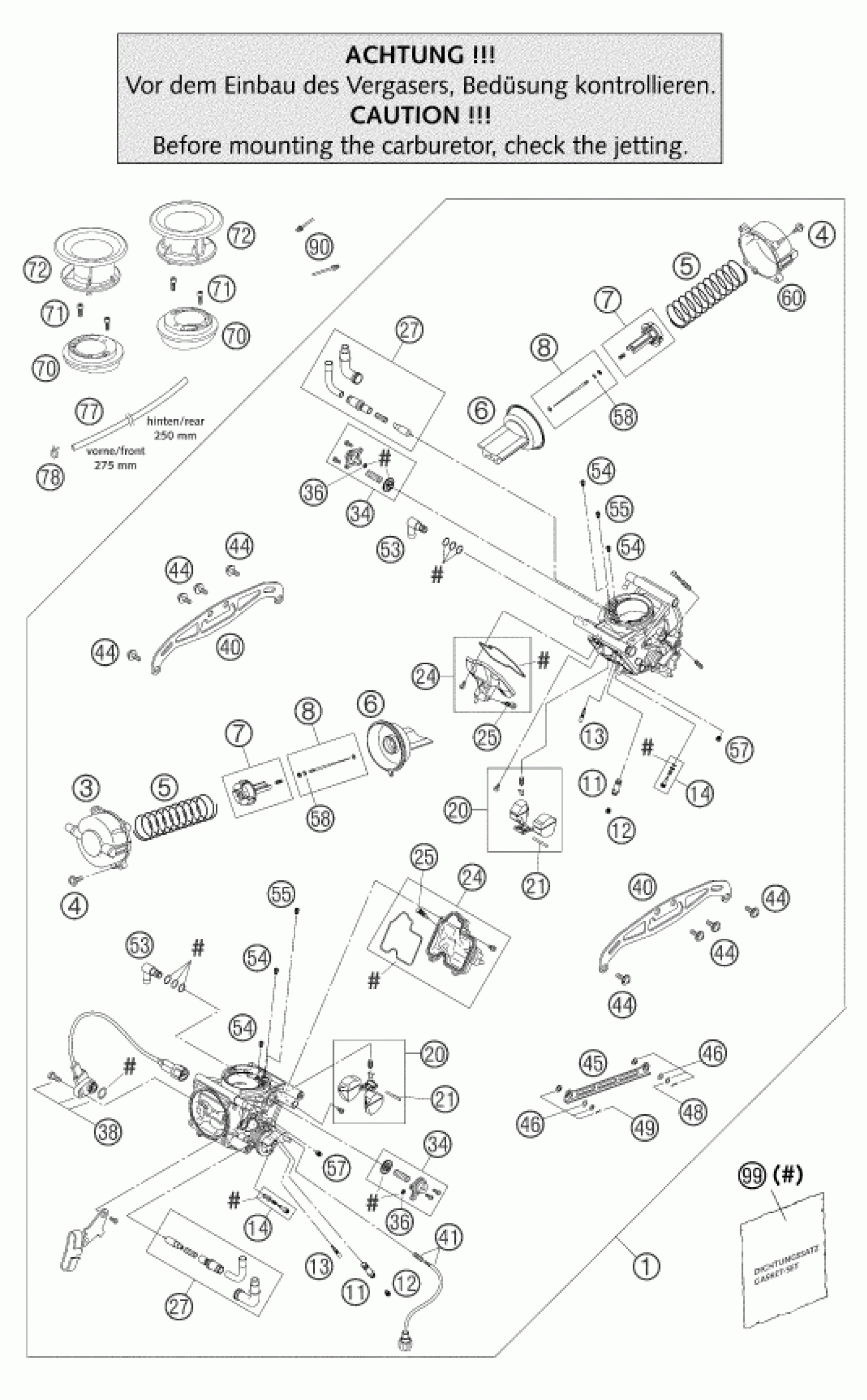

KTM 950 ADVENTURE SILVER 2003 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR CPL. LC8 CVRD 43 03

60031001000

Unavailable

3

DIAPHRAGM COV. KEIHIN FRONT 03

60031027000

Unavailable

4

SCREW KEIHIN 03

60031028000

$3.08

5

SPRING KEIHIN LC8

60031030000

$8.62

6

VACUUM PISTON CPL.

60031035000

$84.33

7

JED NEEDLE HOLDER CPL.

60031032000

$46.27

8

JET NEEDLE KEHIN CPL. NDFB

60031034000

$43.84

11

JET HOLDER

60031083000

$14.39

12

MAIN JET 150 KEIHIN

60031023150

Unavailable

12

MAIN JET 155 KEIHIN

60031023155

$12.03

12

MAIN JET 160 KEIHIN

60031023160

$14.95

12

MAIN JET 165 KEIHIN

60031023165

Unavailable

12

MAIN JET 170 KEIHIN

60031023170

Unavailable

13

IDLE JET 42 KEIHIN

60031007042

$20.56

14

ADJUST SCREW CPL.

60031017000

$12.43

20

FLOAT CPL.

60031009000

$63.01

21

ARM PIN FLOAT

57331008000

$2.05

24

FLOAT CHAMBER CPL.

60031011044

$73.46

25

DRAIN SCREW FLOAT CHAMBER

57331155000

$5.98

27

CHOKE CPL.

60031048000

$62.31

34

AIR CUT VALVE

60031090000

$61.95

36

U-RING

59031058000

$3.08

38

TPS-SENSOR CVRD43 440MM 02-05

60031077000

$129.15

40

CARBURETOR CONNECTING PLATE 03

60031091000

$29.37

41

STOP SCREW CPL.

60031025000

$76.14

44

SCREW KEIHIN 2003

60031094000

$3.85

45

LINK LEVER

60031056000

$38.60

46

LINK LEVER FIXING

60031087000

$6.93

48

WASHER LINK LEVER

57331087000

$2.05

49

SPLIT PIN 1,0X10

0094010103

$2.61

53

HOSE CONNECTOR

60031013000

$64.57

54

AIR JET 40 KEIHIN

60031037040

$13.94

54

AIR JET 70 KEIHIN

60031037070

Unavailable

54

AIR JET 80 KEIHIN

60031037080

$10.53

54

AIR JET 90 KEIHIN

60031037090

Unavailable

54

AIR JET 100 KEIHIN

60031037100

Unavailable

55

AIR JET 50 KEIHIN

60031047050

$10.53

57

STARTER JET 68 KEIHIN

60031051068

$13.50

58

CLIP FOR JET NEEDLE

54531629000

$3.08

60

DIAPHRAGM COV. KEIHIN REAR 03

60031027100

Unavailable

70

CARBURETOR TRUMPET SUPPORT 03

60031041000

$2.91

71

AH SCREW DIN0912-M 4X16

0912040163

$2.05

72

CARBURETOR TRUMPET 03

60031040000

$6.96

77

PVC-HOSE 6X9 MM PER METER

31007107001

$6.72

78

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

90

SLIDE STOP M5 03

60031029337

Unavailable

99

GASKET SET KEIHIN 03

60031099000

$192.13
