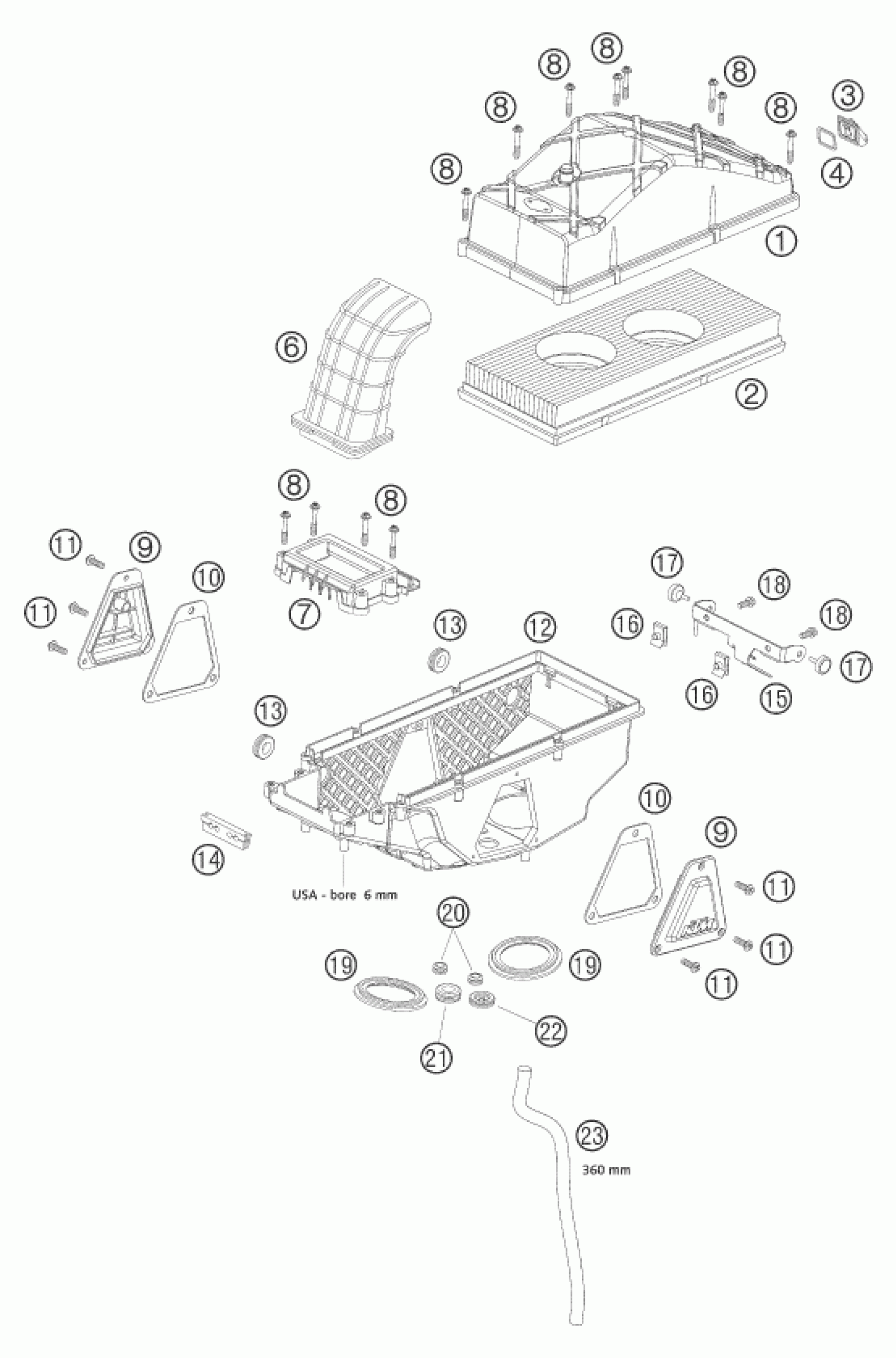

KTM 950 ADVENTURE SILVER 2003 AIR FILTER Diagram

#

Description
Price

1

AIRBOX COVER LC8 03

60006002000

$42.60

2

AIR FILTER LC8 03

60006015000

$49.64

3

CONNECTOR FOR SAS LC8 03

60006007000

$8.31

4

GASKET SAS CONNECTOR 03

60006007050

$1.49

6

INTAKE SNORKEL 03

60006040000

$27.32

7

AIRBOX FRONT PART LC8 03

60006004000

$12.28

8

SPECIAL SCREW K60X35/15 03

60006006000

$1.49

9

AIRBOX COVER L/S R/S 03

60006003002

$5.51

10

GASKET F. AIRBOX COVER L/S R/S

60006003050

$5.23

11

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

12

FILTER BOX LOWER PART LC8 03

60006001000

$43.82

13

RUBBER SLEEVE EPC HOSE

60006001040

$2.18

14

RUBBER SLEEVE CABLE PASSAGE 03

60006001030

$9.06

15

BRACKET PANEL SAS A. EPC 03

60006001020

$25.72

16

clip nut M6

54603048100

$4.11

17

Distance rupper airbox 03

60006001021

$2.05

18

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

19

RUBBER SLEEVE AIRBOX 03

60036045000

$40.66

20

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

21

RUBBER SLEEVE FUEL HOSE 03

60006001041

$3.08

22

Rubber grommet, standby gas se

60006001023

$5.23

23

HOSE 10X14 PER METER

57005020001

$15.89
