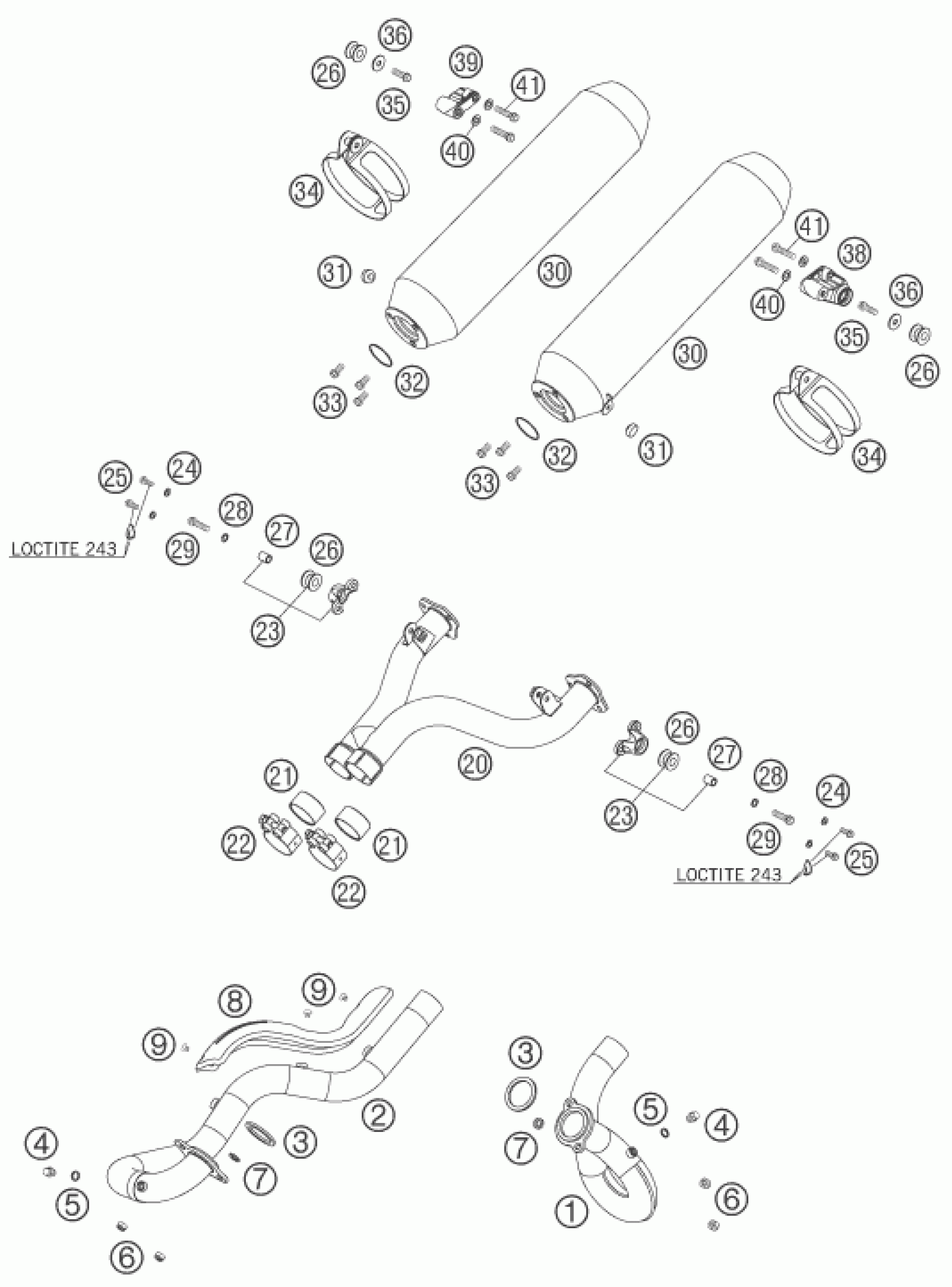

KTM 950 ADVENTURE S 2005 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE REAR 03

60005008000

$230.72

2

EXHAUST PIPE FRONT 05

60005007100

$234.23

3

GASKET 03

60005005000

$8.41

4

PLUG DIN0910-M 10X1

0910100003

$4.11

5

sealing ring DIN 7603 10x14x1

0603100141

$2.05

6

self-locking nut M8 Cu

51010086100

$3.08

8

THERMAL SHIELD 05

60005011000

$106.47

9

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

$1.49

20

DISTRIBUTOR TUBE LC8 03

60005048000

$430.84

21

GRAPHIT RING 42X47X25 03

60005005001

$18.60

22

EXHAUST CLAMP D=49MM 03

60005051000

$32.62

23

SILENCER BRACKET CPL. 2001

58405085044

$35.02

24

spring washer DIN 137 B - 6

0137060003

$2.05

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

26

damp. component silicone grey

54305068100

$8.31

27

Spacer bushing 8.4X12X16

56505069000

$4.11

28

LOCK WASHER 8MM

36003014000

$2.05

29

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

30

SILENCER LC8 03

60005083000

$682.07

31

RUBBER BUFFER

54308042000

$3.08

32

EXHAUST GASKET 03

60005005002

$6.54

33

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

34

CLAMP FOR SILENCER CPL. 03

60005095000

$35.02

35

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

36

WASHER DIN9021-A 8,4

0021080003

$1.49

38

SILENCER/HANDLE HOLDER L/S 03

60005085000

$40.94

39

SILENCER/HANDLE HOLDER R/S 03

60005086000

$41.51

41

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11
