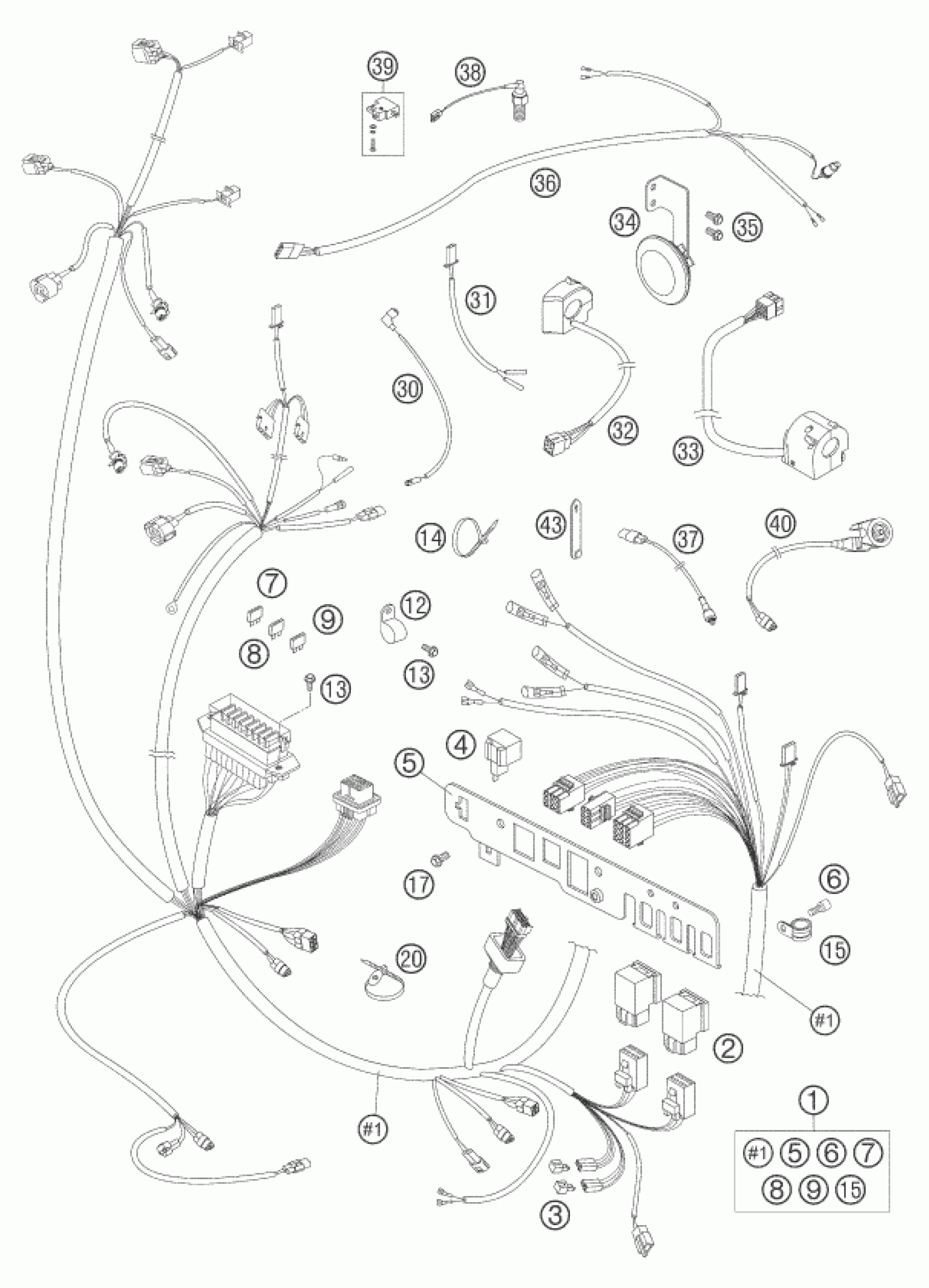

KTM 950 ADVENTURE S 2005 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS LC8 ADV.03

60011075000

Unavailable

2

STARTER RELAY '96

58411057000

Unavailable

3

DIODE S3H-15 97

58411096100

Unavailable

4

FLASHER UNIT 97

44611207200

Unavailable

5

BRACKET FOR PLUGS LC8 ADV. 03

60011083000

Unavailable

6

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

7

FUSE 5 A 2003

58011109105

Unavailable

8

Plug-in fuse, big 10A

58011109110

Unavailable

9

FUSE 15 A

58011109115

Unavailable

12

PVC CLAMP 17,4MM HEYCO 3381

57013070400

Unavailable

13

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

14

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

14

Cable tie 200/4.6mm black

44011076200

Unavailable

14

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

15

CLAMP RSGU 15/12

49007439000

Unavailable

17

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

20

CABLE TIE WITH PLUG 03

60011193000

Unavailable

30

OIL-PRESSURE SWITCH CABLE 03

60011092000

Unavailable

31

FLASHER CABLE FRONT 03

60011025000

Unavailable

32

START-STOP SWITCH/LIGHT SW. 03

60011074000

Unavailable

33

LIGHT SWITCH A.D. 03

60011070000

Unavailable

34

DC HORN 12V 03

60011060000

Unavailable

35

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

36

WIRING HARNESS REAR LC8 ADV.03

60011076000

Unavailable

37

CLUTCH SWITCH 03

58411049100

Unavailable

38

BRAKE LIGHT SWITCH REAR '98

50311051100

Unavailable

39

BRAKE LIGHT SW. FRONT CPL. 03

60011050000

Unavailable

40

SIDE STAND SWITCH 03

60011045000

Unavailable

43

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

43

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

43

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable
