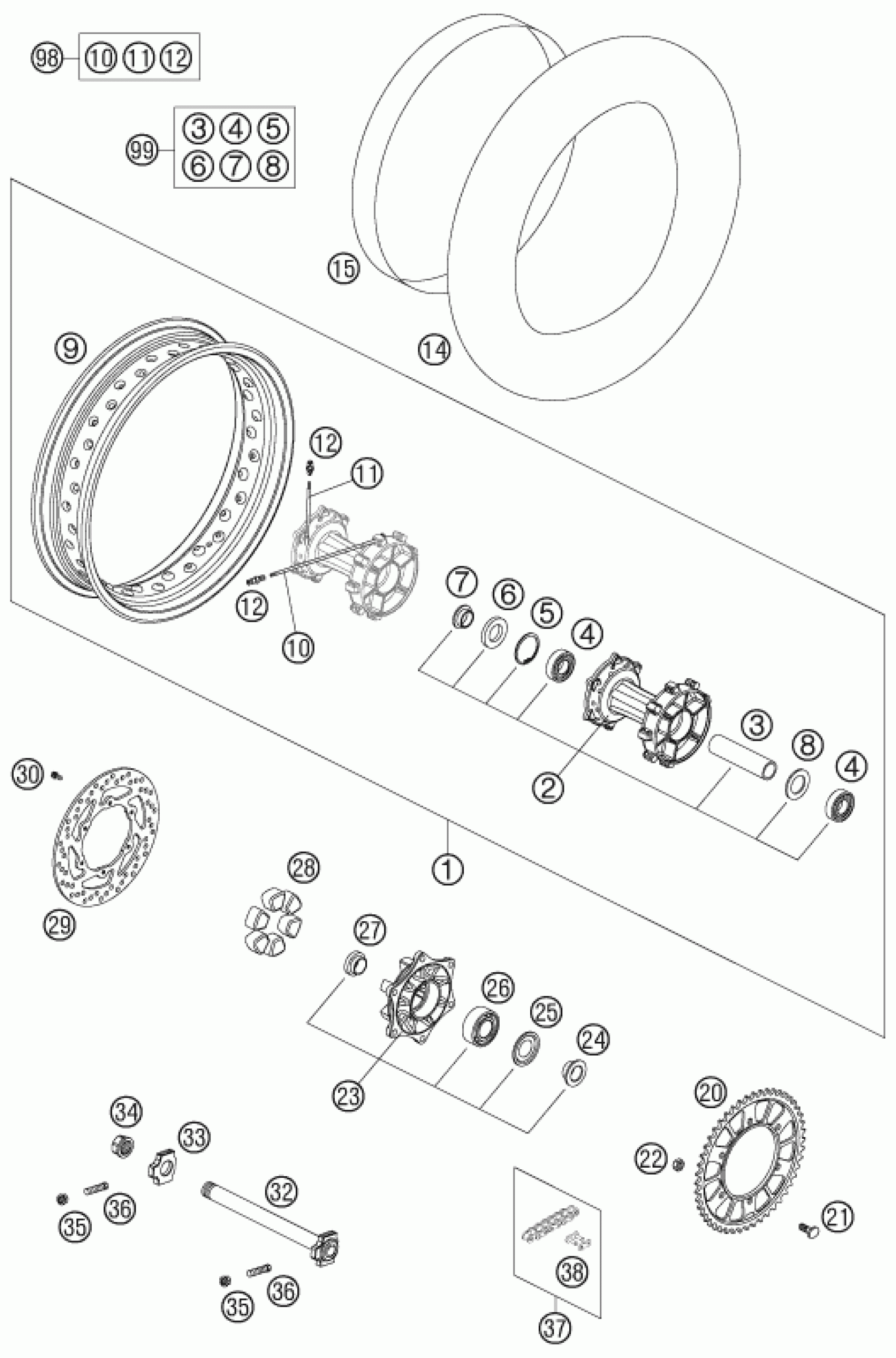

KTM 950 ADVENTURE S 2005 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL.4,25X18'' BLA.0

6001000114430

Unavailable

2

REAR HUB CPL. 03

60010010044

Unavailable

3

Bearing spacing tube L=124.8mm

60010011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

7

SPACER BUSH. REAR WHEEL R/S 03

60010013000

Unavailable

8

Spacer ring 03

60010015000

Unavailable

9

RIM 4,25X18 BLACK

6001007010030

Unavailable

10

SPOKE M5X213 19 DEG 03

60010171000

Unavailable

11

SPOKE M5X194 10 DEG 03

60010071000

Unavailable

12

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

13

TYRE 150/70-R18 M/C 70V MT90

60010074000

Unavailable

14

HOSE MD18 03

60010075000

Unavailable

15

RIM TAPE 18'' 50/2 0

60010073000

Unavailable

20

REAR SPROCKET 42-T 03

60010051042

Unavailable

20

REAR SPROCKET 45-T 03

60010051045

Unavailable

21

SPROCKET SCREW M10X1,25 03

60010052000

Unavailable

22

Hexag. nut DIN 980V M10X1.25 S

0980101253

Unavailable

23

SPROCKET SUPPORT CPL. LC8 03

60010050044

Unavailable

24

SPACER BUSH. SPROCKET SUPP. 03

60010012000

Unavailable

25

NILOS RING 7206 AVH 03

60010016000

Unavailable

26

BALL BEARING 3206 2RS1

0625032067

Unavailable

27

SPACER BUSH. SPR. SUPP. IN. 03

60010014000

Unavailable

28

Rubber damping block 91

54610459000

Unavailable

29

REAR BRAKE DISK D=240MM 03

60010060000

Unavailable

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

32

WHEEL SPINDLE REAR CPL. 03

60010081044

Unavailable

33

Chain tension adjuster, right,

60010084000

Unavailable

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

SPEC. SCREW M10X1,25X40 WS=10

50304040000

Unavailable

37

CHAIN 525 WITH MASTER LINK 03

60010165118

Unavailable

38

MASTER LINK FOR CHAIN 525 03

60010066000

Unavailable
