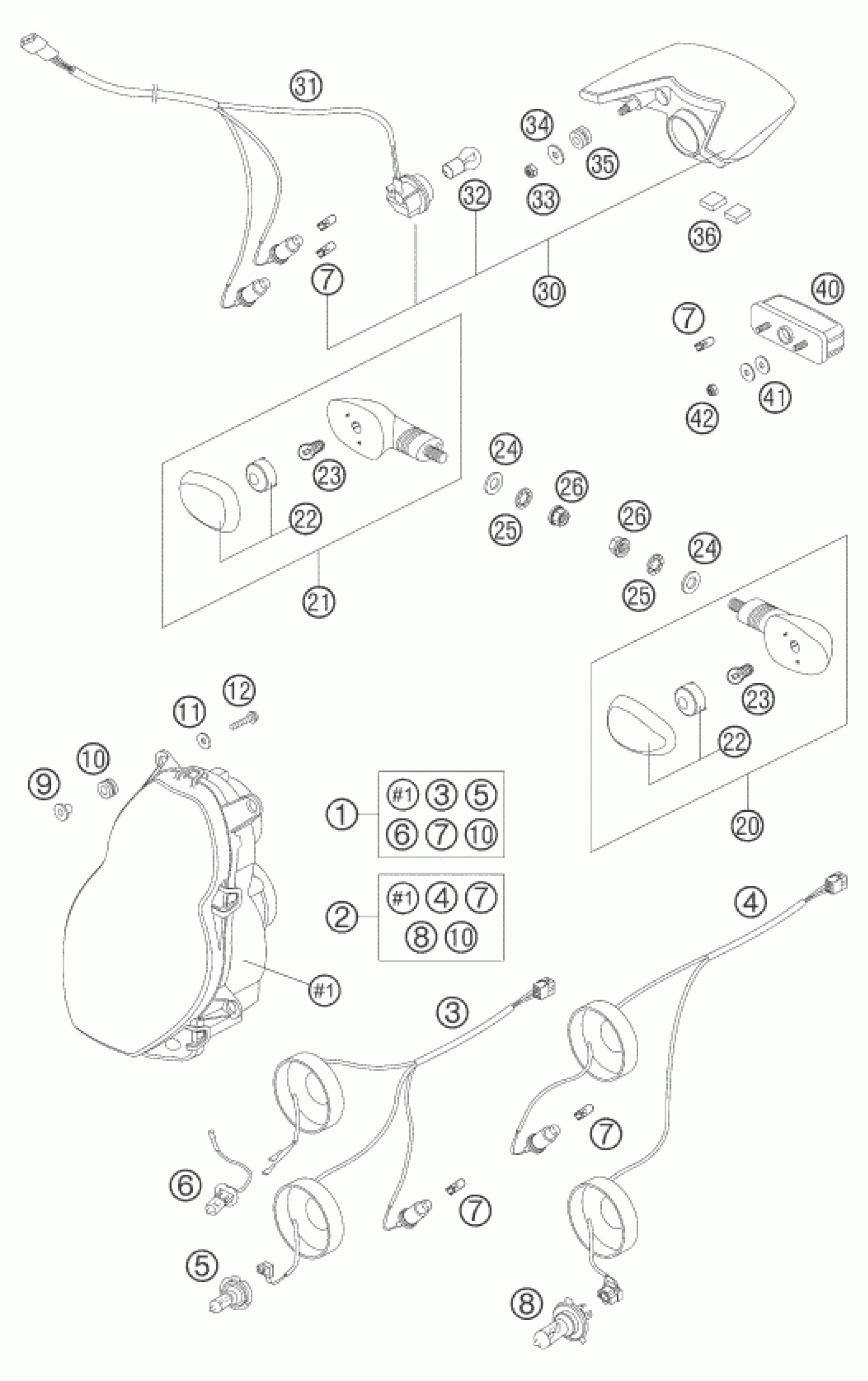

KTM 950 ADVENTURE S 2005 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT LEFT TRAFFIC 03

60014501000

Unavailable

3

HEAD LIGHT WIRING HARN. EU/GB

60014001050

Unavailable

4

HEAD LIGHT WIRING HARN. USA

60014801050

Unavailable

5

BULB H7 12V 55W

60014003100

Unavailable

6

BULB H3 12V 55W

60014003000

Unavailable

7

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

9

SPACER BUSHING HEAD LIGHT 03

60014007000

Unavailable

10

RUBBER GROMMIT BLACK

31008008000

Unavailable

11

washer DIN 9021 A - 5.3

0021050003

Unavailable

12

SCREW FOR PLASTIC 03

0016050253

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

58414025100

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

58414026100

Unavailable

22

FLASHER LENS L/S & R/S 02

58414028100

Unavailable

23

BULB 12V 10W (BA15S)

44111015100

Unavailable

24

washer DIN 125 A 10.5

0125100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT CPL. 03

60014040000

Unavailable

31

WIRING HARNESS REAR LIGHT 05

60011077000

Unavailable

32

BULB 12V 21W

60014048000

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

34

Washer DIN9021-A 6.4

0021060003

Unavailable

35

rubber grommet 16x10.8x3

58214069051

Unavailable

36

BUMP RUBBER 20X20X6 MM 03

60014040050

Unavailable

40

LICENSE-PLATE ILLUMINATION '98

58414047000

Unavailable

41

washer DIN 9021 A - 5.3

0021050003

Unavailable

42

Self locking nut DIN 985 M5

0985050003

Unavailable
