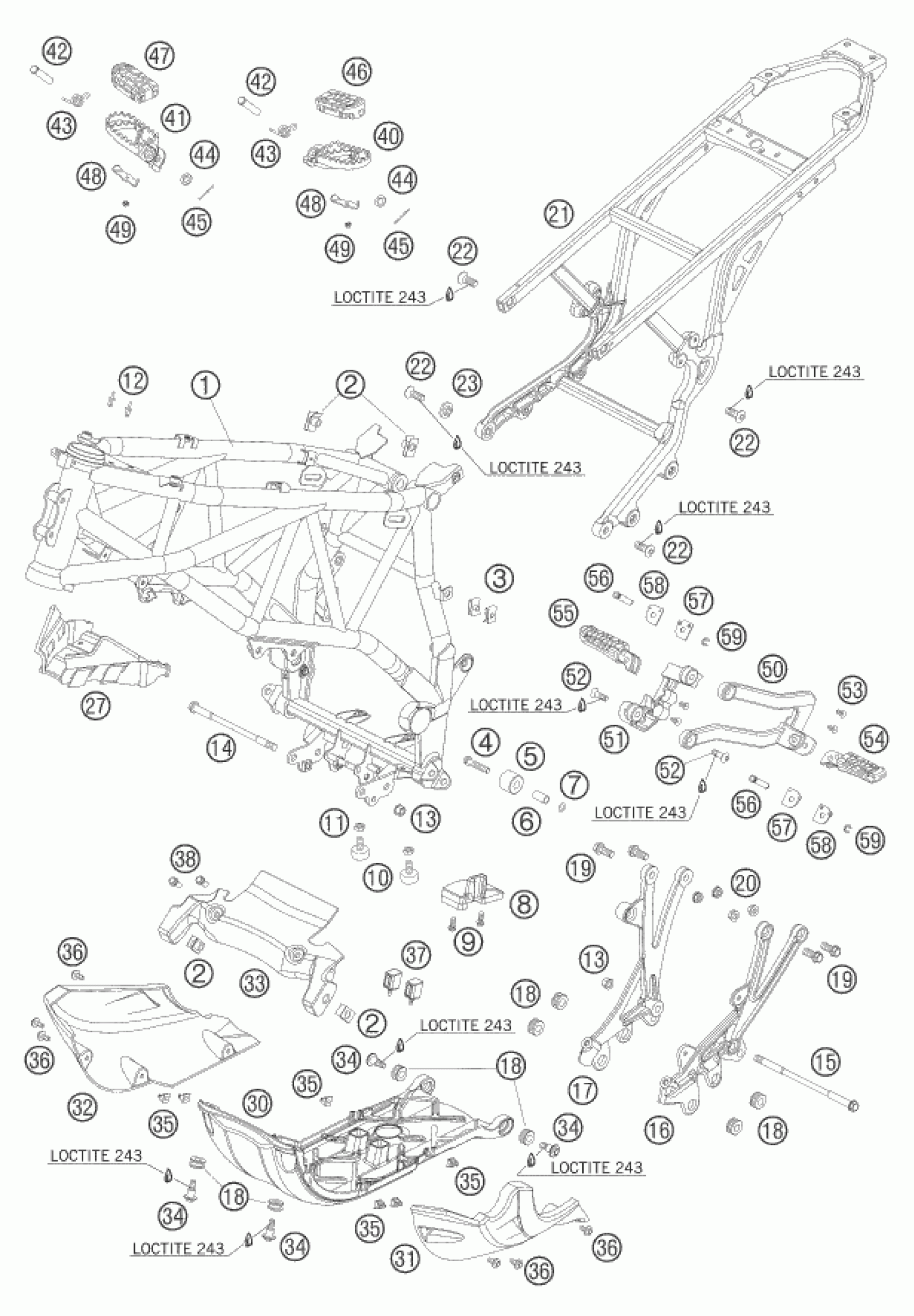

KTM 950 ADVENTURE S 2005 FRAME Diagram

#

Description
Price

1

FRAME LC8 ADVENTURE 03

6000300100030

$871.83

2

RANGE CHANGE METAL NUT M8

54603048000

$4.11

3

clip nut M6

54603048100

$4.11

4

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

5

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

6

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

7

LOCK WASHER 8MM

36003014000

$2.05

8

CHAIN SLIDING BLOCK

60004076000

Unavailable

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

10

STOP RUBBER M8

58303070000

$7.28

11

Hexagon nut DIN934 M8

0934080003

$2.05

12

PLASTIC CAP FOR M6 03

60003088000

$1.49

13

COLLAR NUT M10 WS=13

54630044000

$1.49

14

ENGINE BRAC. SCREW M10X172 03

60003013000

$14.58

15

ENGINE BRAC. SCREW M10X206 03

60003014000

$17.76

16

ENGINE SUPPORT LEFT 03

60003005000

$128.32

17

ENGINE SUPPORT RIGHT 03

60003006000

$159.69

18

RUBBER SLEEVE 03

60003098000

$4.11

19

HH COLLAR SCREW M10X24 WS=13

0015100243

$2.05

20

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

21

SUB FRAME ALUMINIUM LC8 03

60003002000

$490.72

22

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

$4.11

23

COLLAR BUSHING 10X15X25X4 03

60003001051

$6.07

27

SPLASH PROTECTOR FRAME 05

60003087000

$5.22

30

UNDERRIDE PROTECTION 03

60003091000

$113.87

31

UNDERRIDE PROTECTION LEFT 03

60003092000

$12.43

32

UNDERRIDE PROTECTION RIGHT 03

60003093000

$13.08

33

LOWER TANK HOLDER FRONT 03

60003094000

$92.01

34

COLLAR SCREW M8 03

60003097000

$4.11

35

CAGE NUT M6 SL 4MM 03

60003095000

$3.08

36

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

37

VIBRATION DAMPER 03

60003096000

$3.08

38

HH COLLAR SCREW M 8X16 WS=10

0015080163

$4.11

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

41

FOOT PEG R/S SILVER 02

59003041250

$43.66

42

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

washer DIN 125 A 10.5

0125100003

$2.05

45

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

46

FOOTREST RUBBER FRONT L/S 03

60003040010

$22.15

47

FOOTREST RUBBER FRONT R/S 03

60003041010

$22.15

48

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

49

Self locking nut DIN 985 M5

0985050003

$2.05

50

FOOTREST BRACKET REAR L/S 03

60003048000

$86.08

51

FOOTREST BRACKET REAR R/S 03

60003049000

$136.60

52

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

53

PLASTIC CAP SFL10

54403135000

$2.05

54

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

55

Footrest cmpl. r/s rear 03

60003051000

$61.89

56

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

57

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

58

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

59

retaining washer DIN 6799 - 6

0799060003

$1.49
