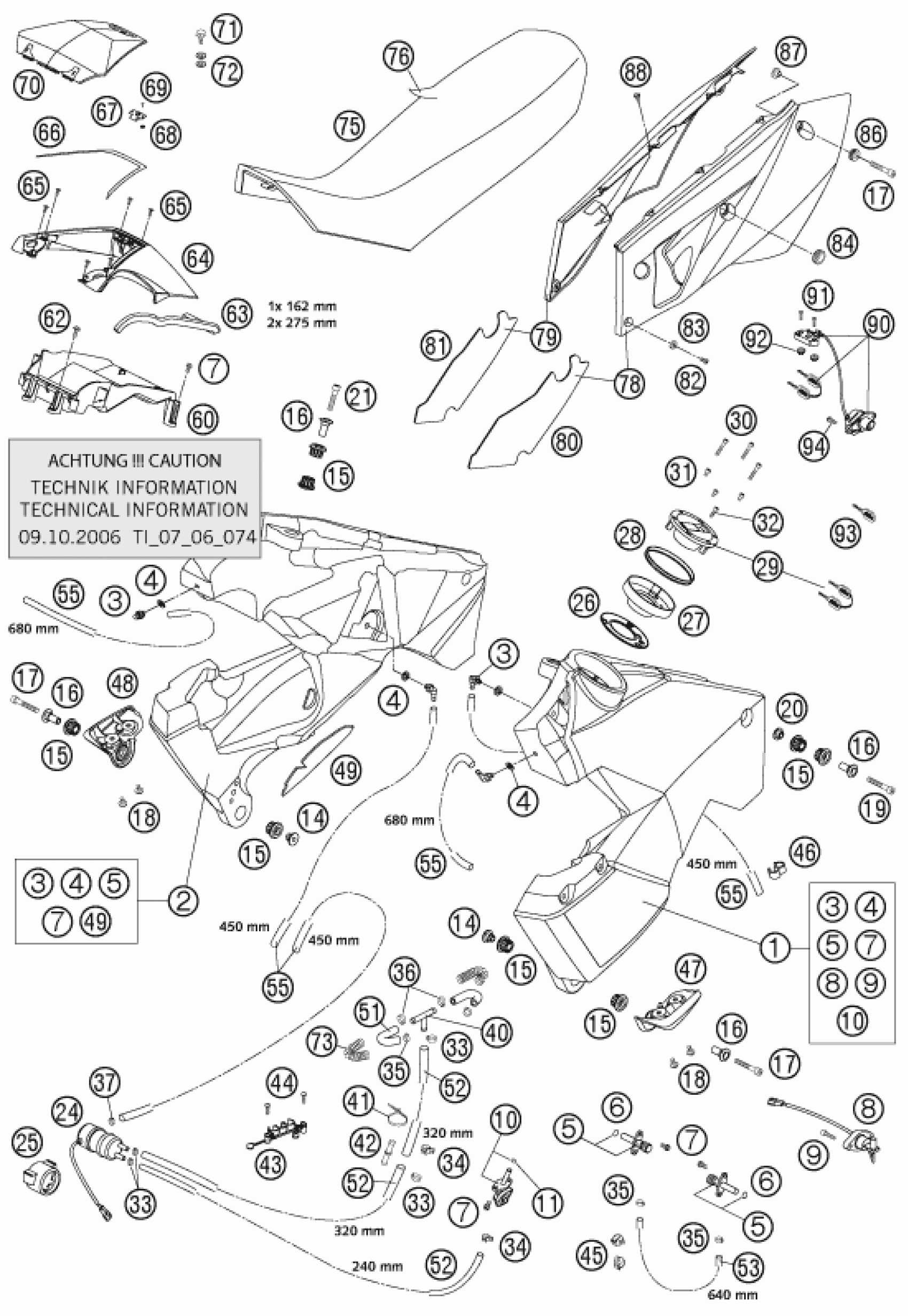

KTM 950 ADVENTURE BLACK LOW 2004 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK L/S CPL. BLUE 04

6000701304406

$1,457.73

1

FUEL TANK L/S CPL. BLACK 04

6000701304430

$1,457.73

1

FUEL TANK L/S CPL. ORANGE 03

6000701304470

$1,457.73

1

FUEL TANK L/S CPL. SILVER 03

6000701304484

Unavailable

2

FUEL TANK R/S CPL. BLUE 04

6000711304406

Unavailable

2

FUEL TANK R/S CPL. BLACK 04

6000711304430

Unavailable

2

FUEL TANK R/S CPL. ORANGE 03

6000711304470

$1,349.75

2

FUEL TANK R/S CPL. SILVER 03

6000711304484

Unavailable

3

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

4

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

5

FUEL COCK CPL. SM. RALLYE'96

58507003000

$26.55

6

O-RING 11X1,8 NBR 70

55007006200

$2.05

7

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

8

GAS-LEVEL SENSOR ADV. 2002

58207080000

$85.08

9

AH collar screw DIN 912 M5x16

0912050163

$1.49

10

GAS COCK MIKUNI ON/OFF 2001

50307005000

$96.39

11

O-RING 13,00X2,30

0770130023

$4.11

14

BEAR.BUSH.INSIDE L=15,5MM 03

60007062000

$8.13

15

TANK RUBBER BUSHING 03

60007065000

$7.28

16

BEARING BUSHING OUTSIDE 03

60007060000

$11.12

17

AH SCREW DIN912 M8X55

0912080553

$2.05

18

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

19

AH SCREW DIN912 M8X50

0912080503

$3.08

20

BEARING BUSHING INSIDE 03

60007061000

$4.11

21

AH collar screw DIN0912 M8x40

0912080403

$2.05

24

FUEL PUMP 04

60012088100

$189.54

25

FUEL PUMP HOLDER 03

60012088050

$14.72

26

SEAL. FLANGE F.TANK INSERT 03

60007008051

$6.54

27

TANK INSERT L/S

60007008050

$19.53

27

TANK INSERT R/S

60007108050

$19.53

28

SEAL. RING F. TANK INSERT 03

60007008052

$4.11

29

TANK PLUG CPL. 03

60007008000

$134.63

30

AH SCREW DIN0912-M 5X30

0912050303

$1.49

31

SHCS DIN 912 M5x8

0912050083

$1.49

32

AH SCREW DIN0912-M 5X12

0912050123

$2.05

33

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

$5.23

34

CLAMP STD DN14

00049140121

$1.49

35

CLAMP YDNAC 10128 12MM

58031005000

$3.08

36

VARIABLE ONE-EAR CLAMP 14,0MM

00050140706

$2.05

37

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

40

T-CONNECTOR 8MM 03

60007015000

$5.73

41

Cable tie 200/4.6mm black

44011076200

Unavailable

42

HOSE CONNECTOR 8MM 03

60007015010

$3.39

43

HOSE HOLDER TRIPLE 03

60011057000

$3.48

44

SCREW FOR PLASTIC D=5X18

0081500181

$2.05

45

WIRING HOLDER 16MM

57013072100

$1.49

46

CLAMP D=6/8MM, BLACK

55011022100

$2.05

47

TANK PROTECTOR L/S 03

60007013050

$3.93

48

TANK PROTECTOR R/S 03

60007113050

$3.64

49

THERMAL PROT.FOIL TANK R/S 03

60007095000

$24.68

51

FUEL PREFORMED HOSE 03

60007016000

$10.39

52

HOSE 7,5X13,5 PER METER

60007016001

Unavailable

53

HOSE 6X12 PER METER

60007116001

Unavailable

55

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

60

STORAGE BOX BOTTOM PART 03

60007023000

$17.55

62

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

63

EDGE PROTECTOR PER METER

58312085100

$22.52

65

SCREW FOR PLASTIC 50X12

0016050121

$2.05

66

GASKET F.STOR.BOX CENT.PART 03

60007019050

$1.82

64

STOR. BOX CENT.PART ORANGE 04

6000701900004

$131.18

64

STOR. BOX CENT. PART BLACK 04

6000701900030

Unavailable

64

STOR. BOX CENT. PART ORANGE 03

6000701900070

$134.93

64

STOR. BOX CENT. PART SILVER 03

6000701900084

$124.93

67

Past mount quick lock

45007040050

$4.11

68

WASHER DIN9021-A 3,2MM

0021030003

$1.49

69

DUMMY RIVET 3,2X10 ALU

0011321000

$1.49

70

COVER F. STORAGE BOX ORG 04

6000702000004

$95.31

70

COVER F. STORAGE BOX BLACK 04

6000702000030

$98.04

70

COVER F. STORAGE BOX ORANGE 03

6000702000070

$90.77

70

COVER F. STORAGE BOX SILVER 03

6000702000084

Unavailable

71

QUICK RELEASE PIN WITH RING 03

60007020030

$14.14

72

PLASTIC WASHER 03

60007020040

$1.49

73

PROTECTION SPRING FUEL HOSE

60007016050

$1.49

75

* SEAT 950 ADV. BLACK 03

60007040000

Unavailable

75

SEAT 950 ADV. ORANGE 04

6000704000004

$126.92

76

SEAT COVER BLACK 03

60007040050

Unavailable

76

SEAT COVER ORANGE 04

6000704005004

$41.88

93

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

78

SIDE COVER L/S REAR BLUE 04

6000804100006

Unavailable

78

SIDE COVER L/S REAR BLACK 04

6000804100030

$262.19

78

SIDE COVER L/S REAR ORANGE 04

6000804110070

$269.43

78

SIDE COVER L/S REAR SILVER 03

6000804100084

$262.19

79

SIDE COVER R/S REAR BLUE 04

6000804200006

Unavailable

79

SIDE COVER R/S REAR BLACK 04

6000804200030

Unavailable

79

SIDE COVER R/S REAR ORANGE 04

6000804210070

Unavailable

79

SIDE COVER R/S REAR SILVER 03

6000804200084

$269.43

80

THER.PROT.FOIL SI.COVER L/S 03

60008041050

$27.34

81

THER.PROT.FOIL SI.COVER R/S 03

60008042050

$38.79

82

AH SCREW DIN6912-M 6X16

0984060163

$2.05

83

SPECIAL WASHER D=16,5MM 03

60008045000

$3.08

84

RUBBER SLEEVE F.SEAT LOCK '99

58707050050

$3.08

86

RUBBER SLEEVE D=12MM

41001052000

$4.11

87

COLLAR BUSHING 8,2X12X20X9 03

60012008002

$4.11

88

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

90

SEAT LOCK LC8 ADV. 03

60007050000

$74.51

91

COU.SUNK SCR. AH ISO7380 M6X30

0738060301

$1.49

92

DISTANCE BUSH. 7X12X18X3,7 03

60008013050

$2.32

94

SCREW FOR PLASTIC D=5X18

0081500181

$2.05
