SHOCK ABSORBER DISASSEMBLED

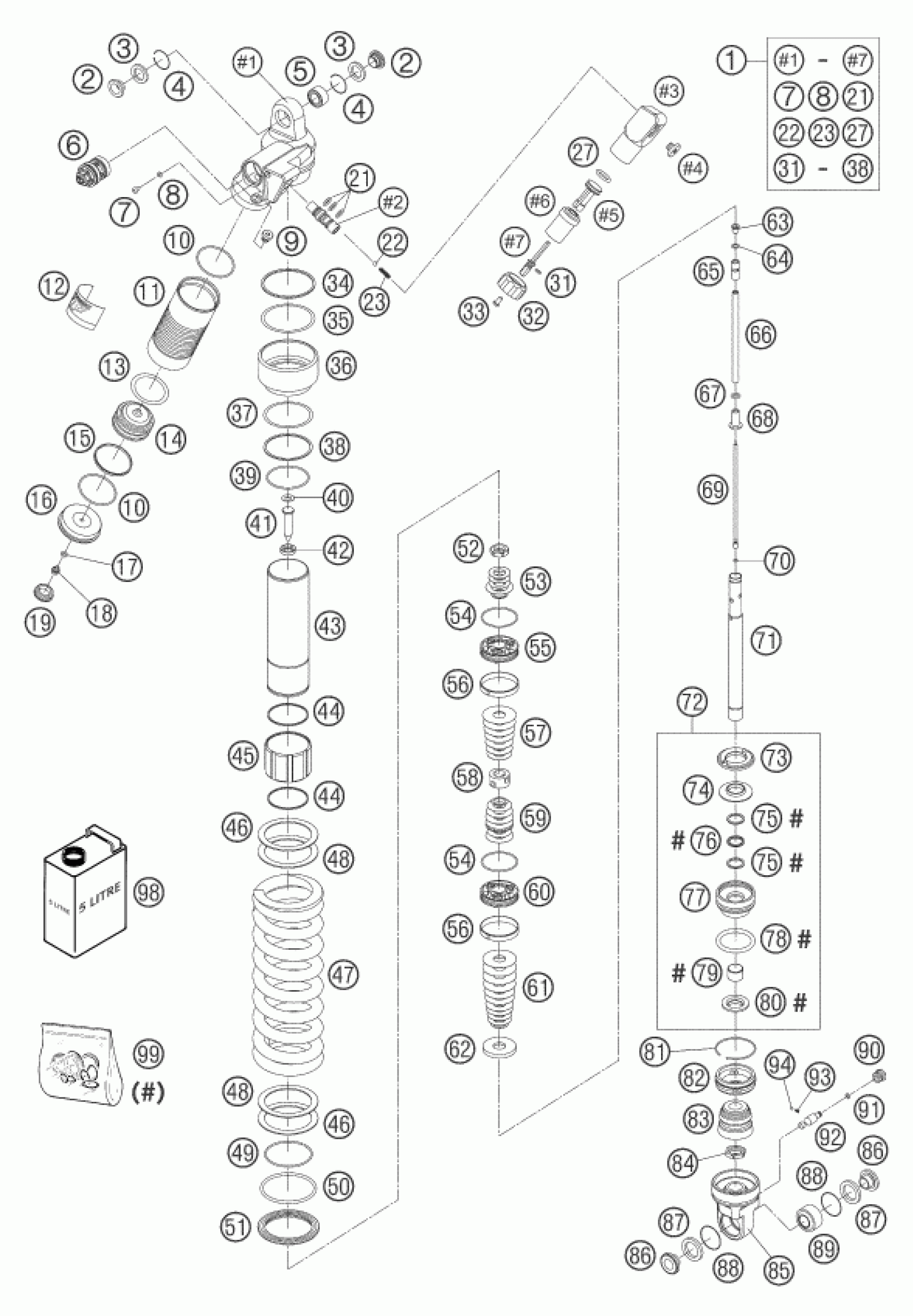

KTM 950 ADVENTURE BLACK LOW 2004 SHOCK ABSORBER DISASSEMBLED Diagram
#
1
PA cpl. KTM LC8
1200Y002
Unavailable
2
Bearing bush 14x15/18/24,5x10,
50180366
Unavailable
3
Seal ring 19,5x26x3
46180003
Unavailable
4
Round-wire snap ring 25x1
50180168
Unavailable
5
Ball joint bearing 15x25x13
50180005
Unavailable
6
50180213S4
Unavailable
7
Cross flat head screw M4x6
48600058
Unavailable
8
O-ring 3,7x1,6 NBR70
48600009
Unavailable
9
HS cylinder-head screw R1/8 l8
50180095
Unavailable
10
O-ring 48x2 NBR70 siliconized
46810016
Unavailable
11
RESERVOIR SCREW L=123,5 D=52
50180237
Unavailable
12
STICKER WP KTM
52000044
Unavailable
13
O-ring 41x5 Viton75
46180014
Unavailable
14
Piston 52mm reservoir
46180002
Unavailable
15
Pistonring 47,5x50,5x3,9
46180015
Unavailable
16
RESERVOIR CAP D=58
50180344
Unavailable
17
O-ring 5,28x1,78 NBR70 black
46810893
Unavailable
18
HS lock screw M5x6
36120151
Unavailable
19
Rubber cap do not open 22x5,5
46811208
Unavailable
21
O-ring 10x2 NBR70 siliconized
35480083
Unavailable
22
Steel ball d5
40540440
Unavailable
23
Spring (3,2) 17
46810332
Unavailable
27
O-ring 17x3 NBR70 siliconized
46810003
Unavailable
31
O-ring 6x1,5 NBR70
48600044
Unavailable
32
Adjuster PA black
50180381
Unavailable
33
HS flat head screw M5x10
46811771
Unavailable
34
Washer 64,6x70x1,4 support rin
50180370
Unavailable
35
O-ring 63,09x3,53 NBR70
50180369
Unavailable
36
PA outside ring 58.13/70x61.4/
50180371
Unavailable
37
O-ring 57,15x3,53 NBR70
50180372
Unavailable
38
Washer 58x63.4x1.4 support rin
50180373
Unavailable
39
O-ring 52x2 NBR70
50180097
Unavailable
40
spring washer 8,2x16x0,6
50180177
Unavailable
41
Needle 10.2x37
50180300
Unavailable
42
SCREW CAP M20x1, D=11
50180271
Unavailable
43
Tube 50x180 PDS
50180367
Unavailable
44
spreader ring 50X1,5
50180133
Unavailable
45
Spring guide 54,15x60x40
50180081
Unavailable
46
Intermediate washer spring 61,
50180114
Unavailable
47
SPRING 140-265 (62) D=15,0
91210022
Unavailable
47
SPRING 140-255 (62) D=15,0
91210028
Unavailable
48
Interm. ring spring ret. H=3.5
50180402
Unavailable
49
Round-wire snap ring 58,5x2
50180273
Unavailable
50
O-ring 66,27x1,78 Viton70
50180352
Unavailable
51
SPRING RETAINER D=80 2003
50180355
Unavailable
52
Piston rod nut 16x1
50180141
Unavailable
53
WASHER 16X21X1
50180210
Unavailable
53
Shim 21x36x0,25
50180209
Unavailable
53
Shim 16x28x0,2
50180054
Unavailable
54
O-ring 44x,17x1,78 Viton70
50180099
Unavailable
55
Piston 16,05x49,6x13,5 4,5/7
50180197
Unavailable
56
Piston ring 47,95x49,95x8
50180135
Unavailable
57
SHIM 16X32X0,30
50180074
Unavailable
57
SHIM 16X34X0,30
50180075
Unavailable
57
SHIM 16X36X0,30
50180076
Unavailable
57
SHIM 16X38X0,25
50180068
Unavailable
57
SHIM 16X40X0,25
50180069
Unavailable
57
SHIM 16X42X0,25
50180070
Unavailable
57
SHIM 16X44X0,20
50180062
Unavailable
58
SANDWICH BUSH D25XD16X14,5/D
50180269
Unavailable
59
SHIM 16X32X0,15
50180047
Unavailable
59
Shim 32,25x36x0,30
46811637
Unavailable
59
SHIM 16X22X0,10
50180008
Unavailable
59
SHIM 16X36X0,20
50180058
Unavailable
59
Shim 16x34x0,2 y5
50180057
Unavailable
59
Shim 16x32x0,2
50180056
Unavailable
59
Shim 16x21x0,30
50180035
Unavailable
60
Piston 16x49,6x13,5
50180311
Unavailable
61
Shim 16x22x0,30
50180036
Unavailable
61
SHIM 16X30X0,25
50180064
Unavailable
61
SHIM 16X32X0,25
50180065
Unavailable
61
SHIM 16X34X0,25
50180066
Unavailable
61
SHIM 16X36X0,20
50180058
Unavailable
61
SHIM 16X38X0,20
50180059
Unavailable
61
SHIM 16X40X0,25
50180069
Unavailable
61
SHIM 16X42X0,25
50180070
Unavailable
61
SHIM 16X44X0,25
50180071
Unavailable
62
SHIM REBOUND H3 '99
50180161
Unavailable
62
SHIM REBOUND H16 '03
50180401
Unavailable
63
BUSH M8X1
50180200
Unavailable
64
O-ring 7x1,5 Viton70 green
50180157
Unavailable
65
NEEDLE SEAT M8X1
50180201
Unavailable
66
Tube 5,5x138
50180363
Unavailable
67
O-ring 8x2 NBR70
48600049
Unavailable
68
Bush 5/8,2/7x9,5/16,8x23
50180279
Unavailable
69
Needle 4x161
50180364
Unavailable
70
O-ring 2,2x1,6 Viton75 green
46811265
Unavailable
71
PISTON ROD D=18 M16X1
50180362
Unavailable
72
ADAPTOR CPL. D=50, H=28,5
50180349S1
Unavailable
73
Rubber pad rebound 27x48x8 NBR
50180107
Unavailable
74
STEEL DISC 18,5X43,7X6
50180304
Unavailable
75
Washer 18x22,5x1,5 plastic
50180102
Unavailable
76
X-ring 18x2,62 Viton70
50180101
Unavailable
77
ADAPTOR D=50, H=28,5
50180349
Unavailable
78
O-ring 41x5 NBR70
50180103
Unavailable
79
Guide bushing 18x20x12
46180119
Unavailable
80
Dirt scarper 18mm
50180082
Unavailable
81
Round-wire snap ring 53x1,75
50180126
Unavailable
82
Cap 50,1x17,5 h6
50180165
Unavailable
83
Rubber pad 17,2x45,2x40 black
50180276
Unavailable
84
HH locking nut M18x1 h5 WAF24
50180283
Unavailable
85
Footpart M18x1 h54 natural
50180358
Unavailable
86
Bearing bush 14x16/21,8/29x14
50180365
Unavailable
87
Seal ring 22x32x4
50180159
Unavailable
88
Round-wire snap ring 32x1
50180175
Unavailable
89
Ball joint bearing 16x32x21
50180179
Unavailable
90
HH screw M14x9
50180281
Unavailable
91
O-ring 4x1,5 NBR70
50180222
Unavailable
92
ADJUSTING SCREW 80 DEG., L=39
50180280
Unavailable
93
SPRING D=2,9, L=6,2
40540602
Unavailable
94
Steel ball d3
40540603
Unavailable
98
SHOCK ABSORBER FLUID 5 LT '03
50180342S1
Unavailable
99
REPAIR-KIT GASKET 5018 PDS 03
R12008
Unavailable
