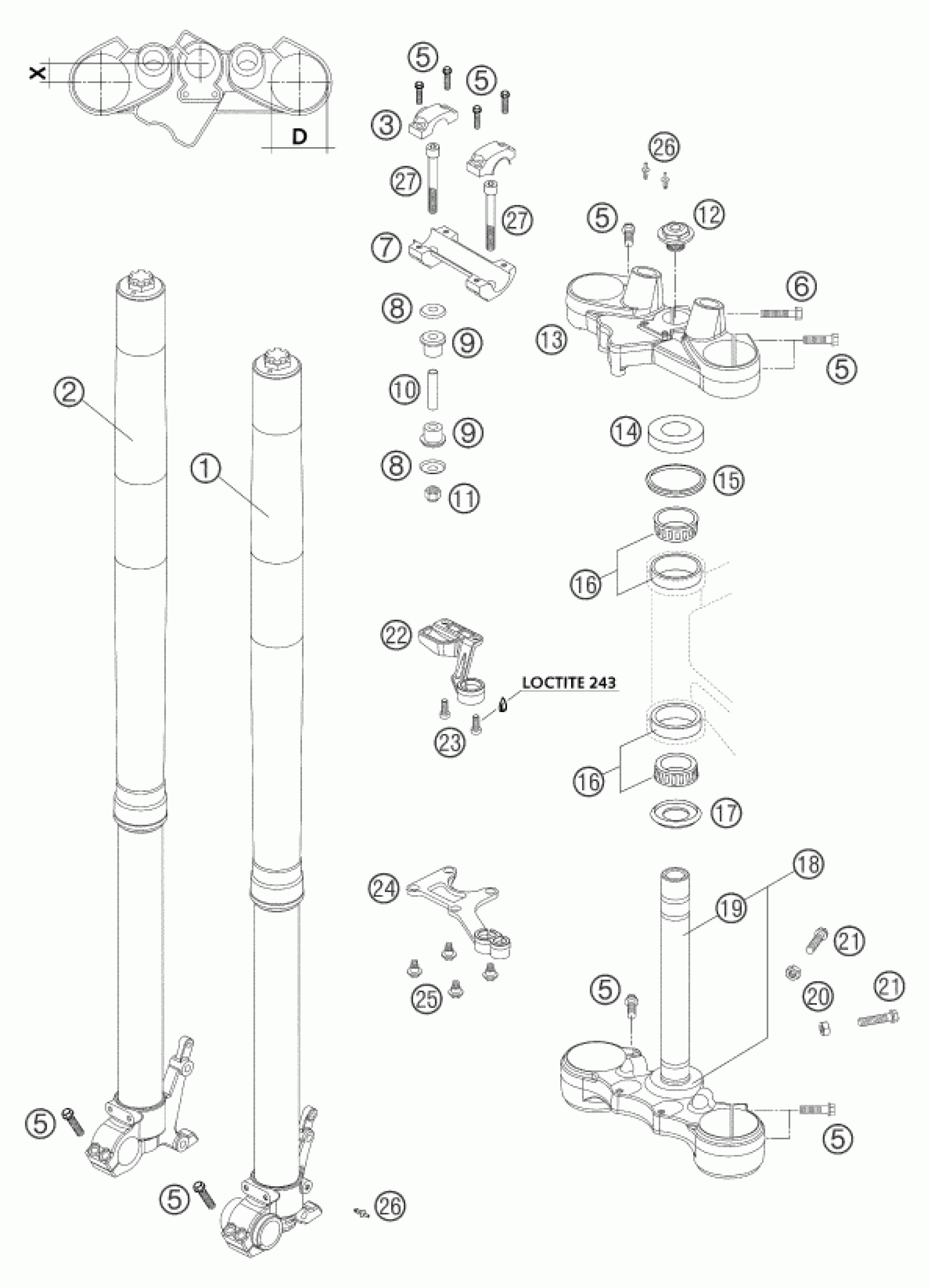

KTM 950 ADVENTURE BLACK LOW 2004 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

3

HANDLEBAR CLAMP D=28MM 2000

59001038200

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

Unavailable

6

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

1

FORK LEG L/S WP48 ADV.S 04

1418Y759LS

Unavailable

1

FORK LEG L/S WP48 ADV. 04

1418Y756LS

Unavailable

2

FORK LEG L/S WP48 ADV.S 04

1418Y759RS

Unavailable

2

FORK LEG R/S WP48 ADV. 04

1418Y756RS

Unavailable

7

HANDLEBAR SUPPORT 28MM SC'99

59001039100

Unavailable

8

washer 10.5x32x2

56401042000

Unavailable

9

rubber bushing

56401040000

Unavailable

10

SPACER TUBE 10,2X12X44

56401041100

Unavailable

11

SELF LOCK.NUT DIN0982-M10 HIGH

0982100003

Unavailable

12

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

13

TOP TRIPLE CLAMP X=18MM/D=54MM

60001034018

Unavailable

14

STEERING HEAD COVER

54201086000

Unavailable

15

STEARING HEAD GASKET TOP

54601184000

Unavailable

16

TAPERED ROLLER BEARING CPL.

54201081000

Unavailable

17

O-RING SUPPORT W. SEALING LIP

54601084100

Unavailable

18

BOT.TRIPLE CLAMP CPL D=60MM

60001032018

Unavailable

19

FORK TUBE LC8 ADV 03

60001033000

Unavailable

20

Hexagon nut DIN934 M8

0934080003

Unavailable

21

HH SCREW DIN0933-M 8X25

0933080253

Unavailable

22

BRAKE HOSE GUIDE TOP 03

60001079000

Unavailable

23

AH SCREW DIN6912 M6X16 SL

0012060164

Unavailable

24

BRAKE HOSE GUIDE LOWER 03

60008019000

Unavailable

25

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

26

PLASTIC CAP FOR M6 03

60003088000

Unavailable

27

AH SCREW DIN6912-M10X70

0984100703

Unavailable
